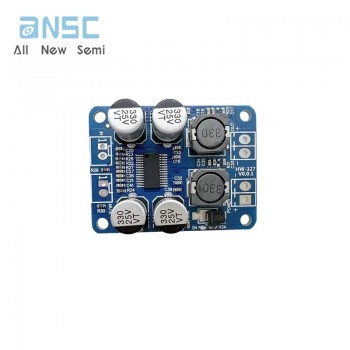

TPA3118 PBTL mono digital power amplifier board 60W
Manufacturer
Manufacturer Product Number
TPA3118
Description
TPA3118 Mono Amplifier Module
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
TPA3118 Mono Amplifier is a Class D stereo high-efficiency digital amplifier that can drive speakers up to 60W/8Ω. The advanced oscillator/PLL circuitry of the TPA3118 mono amplifier provides a variety of switching frequency options to avoid AM interference. TPA3118 mono amplifiers are fully failsafe with short-circuit and thermal protection, as well as over-voltage, under-voltage, and DC protection.
Product Pin Description
| Pin Name | Description |
| Audio In(+) | Audio Input Positive edge |
| Audio In(-) | Audio Input Negative edge |
| Mute (Short Circuit Port) | Short circuit Jumper circuit for active Mute |
| Power In (VCC/+) | 4.5v-24v DC power VCC |
| Power In (GND/-) | 4.5v-24v DC power Ground |
| Speaker Out(-) | Speaker Negative Output |
| Speaker Out(+) | Speaker Positive Output |
Product Features
Features of the TPA3118 mono amplifier module
Operating voltage: wide supply range 4.5V to 24V DC
Multiple switching frequencies
Avoid AM
Master-slave synchronization
Up to 1.2MHz switching frequency
Feedback power stage architecture
Differential and single-ended inputs
Stereo and mono modes with single filter mono configuration
Integrated self-protection circuitry
Overvoltage
Undervoltage
Overtemperature
DC detection
Short circuit with error reporting
Dimensions (L x W x H) cm 13 x 11 x 6
Product Overview
| The TPA3118 device is a highly efficient Class-D audio amplifier that integrates 120mΩ and allows output currents up to 7.5A. The device can be configured for either master or slave operation by using the SYNC pin, which helps prevent audible beats and prevents audible beat noise. An internal ADC is used to detect 8 input states. The first four stages set the GAIN to a gain of 20, 26, 32, 36 dB in master mode, respectively, while the subsequent four stages set the GAIN to a gain of 20, 26, 32, 36 dB in master mode, respectively. |
| The TPA3118 features a shutdown mode of operation designed to reduce supply current to an absolute minimum level during periods of non-use power conservation. |
| The TPA3118 includes a full set of carefully designed protection circuits to improve system design efficiency and protect the device from any permanent faults due to short circuits, overloads, overtemperature, and undervoltage. |
Interface diagram
The interface is very simple. Connect the Power and audio input together. Users can connect speakers directly at the amplifier output.
Product Applications
Applications of TPA3118 mono amplifier
Micro components, speakers and bases
Automotive market
CRT TVs
Consumer audio applications
Product Photos
