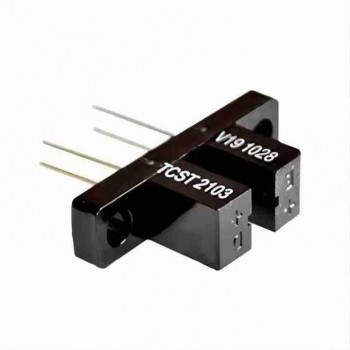

Optical sensor Optical switch output module TCST2103
Manufacturer
Manufacturer Product Number
TCST2103
Description
Optical sensor Optical switch output module TCST2103
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Sensing distance 3.1 mm
You can do induction
The output is configured with phototransistor
Current - positive (If) 60mA
Collector (Ic) (max) 4mA
Collector voltage breakdown (Max.) 70V
Response time 10μs, 8μs
Mounting through hole
Package/case slotted module, 4-lead double row
Type unamplified
Operating temperature -55 ° C to 85 ° C
Material: Metal
Dimensions: 28 x 25 mm
Color: Black
Note: Light shooting and different displays may cause the color of the item in the picture to be slightly different from the real thing.
Product Description
| Type | Description |
| PART# | TCST2103 |
| Datasheet | TCST2103/2202/2300 |
| Standard Packaging | 1,020 |
| Category | Sensor, Transmitter |
| Family | Optical Sensor - Photointerrupter - Slot Type - Transistor Output |
| Series | Tubing |
| Packaging | / |
| Sensing Distance | 3.1mm |
| Sensing Method | Conductive |
| Output Configuration | Phototransistor |
| DC Forward Current (lf) | 60mA |
| Current Collector (Ic) (Maximum) | 4mA |
| Voltage Collector-Emitter Breakdown (Maximum) | 70V |
| Response Time | 10μs, 8μs |
| Mounting Type | Through-hole |
| Package/Case | Slotted Module, 4-lead Double Row |
| Type | Unamplified |
| Operating Temperature | -55°C to 85°C |
