Magnetic induction Angle measurement sensor module 12bit high precision AS5600 Magnetic encoder
Manufacturer
Manufacturer Product Number
AS5600
Description
AS5600 high-precision 12-bit angle sensor module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
1. Made of KB-A grade FR-4 glass fiber board, thickness 1.6mm, the board surface is flat and not easy to bend. Each PCB board is tested by flying probe before leaving the factory, and the quality is reliable.
2. Non-contact magnetic induction angle measurement module.
High accuracy, multiple output modes, IIC, PWM, voltage, etc.
3. AS5600 is also equipped with intelligent low power mode, which automatically reduces power consumption.
The input pin (DIR) selects the output polarity rotation direction.
Product Parameters
| VCC | 3.3V |
| GND | Power ground |
| Out | PWM/analog voltage output |
| DIR | Rotation direction (ground = clockwise value increases; VCC = clockwise value decreases) |
| SCL | IIC communication clock line |
| SDA | IIC communication data line |
| GPO | Mode selection (internal pull-up, ground = programming mode B) |
Instructions for use
VCC-3.3V
GND-power ground
Out-PWM/analog voltage output
DIR rotation direction (ground = clockwise value increase;
connect VCC = clockwise value decrease)
SCL-IIC communication clock line
SDA-IIC communication data line
GPO--mode selection (internal pull-up, ground = programming mode B)

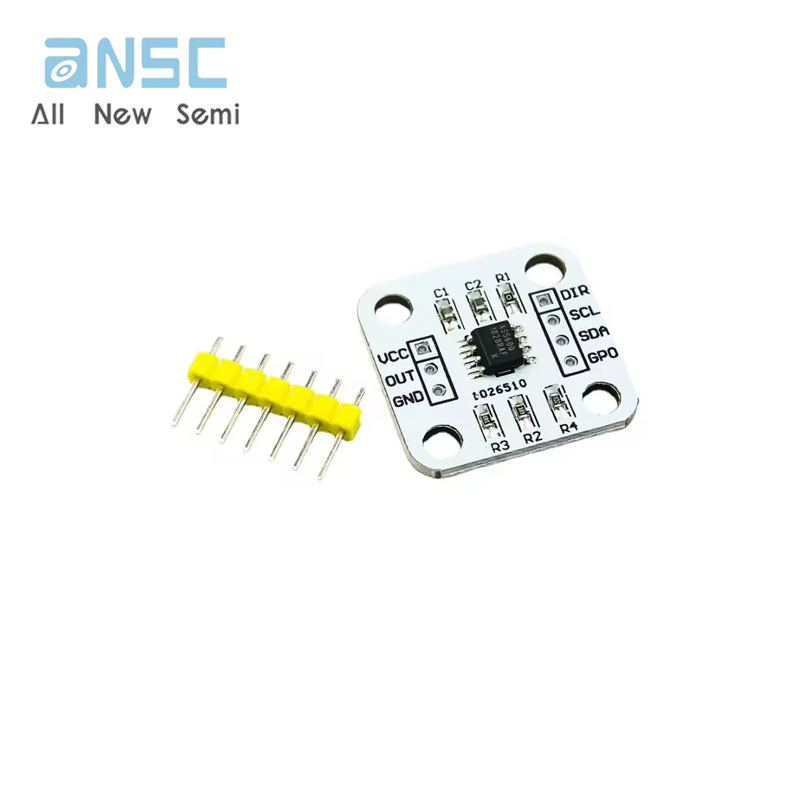

Product Photos

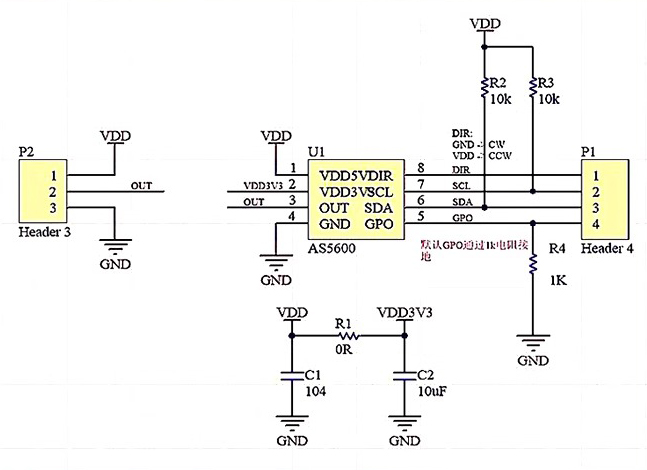

Product Schematic

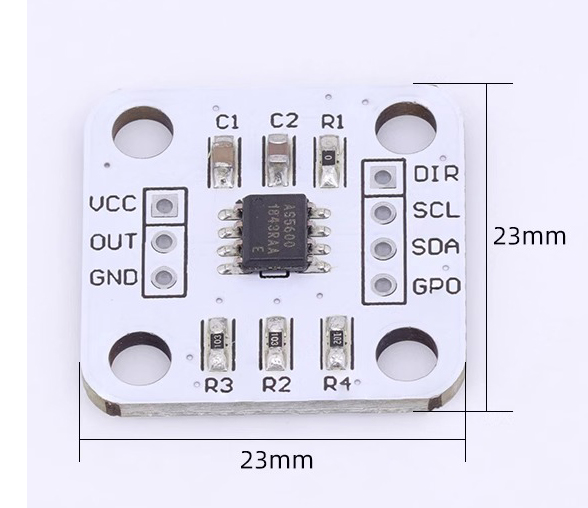

Product size
