2-channel 5V high-level solid-state relay module with fuse solid-state relay 250V2A

Product Introduction

2-channel 5V low-level solid-state relay with fuse 250V 2A, can be used for circuit control switch.

Product Parameter

Supply voltage: DC5V Supply current: 160MA

Input control signal voltage: This module is triggered by a high level, and the triggering conditions are as follows

① High level 3.3-5V triggers the relay to work after the load circuit is energized;

② Low level 0-2.5V triggers the relay to disconnect the load circuit and cut off power.

Load voltage: 250VAC Load current: 2A

Product features

(1) The product has short-circuit protection, overload protection, and overheating protection functions.

(2) Two relays can trigger and control the load circuit separately, and each relay has a status indicator light. When the relay is closed, the LED light will be on, otherwise it will not be on

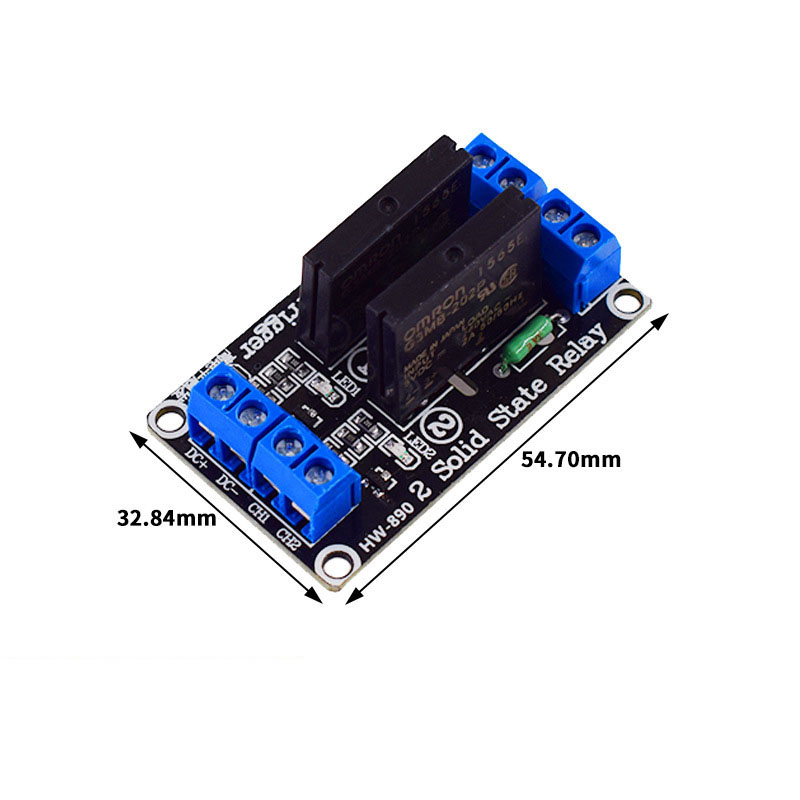

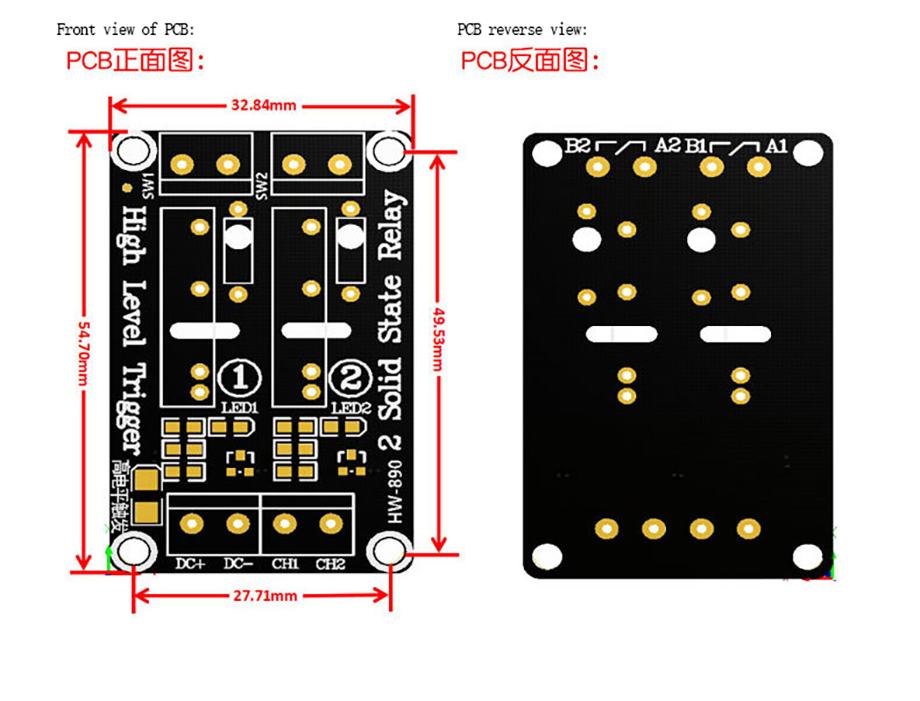

Product Size

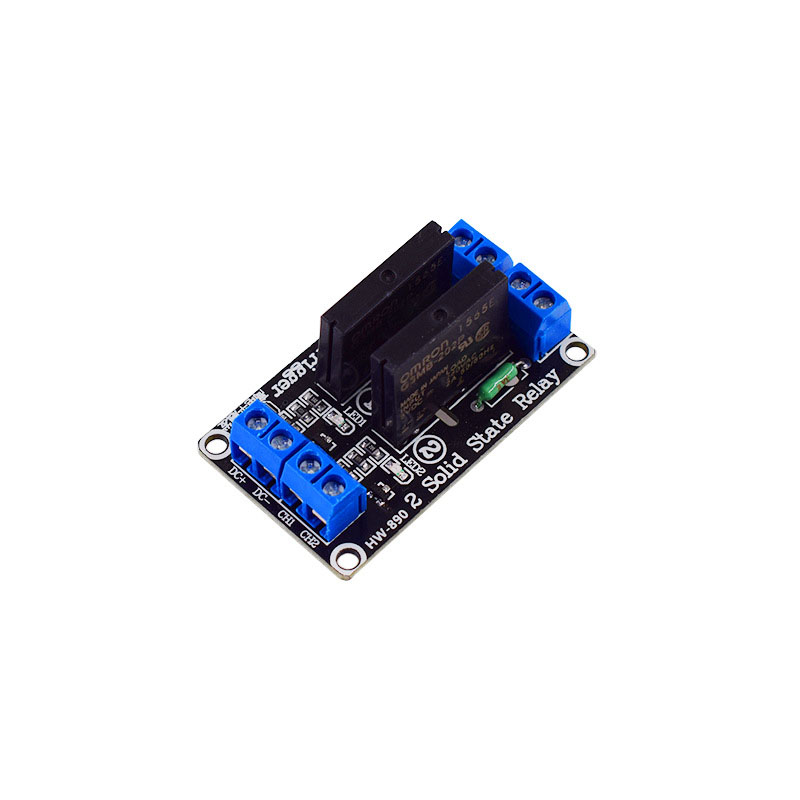

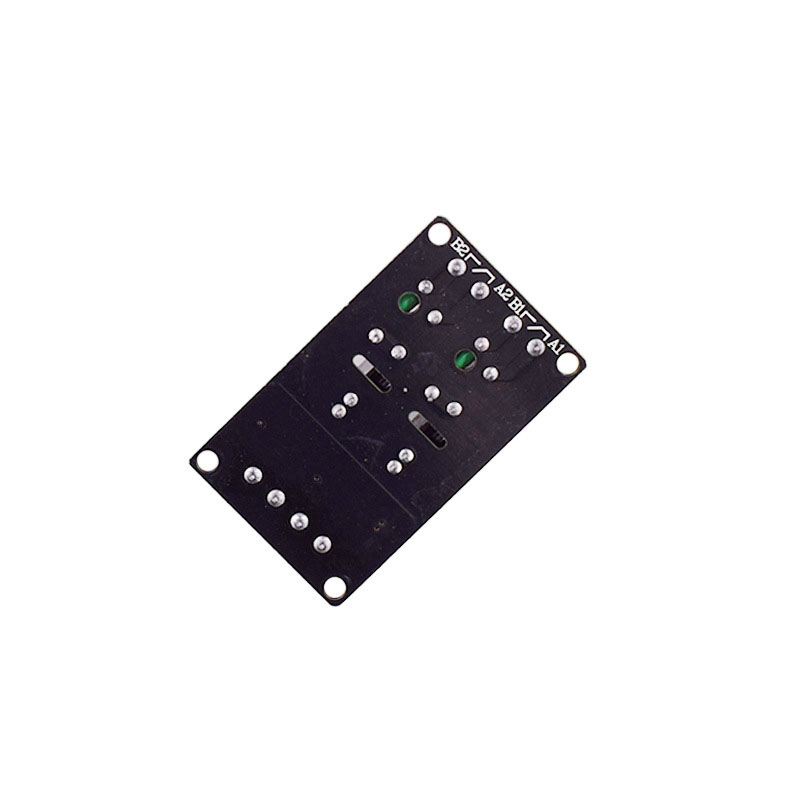

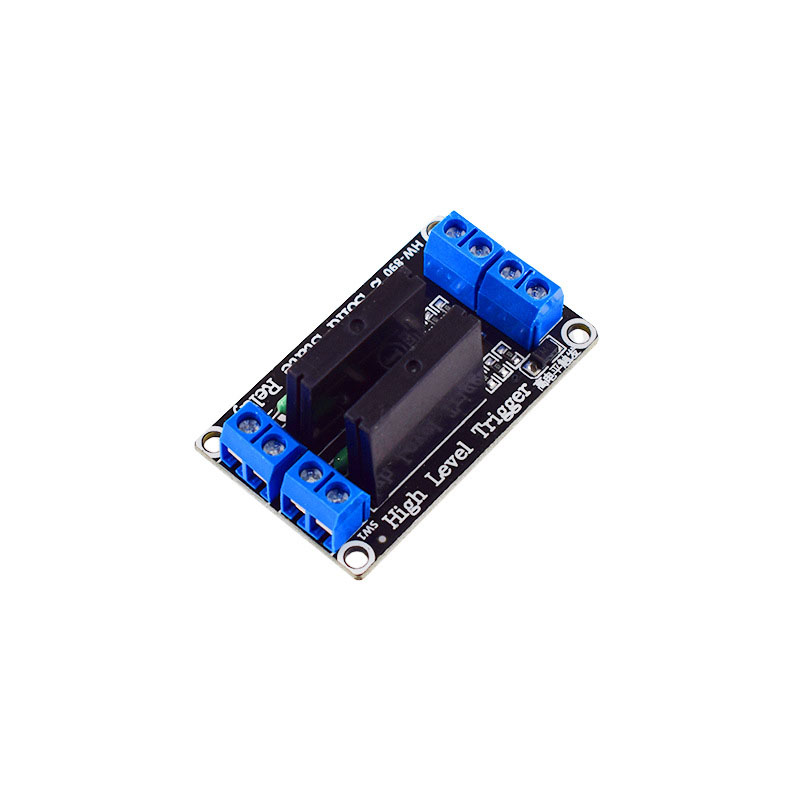

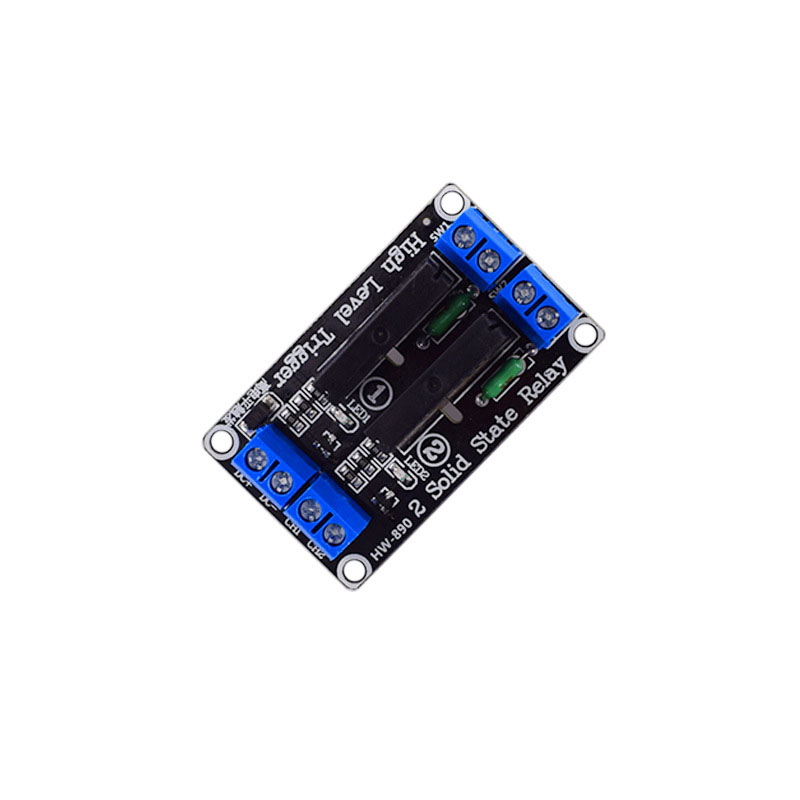

Product Show
