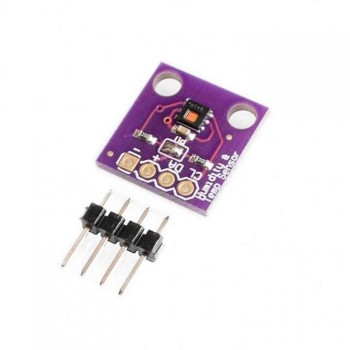

GY-213V-HDC1080 high precision temperature and humidity sensor module
Manufacturer
Manufacturer Product Number
GY-213V-HDC1080
Description
GY-213V-HDC1080 high precision temperature and humidity sensor module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Introduction: The HDC1080 is a digital humidity sensor that combines a temperature sensor with a high-precision sensor. It offers extremely low power consumption and operates over a wide power supply range. It provides a low-cost, low-power alternative for many common applications. This humidity and temperature sensor is factor-calibrated. |
| Product Parameters: 1. Relative humidity accuracy ±2% (typical) 2. Temperature accuracy ±0.2°C (typical) 3. Excellent stability in high humidity environments 4. 14-bit measurement resolution 5. 100nA sleep mode current 6. Average supply current: -710nA @ 1 sample per second, 11-bit relative humidity measurement -1.3uA @ 1000 samples per second, 11-bit relative humidity and temperature measurement 7. Supply voltage range 2.7V to 5.5V. 8. I2C interface Pin Description: GND: Ground VCC: 3.3V SDA: IIC data signal line SCL: IIC clock signal line |
| Applications: HVAC systems Smart thermostats and room monitors White goods Printers Handheld meters Medical equipment Wireless sensors |
