CH340E MSOP10 USB to TTL module can be used as a Pro mini downloader

Product Parameters

Product Name: CH340E MSOP10 USB to TTL Module

Product size: 15.7MM * 15.7MM * 1.6MM (length X width X height)

Color: Green

Product weight: G (including packaging)

Material: FR4+electronic component

Packaging: Single module electrostatic bag packaging

Product Introduction

Application case:

Not only does it have a power light PWR, but it also has TXD and RXD indicator lights, making it easy to intuitively understand whether the product is working without instruments;

2. Supports WINDOWS 98/ME/2000/XP/Server 2003/VISTA/Server 2008/Win7/Win8 32-bit/64 bit/Win10 64 bit;

3. Small size and high performance

4.3.3V/5V arbitrary selection

5. Micro USB interface data cable

6. Equipped with a 3.3V voltage regulator chip, it works super stably and is compatible with downloading and debugging 5V and 3.3V microcontroller programs!

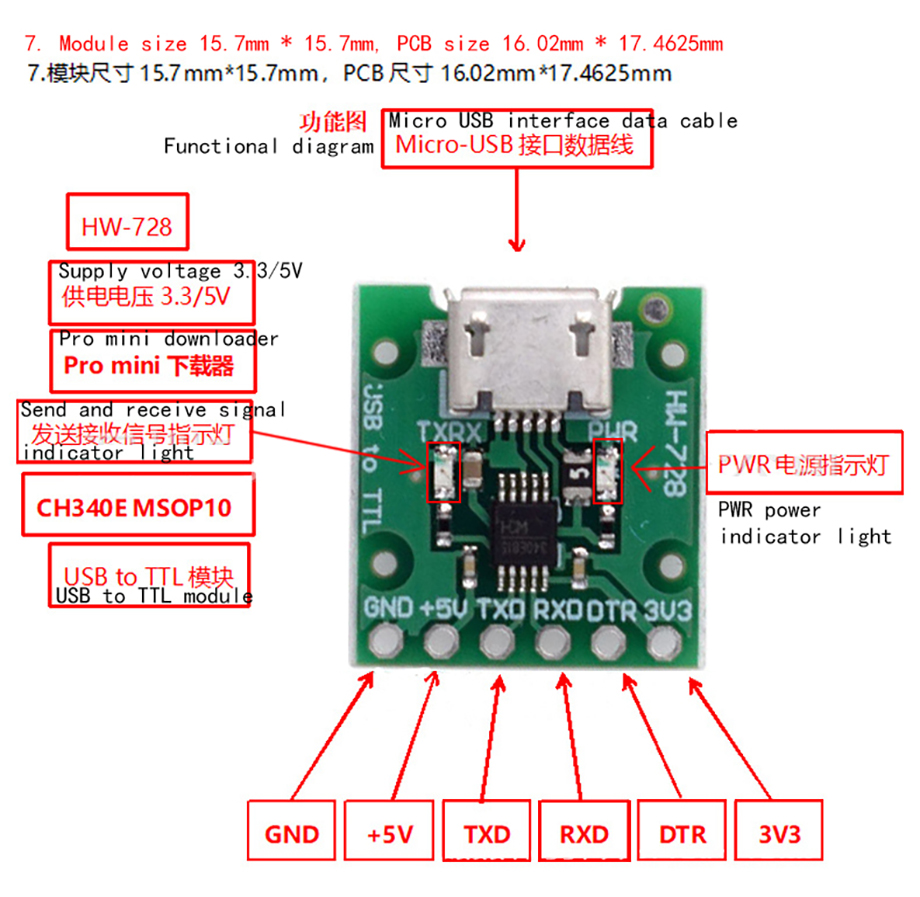

7. Module size 15.7mm * 15.7mm, PCB size 16.02mm * 17.4625mm

Product Features

This USB to TL downloader can be used as a serial communication, microcontroller downloader, STM32 downloader, router downloader, etc. This downloader has a USB interface, which can easily extend the download cable, and also reserves a pin socket for short distance download and insertion,

STC microcontroller download mode

1) The wiring is as follows: (only 3 wires need to be connected)

TXD terminal of USB downloader ->connect microcontroller P3.0 (RX)

RXD terminal of USB downloader ->connect microcontroller P3.1 (TX)

GND terminal of USB downloader ->connect microcontroller GND

2) The development board or small system uses a separate power supply. After connecting the cable, it will be found that even if the development board switch is turned off, the power indicator light of the development board will still light up (weakly), which is a normal phenomenon. It is still recommended to download the STC series microcontroller through the serial port (the power supply needs to be cold started once).

STM32 microcontroller download mode:

1) The wiring is as follows: (only 3 wires need to be connected)

TXD terminal of USB downloader ->connect microcontroller PA10 (RX1)

RXD terminal of USB downloader ->connect microcontroller PA9 (TX1)

GND terminal of USB downloader ->connect microcontroller GND

2) The development board or small system is powered by a separate power supply. Alternatively, a USB downloader can be used to provide 5V power supply. To download, connect boot0 to VCC, then connect it back to GND and press the reset button to complete the operation.

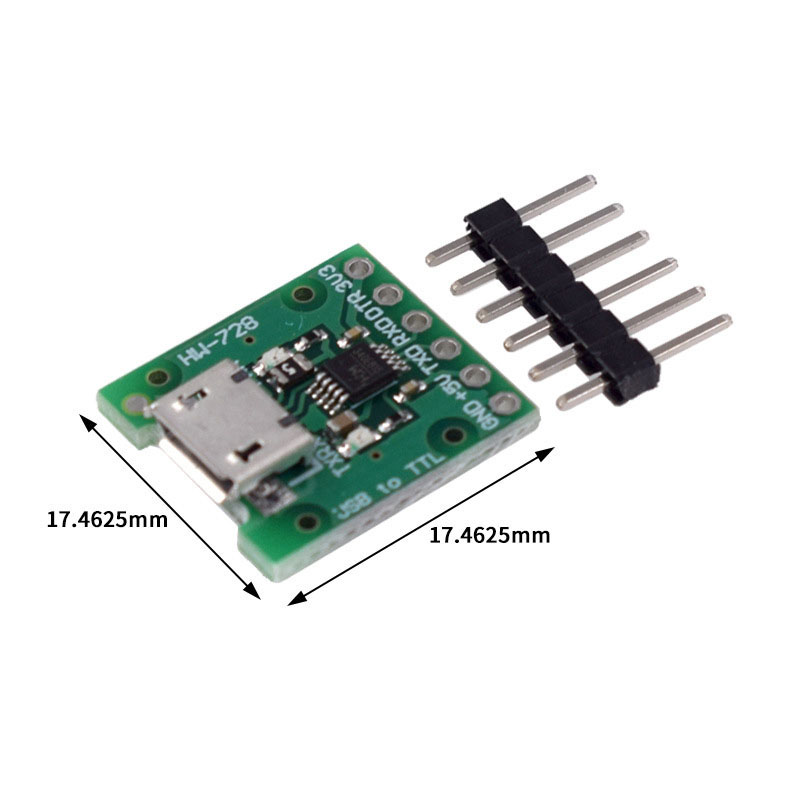

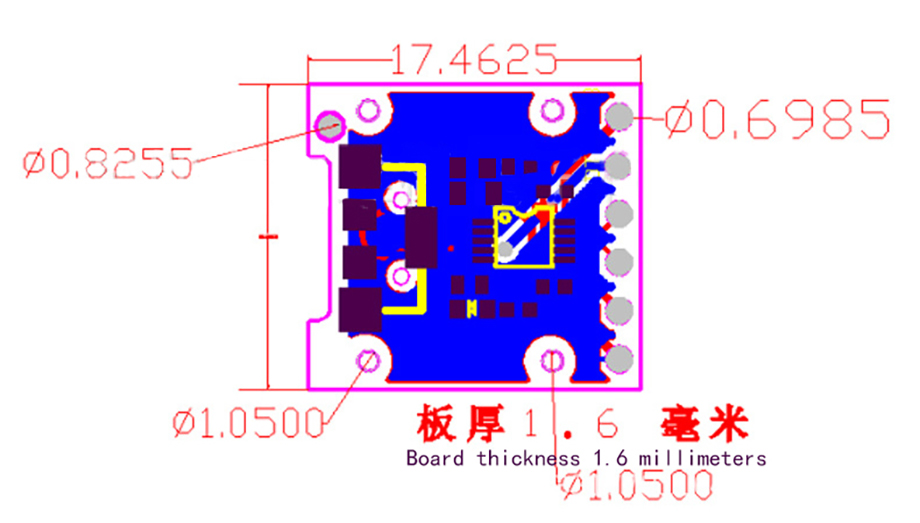

Product Size

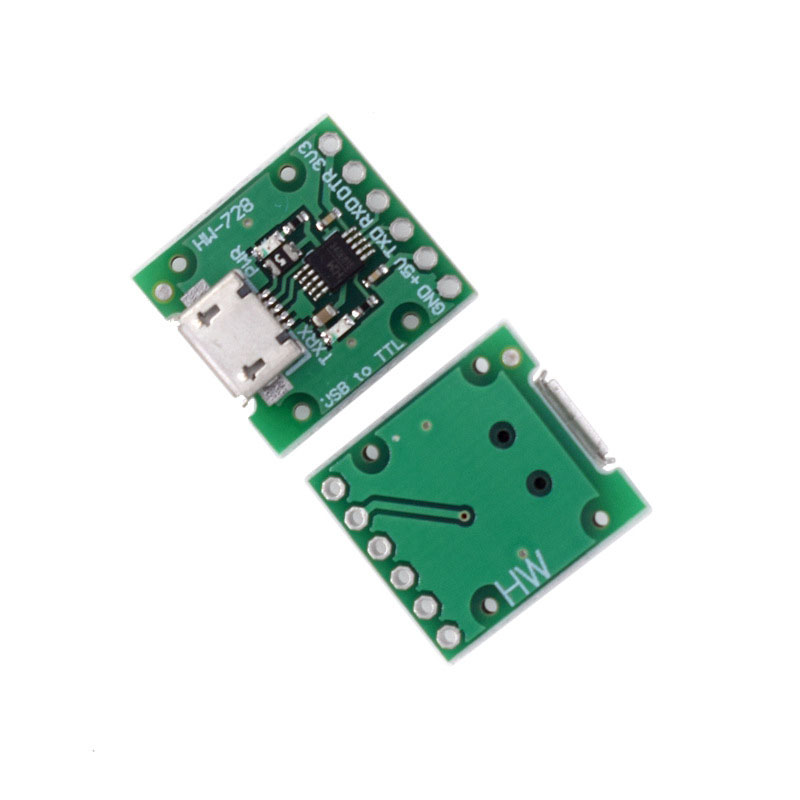

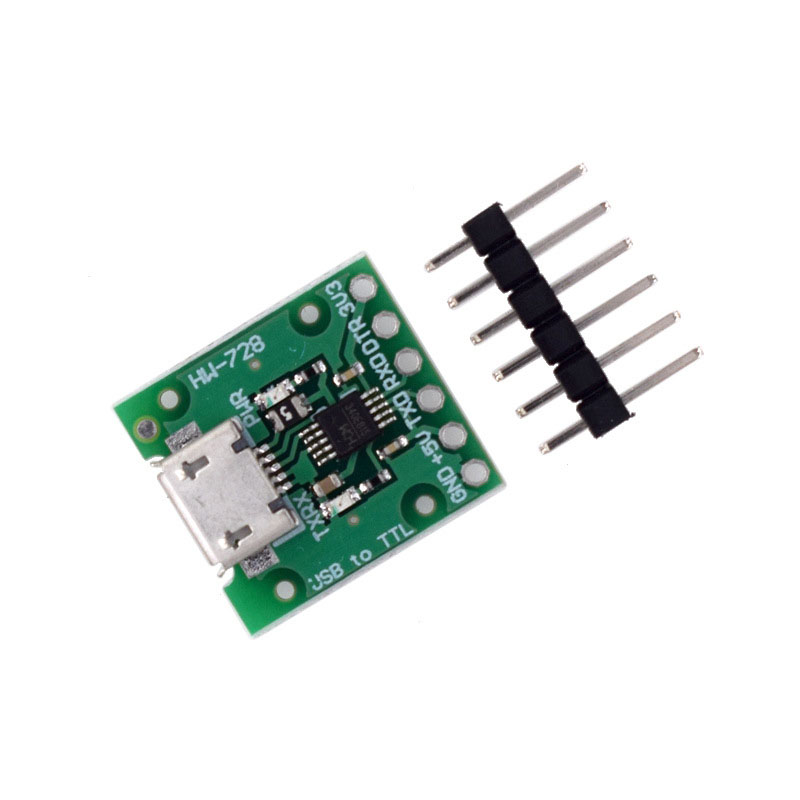

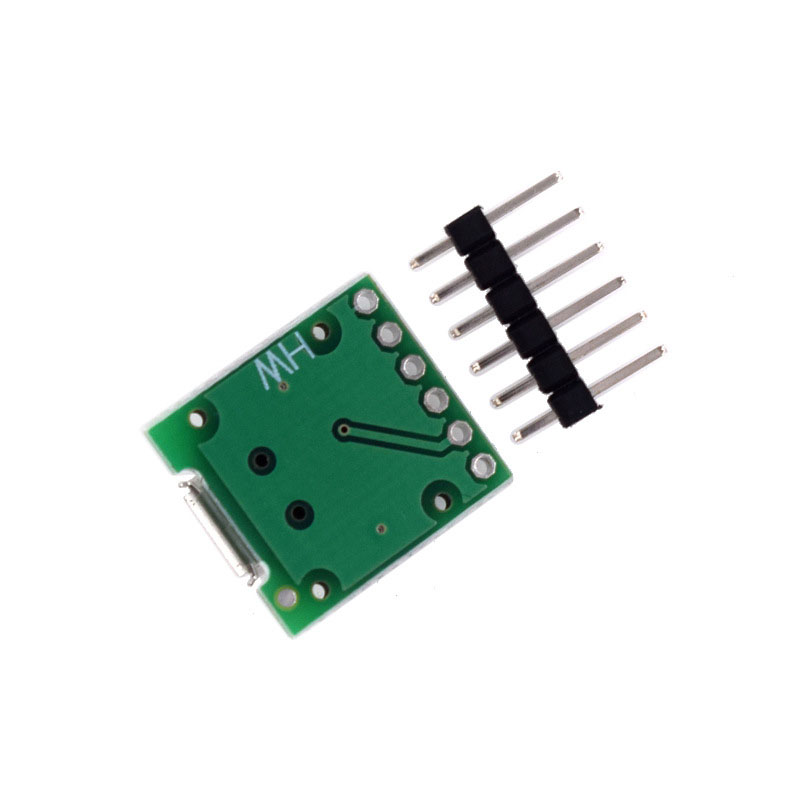

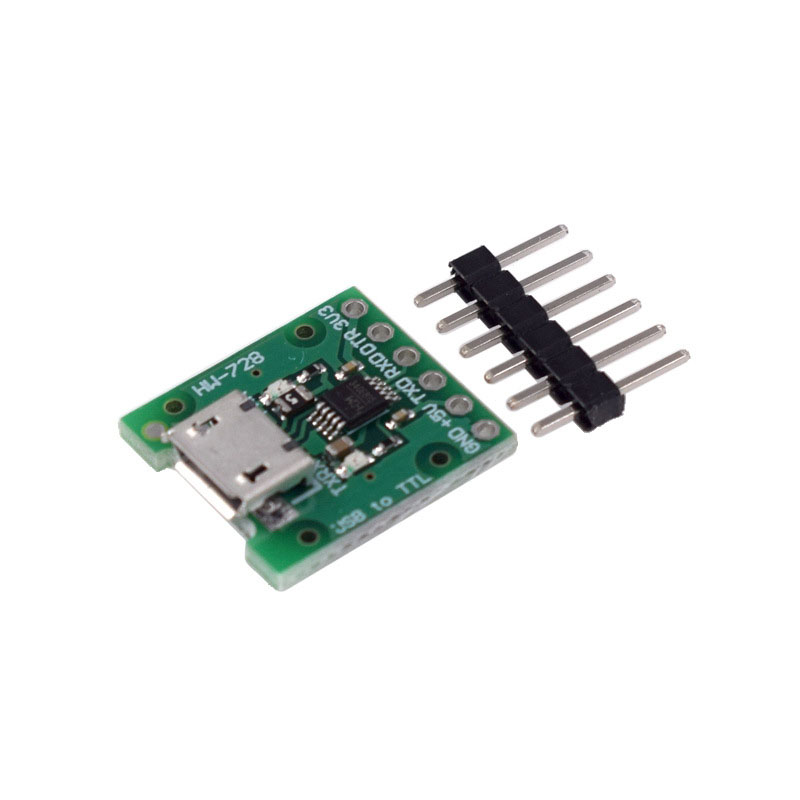

Product Show
