Taidacent 2GB DDR3 8GB eMM Android5.1 OpenGL Quad-Core CPU S500 Quad Core A9 Development Board Cubieboard 6
Manufacturer
Manufacturer Product Number
Taidacent 2GB DDR3 8GB
Description
Taidacent 2GB DDR3 8GB
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| 1. SOC:Actions SOC S500,ARM Cortex-A9 Quad-Core CPU,Imagination PowerVR SGX544 GPU |
| 2. Memory:2GB LPDDR3 |
| 3. Storage:8GB eMMC |
| 4. Card:samll SD card slot, up to 32GB |
| 5. SATA:Support 2.5 inch HDD/SSD up to 4TB |
| 6. USB:USB HOST Port x2, and USB Device port x1 |
| 7. Display:H*D*M*I Port A, H*D*M*I V1.4a, support 1080P@60Hz resolution |
| 8. Ethernet:10M/100M RJ45 |
| 9. Wireless:Wifi, Bluetooth |
| 10. IR:Infrared remote receiver Philips standard |
| 11. Audio:Support 3.5 headphone jack for Audio output, Support 3.5 jack for Line-In |
| 12. Power:DCIN 5V @ 2.5A power, Support USB power input |
| 13. Battery:Support 3.7V Li-Po battery power the board |
| 14. RTC:Support RTC circuit and RTC rechargeable battery 3.0V |
| 15. Keys:Power key, ADFU key for reflashing the ROM/Image |
| 16. LEDs:Power Led x 1, User Led x 2 |
| 17. Expansion Pins:I2C, CSI for camera, FM-IN, ADC, CVBS output, Audio output, RGB, LVDS, Mipi DSI, SPI, HSIC, INT GPIO |
| Package list: |
| cubieboard6 board x1 |
| SATA cable x1 |
| Mini USB to OTG x1 |
| Power cable x1 |
| Sin fin x1 |
| antenna x1 |

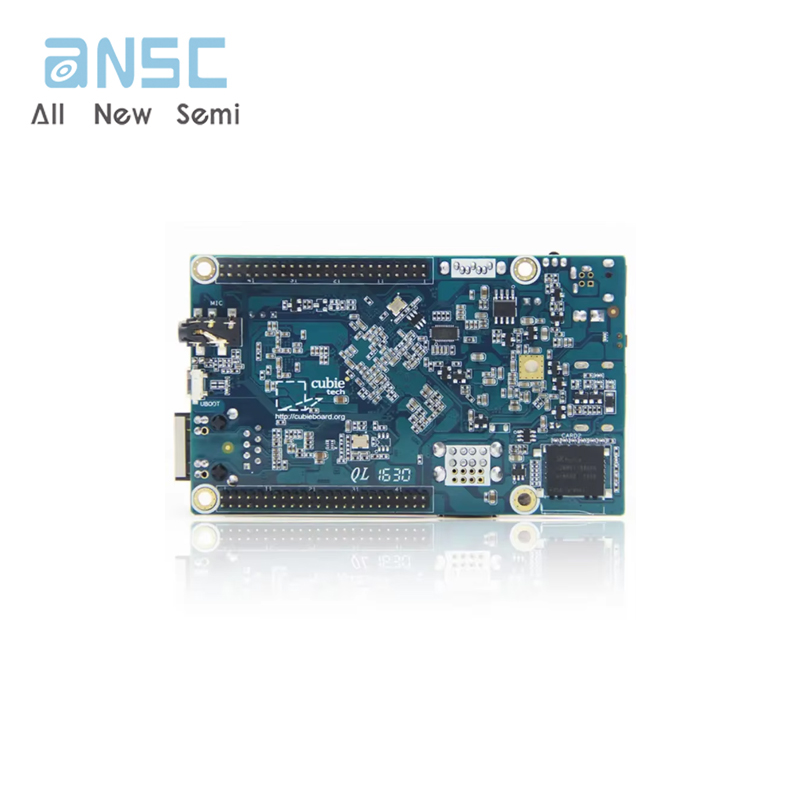

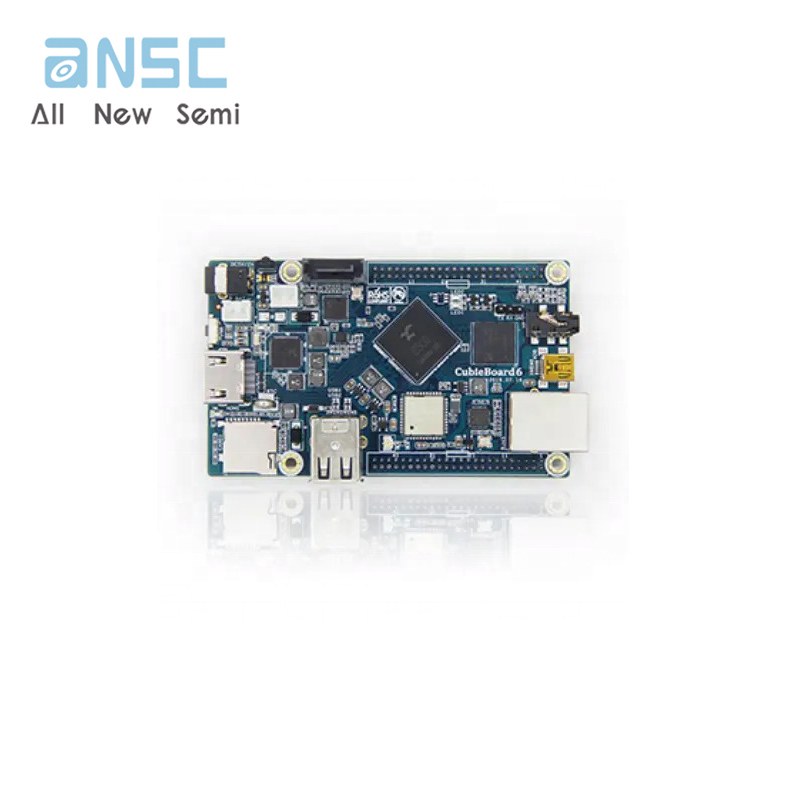

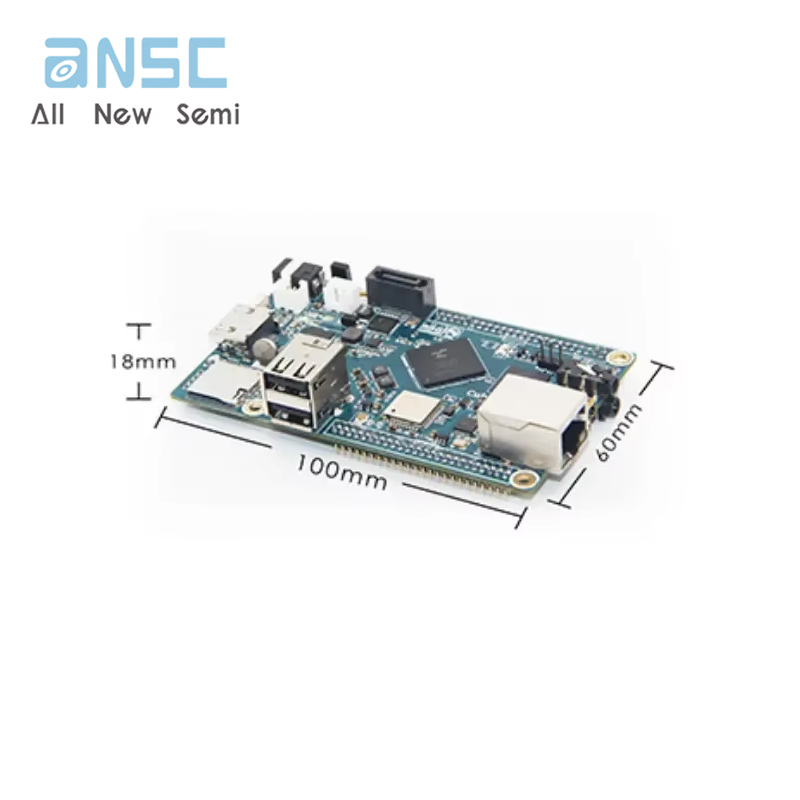

Actual image of the product
