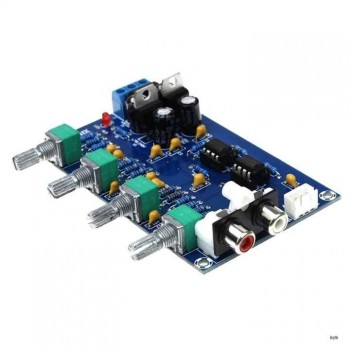

XH-M164 Power amplifier tuning board NE5532 Magnify and adjust high and low bass tuning board
Manufacturer
Manufacturer Product Number
XH-M164
Description
XH-M164 Power amplifier tuning board NE5532 Magnify and adjust high and low bass tuning board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Introduction This tuning board includes a 10x preamplifier, as well as treble, midrange, bass, and volume controls. Carefully selected components include the cost-effective NE5532 op amp, high-quality small potentiometers, Black Diamond BP non-polarized coupling capacitors, 1% metal film resistors, and Philips CBB capacitors. The kit also includes an op amp IC socket, offering flexibility and easy upgrades to suit your needs. The circuit board features a well-designed layout, low noise, and an aesthetically pleasing component layout, ensuring maximum comfort for your discerning taste. |
| Product Specifications Power Requirements: AC dual 12V ± 2V Power Consumption: 5W Dimensions: 105 x 54mm (excluding knob protrusion) Mounting Hole Spacing: K = M3J = 53 x 93 Front Panel Chipset: NE5532 Input Port: Standard RCA Socket Output Port: 2.54-3P Number of Channels: Two Adjustment Type: 4-Way (Treble + Midrange + Bass + Master Volume) |
