Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
MT3608 Adjustable power module Wide voltage input 2/24V L 5/9/12/28V MT3608
Manufacturer
Manufacturer Product Number
MT3608
Description
MT3608 Adjustable power module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
MT3608 module features and technical specifications:
Overheat protection
Small size
Up to 2 amps of output current
Input voltage range is 2V DC to 24V DC
The module provides 93% output accuracy
Output voltage can be adjusted from 5V DC to 28V DC
Soft start function
Small quiescent current, only 200uA at most.
Low cost
Using MT3608 high-efficiency chip
Product Description

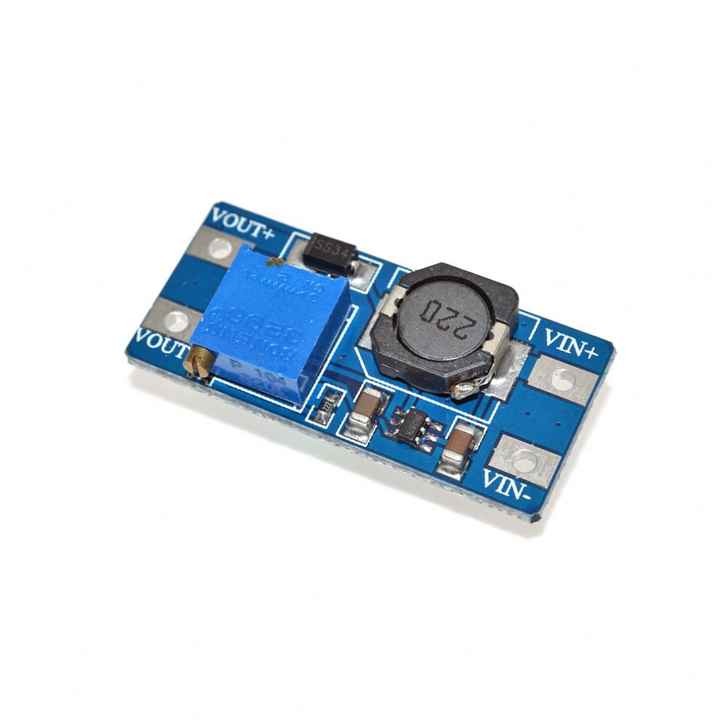

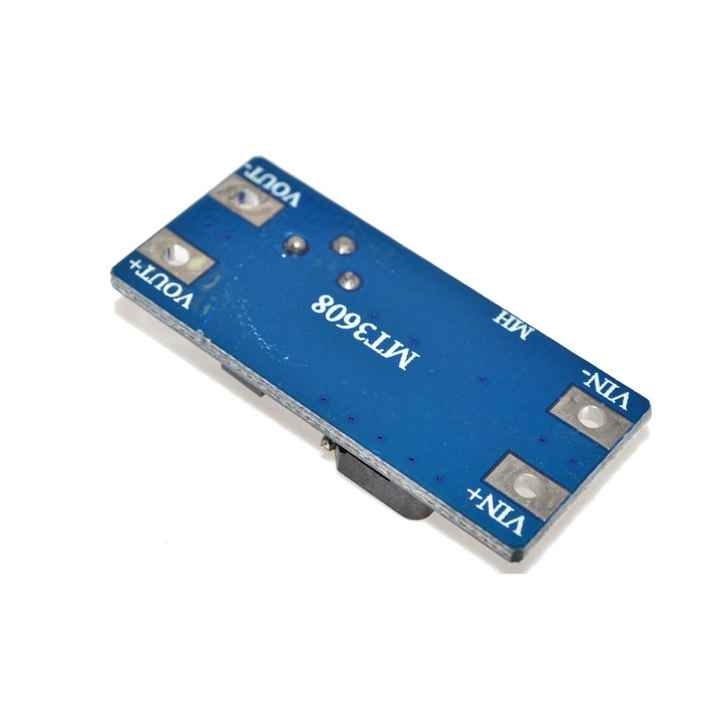

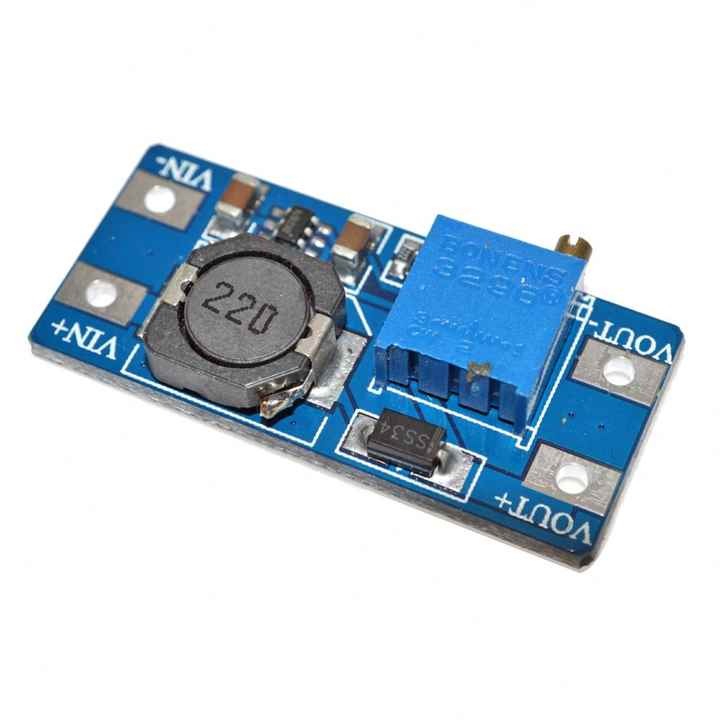

| MT3608 Step-Up Boost Converter Module Explanation/Description: MT3608 Step-Up Boost Converter Module is a small, efficient, low-cost module used to convert voltages as low as 2V to a maximum of 28V DC with a maximum output current of 2 Amps. The output voltage can be adjusted by a variable resistor used in the module. The number of components used in this module is very less and the main component of the module is the MT3608 IC. MT3608 is a highly efficient step-up IC with many in-built features like over-temperature protection, low quiescent current, soft-start function, low external components, over-temperature shutdown etc. The other components used in this module are two ceramic capacitors, a variable resistor, a resistor and a Schottky diode and a 22uH inductor which is an essential part of any step-up circuit. |
Product Applications
Solar-related circuits
Portability of battery-powered devices
Power supplies
Mobile power supplies
Battery chargers
Product Photos
Other Products In The same category:
MT3608 Adjustable power module
1000In stock:
Can ship immediately
