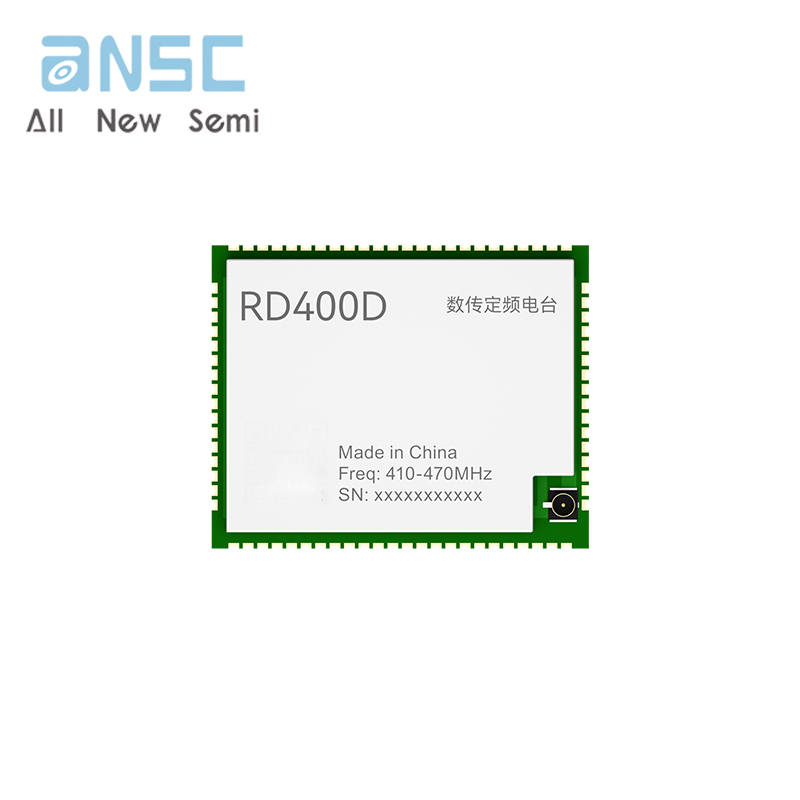

Hot selling original stock sale RD400D Digital radio module 410-470MHz TRIMATLK/TRIMMARK3/TRANSEOT

Product Descriptions

RD400D is a table mounted built-in fixed-frequency transceiver-transmitter data transmission module (radio), working in the 410MHz~470MHz frequency band, focusing on surveying and mapping, precision agriculture, drones and the Internet of

Things The application environment has the characteristics of light weight, small size, low power consumption and superior reception performance. It supports a variety of power gear selection, free switching of air baud rate, rich serial port baud rate

selection, and easy operation. SUPPORT FOR TRIMATLK, TRIMMARK3, TRANSEOT (OR PCC OR TRANSPARENT PROTOCOL). and other mainstream transmission protocols in the industry, supporting a variety of serial port baud rate options: 9600bps,

19200bps, 38400bps, 57600bps 、115200bps；

Product Features

 Ultra-small size, only 33x26.5mm;

 Maximum transmit power 30dBm;

 Built-in 40MHz temperature compensated crystal oscillator;

 Support 3.3~3.6V power supply, greater than 3.3V power supply can ensure the best performance;

 Support frequency band 410MHz~470MHz;

 IPEX antenna interface design is used to facilitate built-in integration；

 Air speed support4800bps、9600bps, 19200bps;

 Support a variety of serial port baud rate options: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps（default）;

 Support serial port IAP online firmware upgrade;

 Under ideal conditions, the communication distance can reach 5.6Km;

 Support compatible with a variety of data transmission protocols in the industry: support TRIMATLK, TRIMMARK3, TRANSEOT (or PCC or transparent protocol) and other mainstream transmission protocols in the industry.  Support point-to-point and point-to-multipoint communication;

 Built-in watchdog and hardware reset function to prevent system crash;

 Industrial-grade standard design, support long-term use at -40~+85°C;

Product Applications

 surveying and precision agriculture;

 Drone;

 IoT applications;

 Driving test driving training
