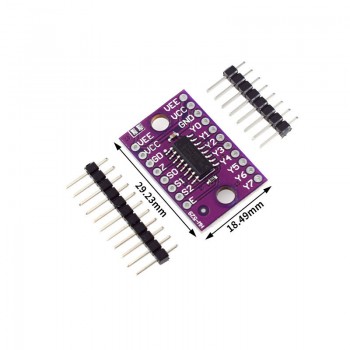

HC4051 74HC4051 8-Channel-Mux 8-channel analog multiplexer module
Manufacturer
Manufacturer Product Number
HC4051
Description
Power module DC-DC boost module High power DC adjustable boost module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Introduction
74HCT4051 is a single pole eight throw analog switch (SP8T) suitable for analog or digital 8:1 multiplexer/demultiplexer applications. The switch function has three digital selection inputs (S0, S1, and S2), eight independent inputs/outputs (Yn), one common input/output (Z), and a digital enable input (E). When E is high, the switch is closed. The input includes a clamping diode. This enables the use of current limiting resistors to connect the input to voltages exceeding VCC.
Product Parameter
Input voltage: 2~10V
Analog input/output terminal: should not exceed 10.0V
Product Funtions
Pin Definition
| 上面引脚 Top pin |
下方引脚 Pin below |
||
| VEE | 负电源(可保持不连接) Negative power supply (can remain unconnected) |
VEE | 负电源(可保持不连接) Negative power supply (can remain unconnected) |
| VCC | 电源正极 Positive pole of power supply |
VCC | 电源正极 Positive pole of power supply |
| GND | 电源负极 Negative pole of power supply |
GND | 接地 Grounding |
| Z | 输出信号 Output signal |
Y0 | 模拟输入 Analog input |
| S0 | 选择8个模拟输入引脚中的一个作为最终输出信号 Select one of the 8 analog input pins as the final output signal |
Y1 | |
| S1 | Y2 | ||
| S2 | Y3 | ||
| E | 启用引脚(低电平有效) Enable pin (low level active) |
Y4 | |
| Y5 | |||
| Y6 | |||
| Y7 |
Product Size
Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
