Hot sale original SKM195GB066D Insulated Gate Bipolar Transistor 265A I(C) 600V V(BR)CES N-Channel 7PIN

Manufacturer Product Number

SKM195GB066D

Description

SKM195GB066D Insulated Gate Bipolar Transistor 265A I(C) 600V V(BR)CES N-Channel 7PIN

Package Condition

Original

Datasheet

1840420-1

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Features

• VCE(sat) with positive temperature coefficient

• High short circuit capability, self limiting to 6 x Icnom

• Fast & soft inverse CAL diodes

• Large clearance (10 mm) and creepage distances (20 mm)

• Isolated copper baseplate using DBC Technology (Direct Copper Bonding)

• UL recognized, file no. E63532

Typical Applications*

• AC inverter drives

• UPS

• Electronic welders at fsw up to 20 kHz

Product Description

Type	Description
ANSC PART#	ANSC- SKM195GB066D
Ihs Manufacturer	/
Part Package Code	DO-204
Package Description	CASE D 61, SEMITRANS 2, 7 PIN
Pin Count	2
Samacsys Manufacturer	/
Case Connection	ISOLATED
Collector Current-Max (IC)	265 A
Collector-Emitter Voltage-Max	600 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate-Emitter Voltage-Max	20 V
Number of Elements	2
Number of Terminals	7
Operating Temperature-Max	175 °C
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Qualification Status	Not Qualified
Reference Standard	UL RECOGNIZED
Surface Mount	NO
Terminal Finish	TIN/SILVER
Terminal Form	UNSPECIFIED
Terminal Position	UPPER
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	569 ns
Turn-on Time-Nom (ton)	228 ns
VCEsat-Max	1.9 V

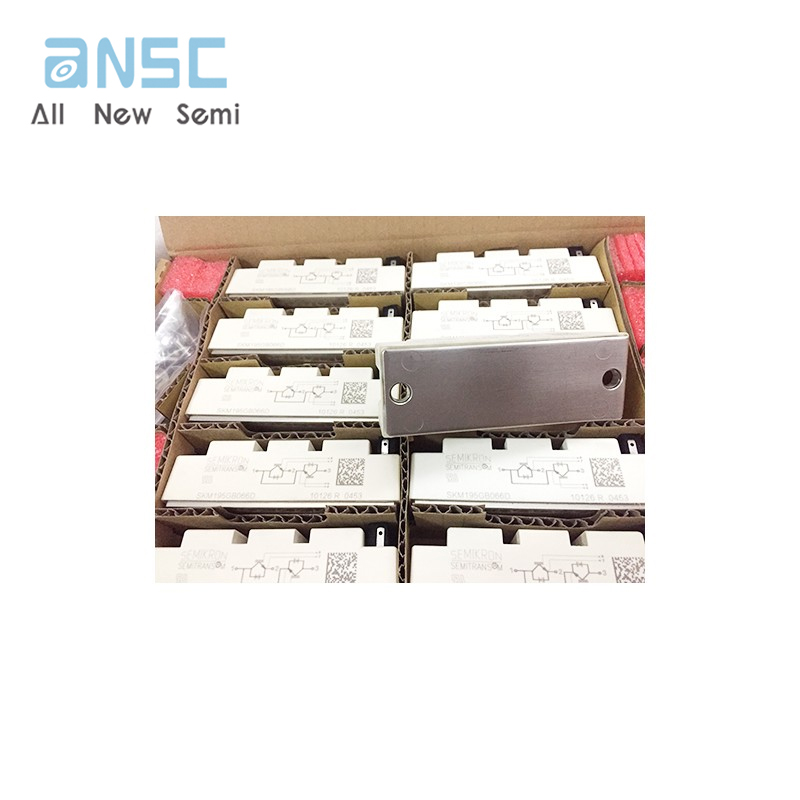

Actual image of the product

SKM195GB066D

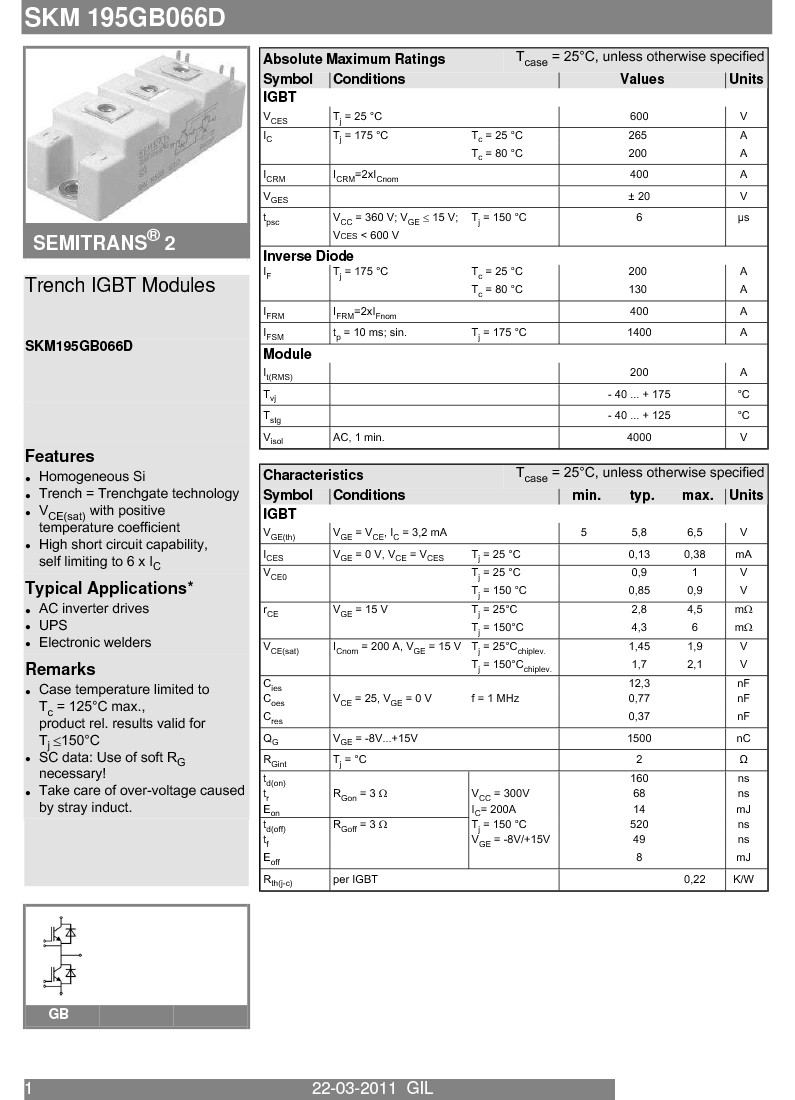

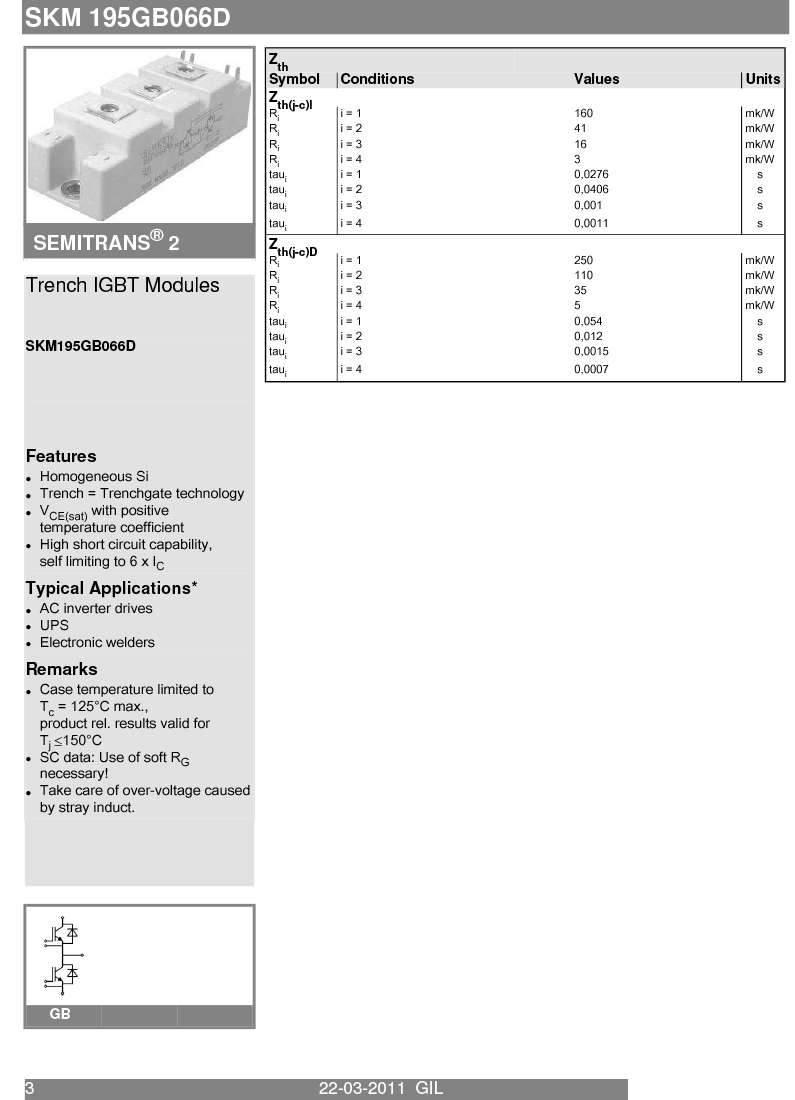

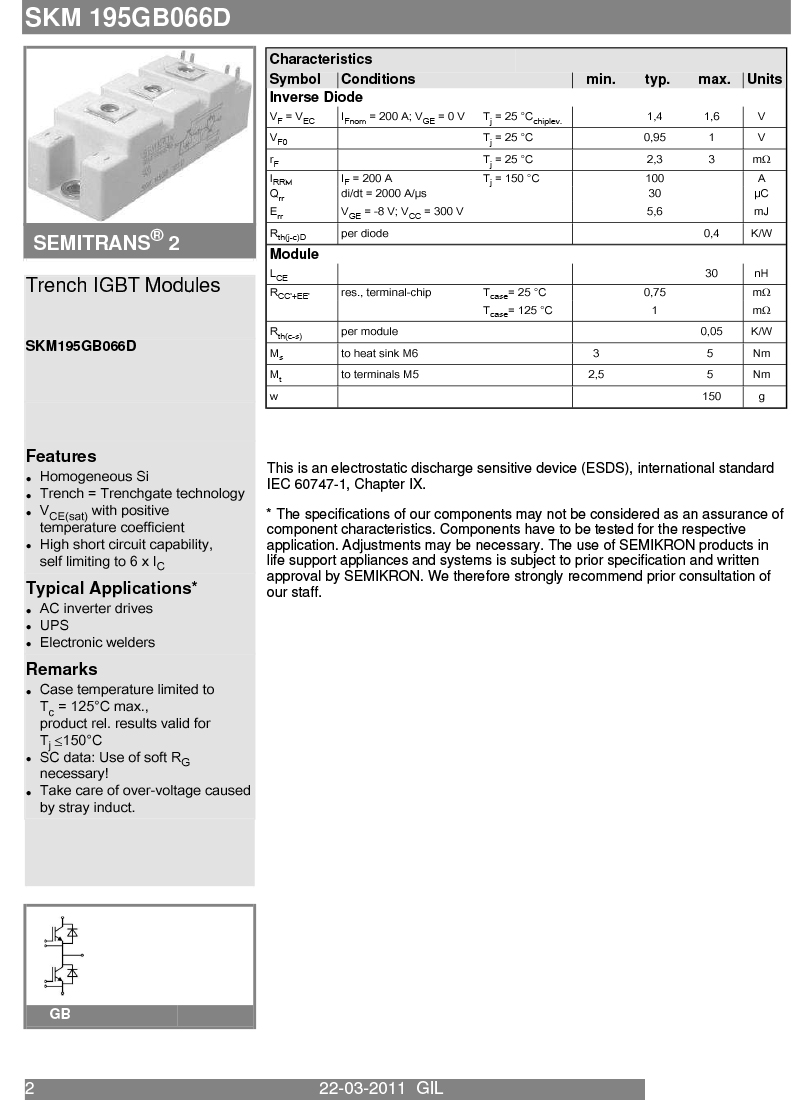

Product datasheet

For more information, please download
