20W high-power fast charging wireless charger transmitter module TYPE-C DC9-30V barrier 0-10MM

Product Description

Product features
1. Use high-quality materials with guaranteed quality
2. Exquisite and compact appearance, beautiful arrangement of components.

3. The product comes with a charging indicator light,standby light: red (always on), green (always on) during charging
4. Easy to use, wide working voltage, can be freely soldered or inputted using the Tpe-C port.

5. Wide application range, coupled with magnets, magnetic charging parameters can be achieved for mobile phones, tablets, etc.:
Input power supply:
Type-C port: 5V/9V/12V/QC/PD charging head
Soldering wire: 9V-30V (can be directly connected to the vehicle) Output power:
Input: 5V, Output: 5W (Max) Input: 9V/12V-30V, Output: 5W/10W/15W/20W

Automatic recognition Sensing distance: Barrier: 0-10mm(recommended 2-6mm)
Precautions:
1. The product itself does not come with a magnet; 12V small cars/24V large trucks can be directly connected without the need for a voltage regulator
2. Because the camera of i Phone-12 and above has a 2-4mm protrusion, the distance between them should not exceed 6mm

Purchase Notice:
Wireless charging=transmitter+receiver
1. Mobile phone has wireless charging function: If your phone has wireless charging function or has already purchased it, you only need to purchase the "transmitter (base)" to charge.

2. Mobile phone does not have wireless charging function: If your phone does not have "receiver (coil patch)", you need to purchase "transmitter+receiver" to charge.

Product list:
High power wireless charging module * 1

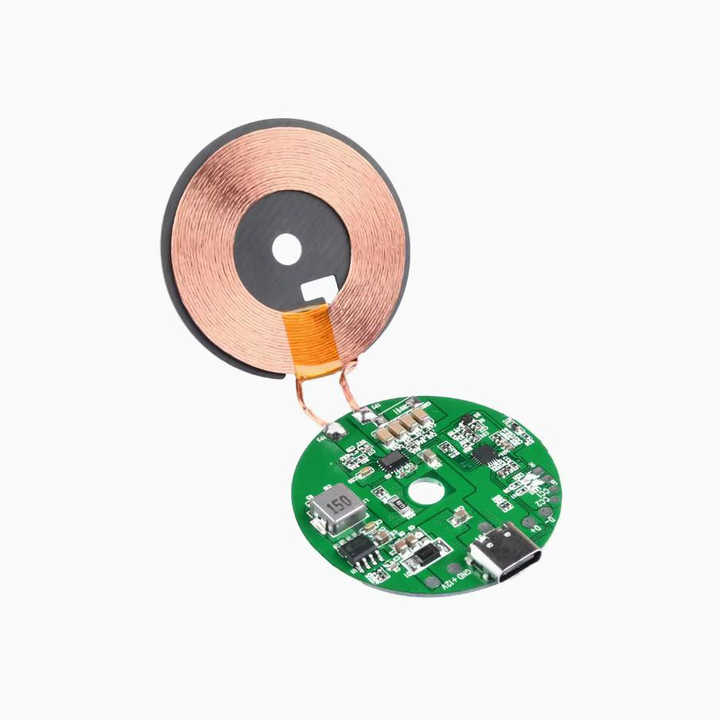

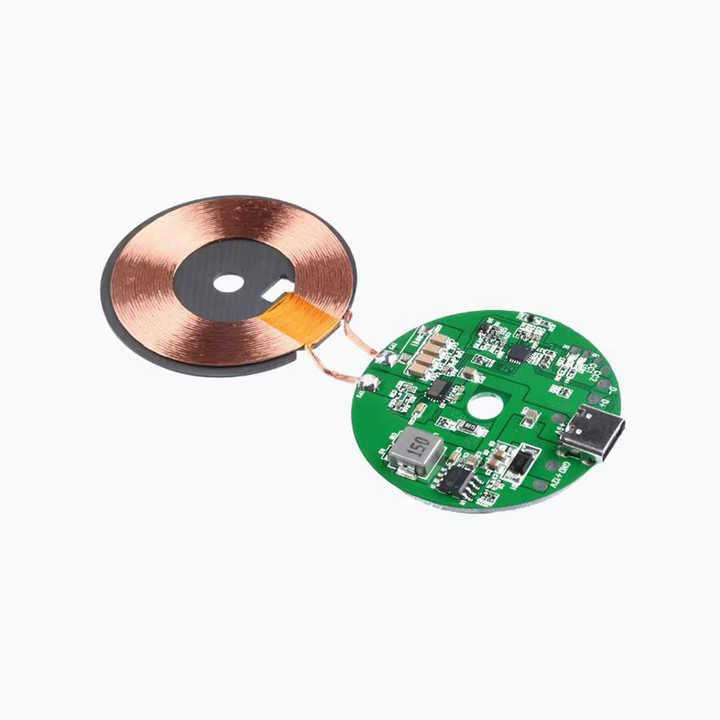

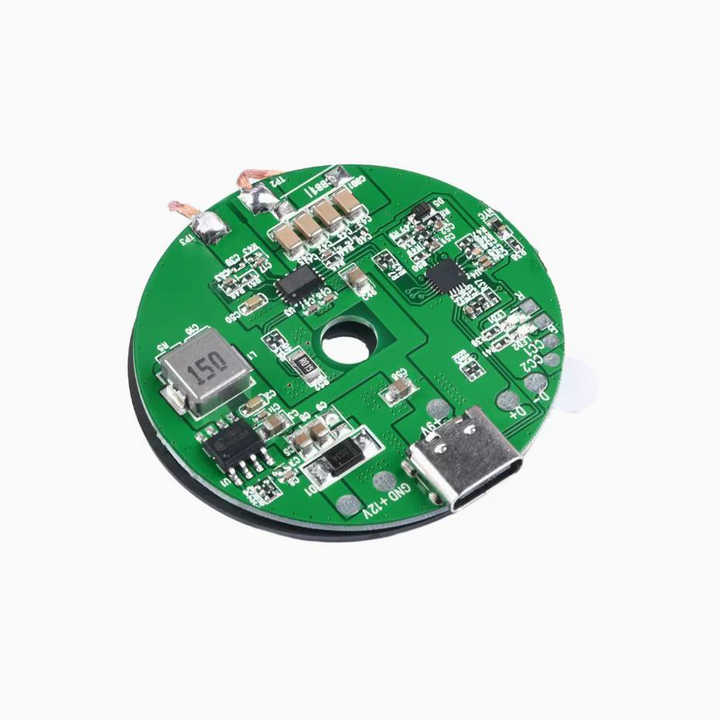

Actual image of the product

​
