PD/QC decoy, fast charging, USB power outage, internet connection, boost line, router, optical modem, Type-c

Product Introduction

This module induces the voltage of a charger/power bank with fast charging protocol and uses it as a DC power source. For example, allowing the power bank to output 9 volts and 12 volts to supply power to routers, optical modem, and other devices.

Product Parameters

Power supply method: Use a charger or power bank TYPE-C interface with fast charging protocol for power supply

Output mode: The default output is 12V, with four voltage levels of 9/12/15/20V. Users can short-circuit the corresponding pads according to their needs.

Output current: Maximum support 5A, actual output current/power determined by charger and load

Product Note

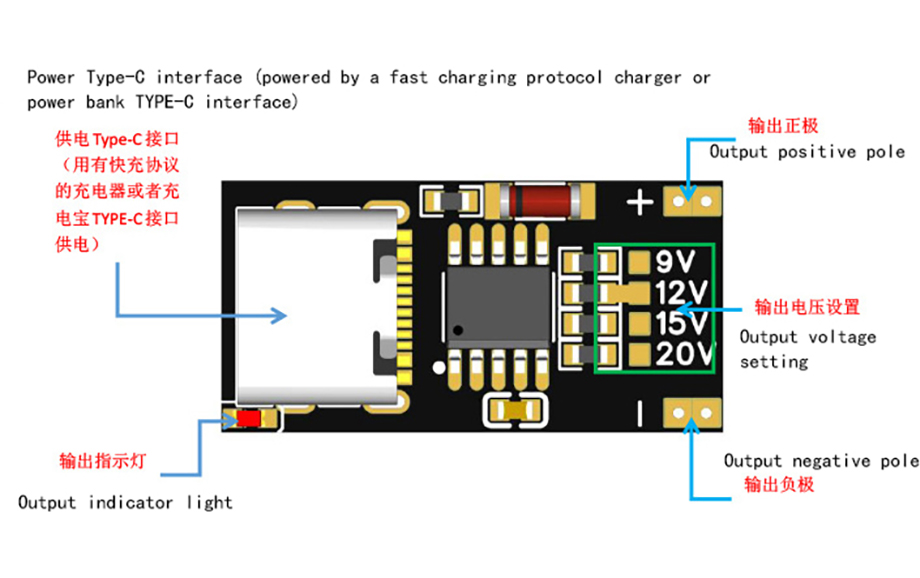

Pay attention to wiring according to the diagram and do not make mistakes,

This document only represents the product knowledge and parameters at the time of editing, and any changes in the future will not be notified separately.

Mobile phone chargers must first support fast charging such as PD/QC in order to output voltage.

Set to 20 volts. If the charger has a maximum of 9 volts, it will automatically downshift and output 9 volts. This product defaults to outputting 12V..

The output indicator light will only light up after the output voltage is short circuited.

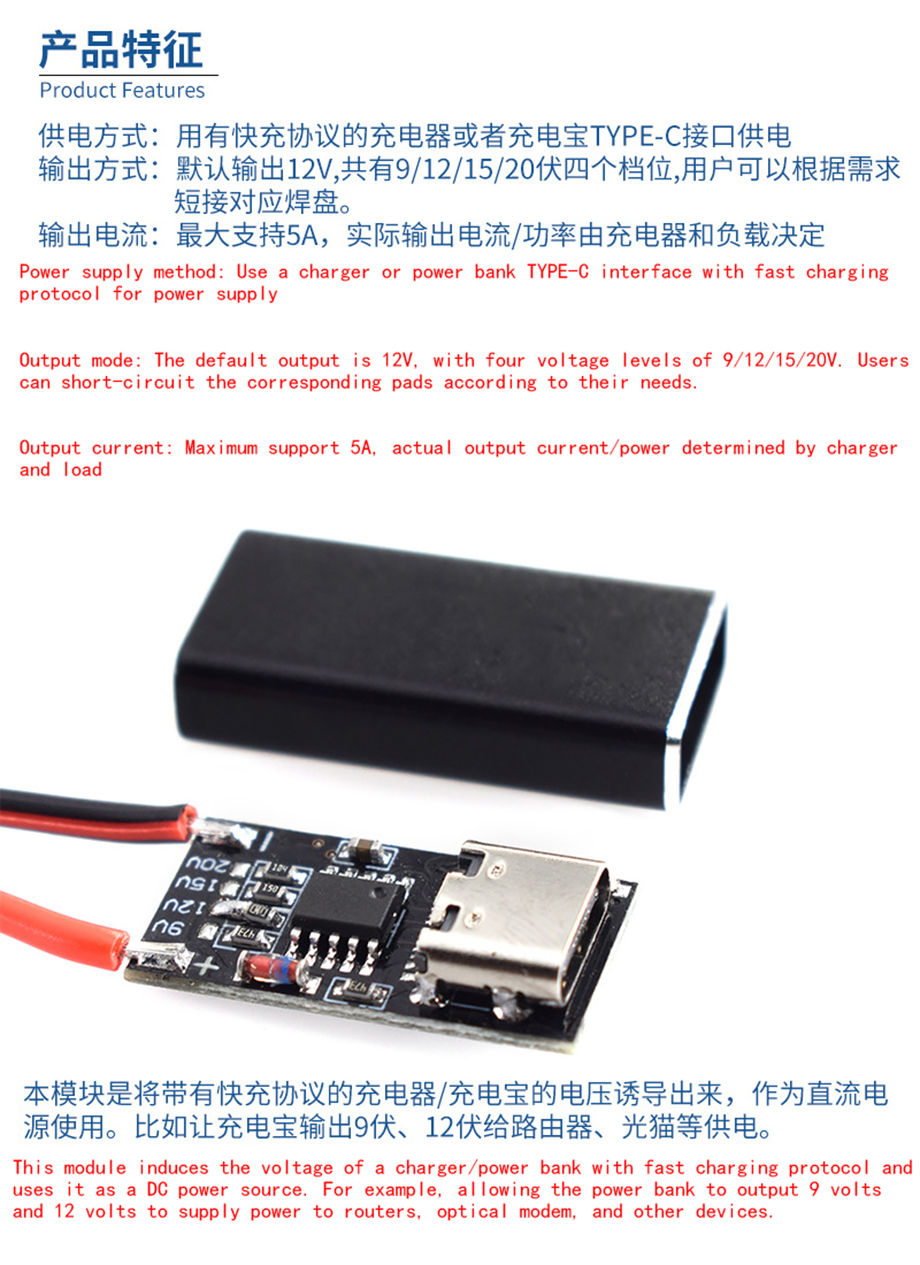

Product Features

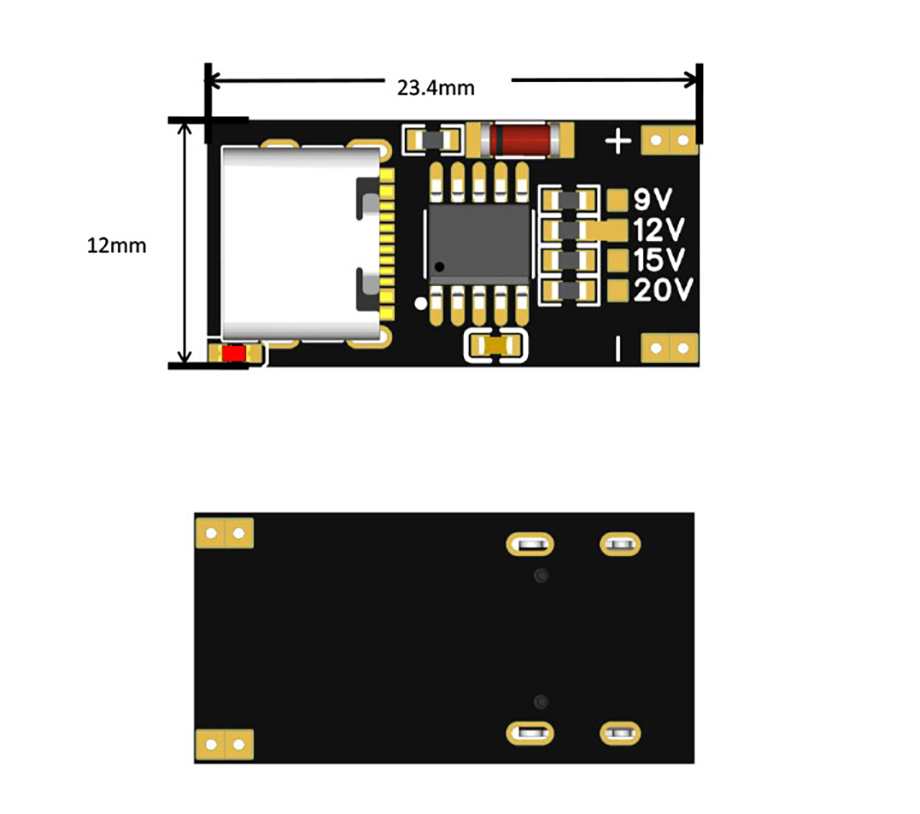

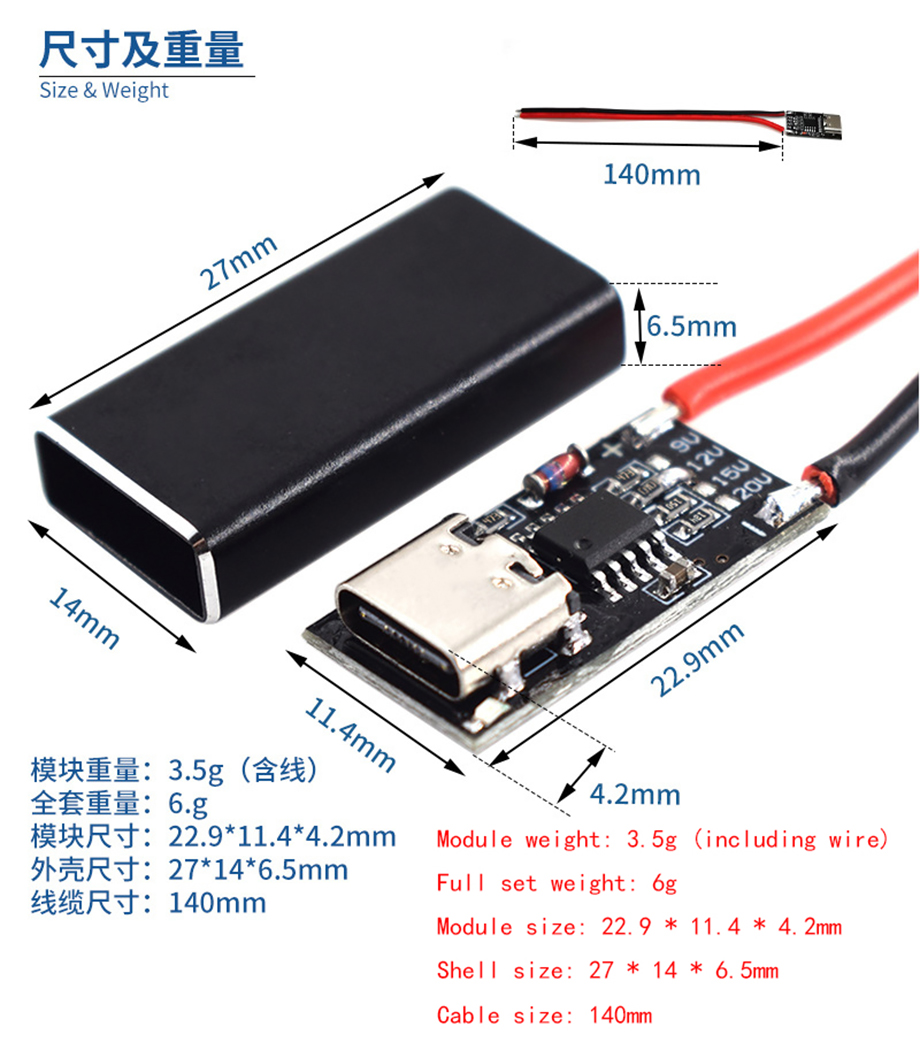

Product Size

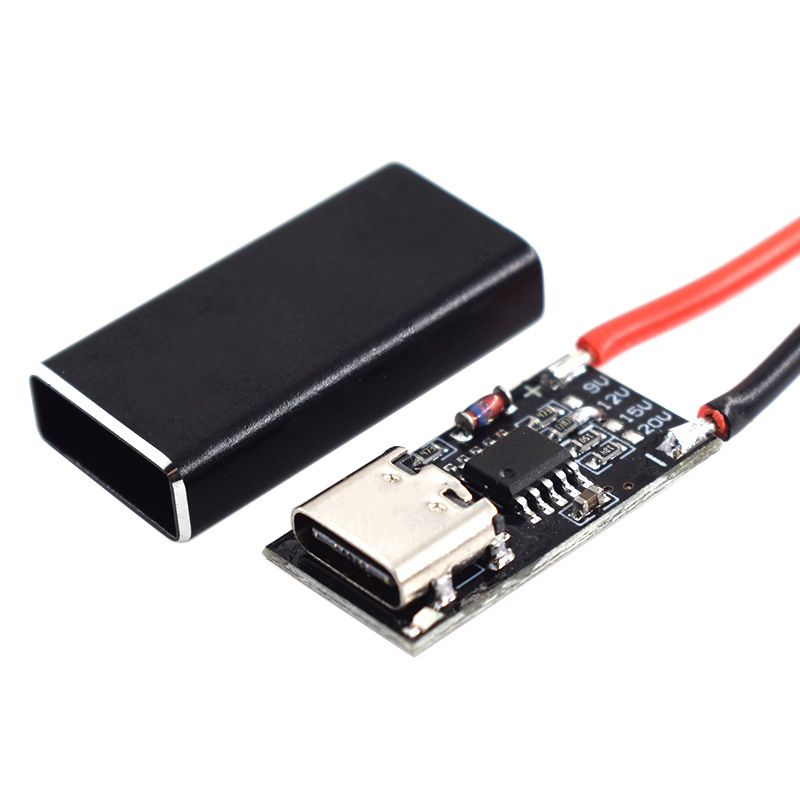

Product Show
