Separate PCB board raindrop module sensor water level detection module water rise module raindrop sensing board

Module Features

Working voltage: DC voltage of 5 volts.

Working current: less than 35MA

Test area: 40X18mm

Working temperature: 10 ° C-30 ° C

Working humidity: 10%~90% without condensation

Applicable occasions: Design of water level alarms for plant watering, fish tank leakage, rainwater, etc

Product Introduction

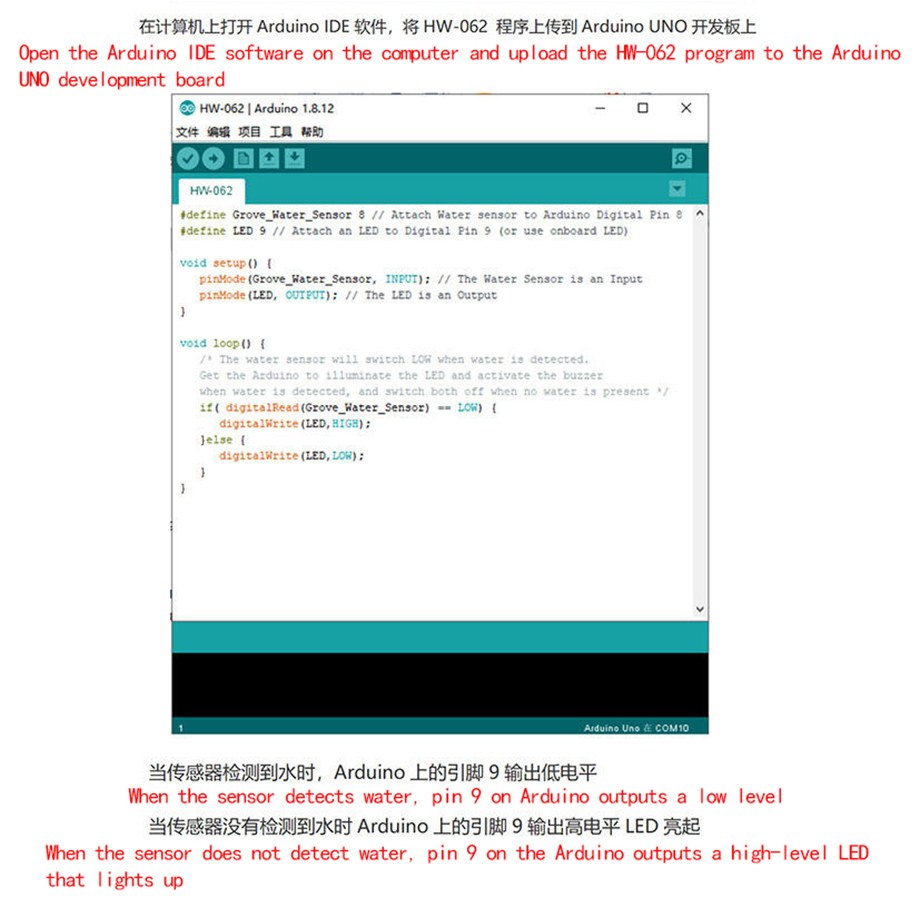

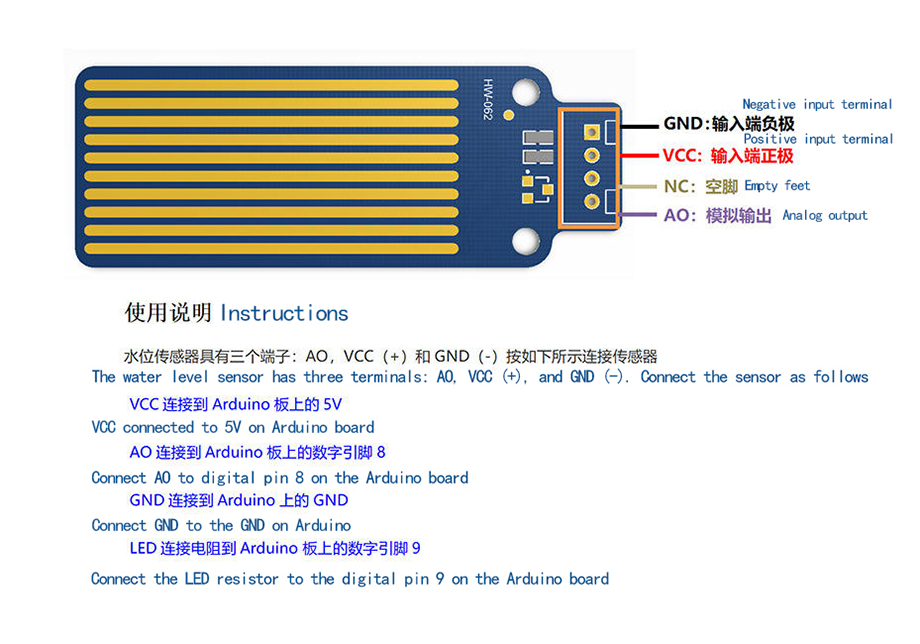

The Raindrop Water Level Sensor Module is a water level/droplet recognition and detection sensor that measures the size of its droplets/water volume through a series of exposed parallel wire traces to determine the water level. It can be used to detect the presence, volume, and lack of water, as well as the amount of rain and precipitation. This is used to remind you to water plants. We will connect the water level sensor to ARDUINO and use LED to help identify when the water level sensor comes into contact with the water source

Product Features

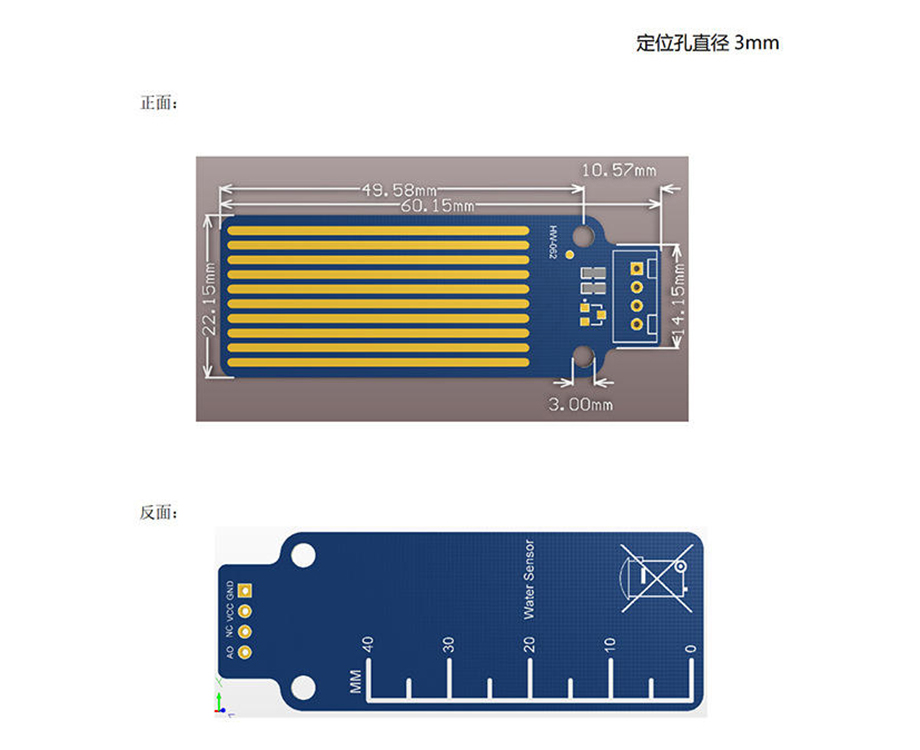

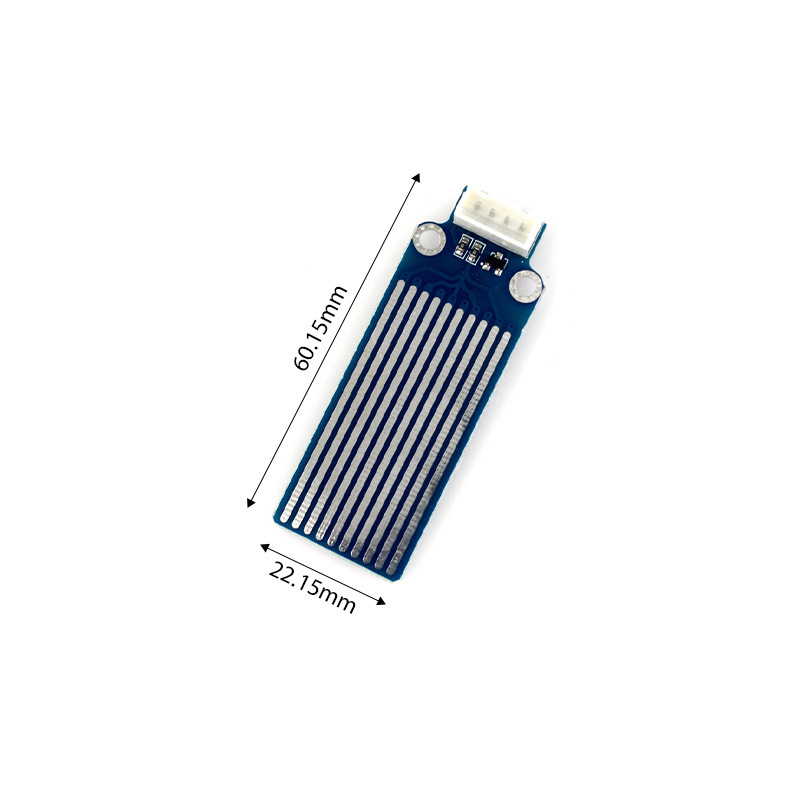

Product Size

Product Show
