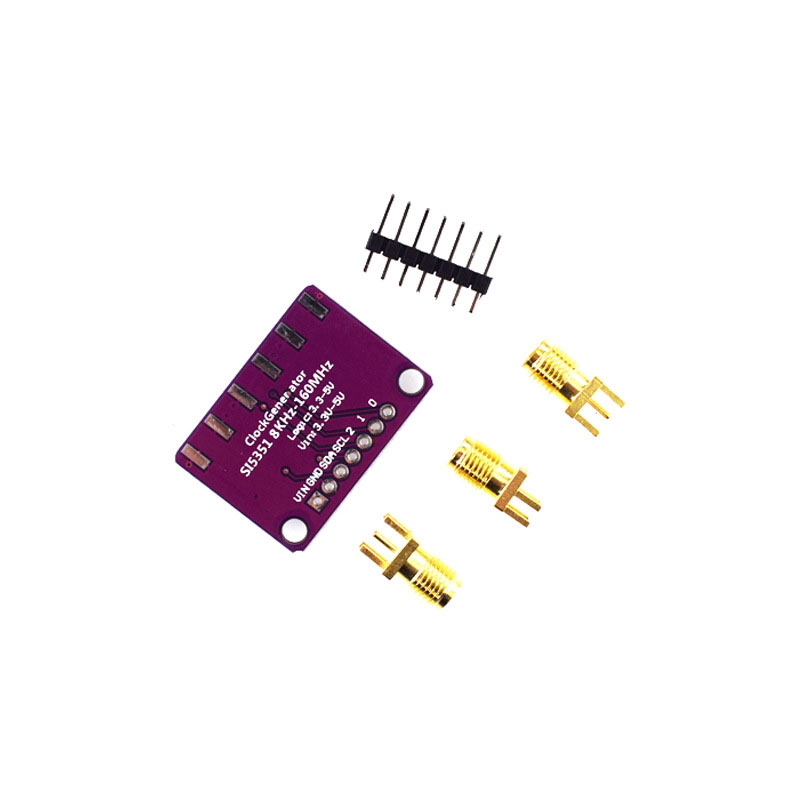

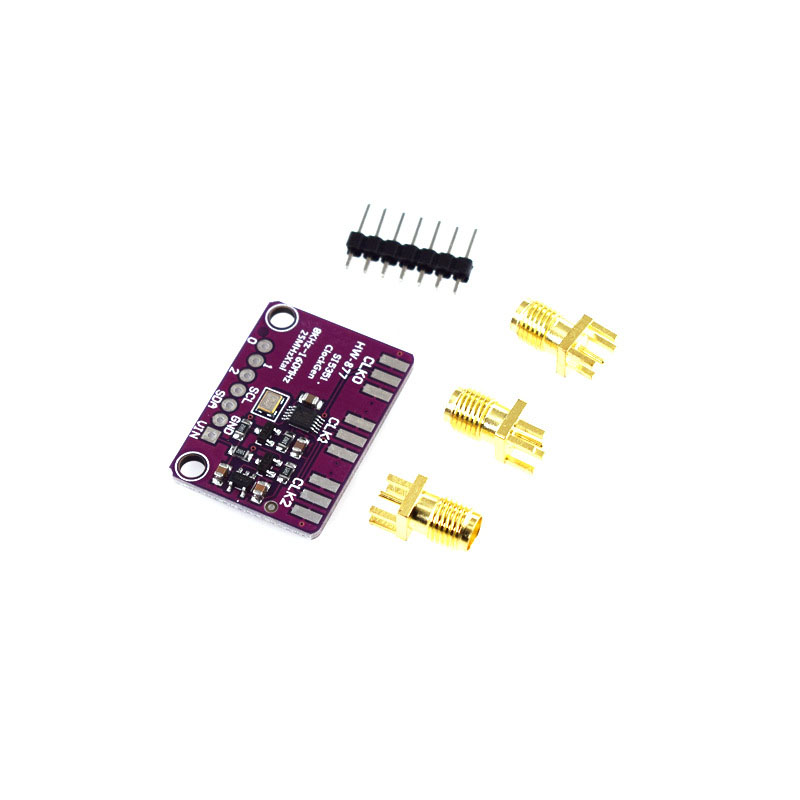

Si5351A SI5351 Clock Signal Generator Module High Frequency Signal Square Wave Frequency Generator

Product Parameter

(1) Supply voltage: DC 3.3~5.0V

(2) Working temperature:- 40℃~85℃

(3) Output impedance: 85 Ω

(4) Output signal duty cycle: 50%

(5) IIC speed: 100K~400Kbps

(6) Rise time: 1ns

Product Descriptions

SI55351 is an IIC interface programmable clock frequency generator that can replace crystal oscillators, crystal oscillators, voltage controlled oscillators, phase-locked loops, etc. It can output 8KHz~160MEZ clock signals at each output port by setting up phase-locked loops and dividers.

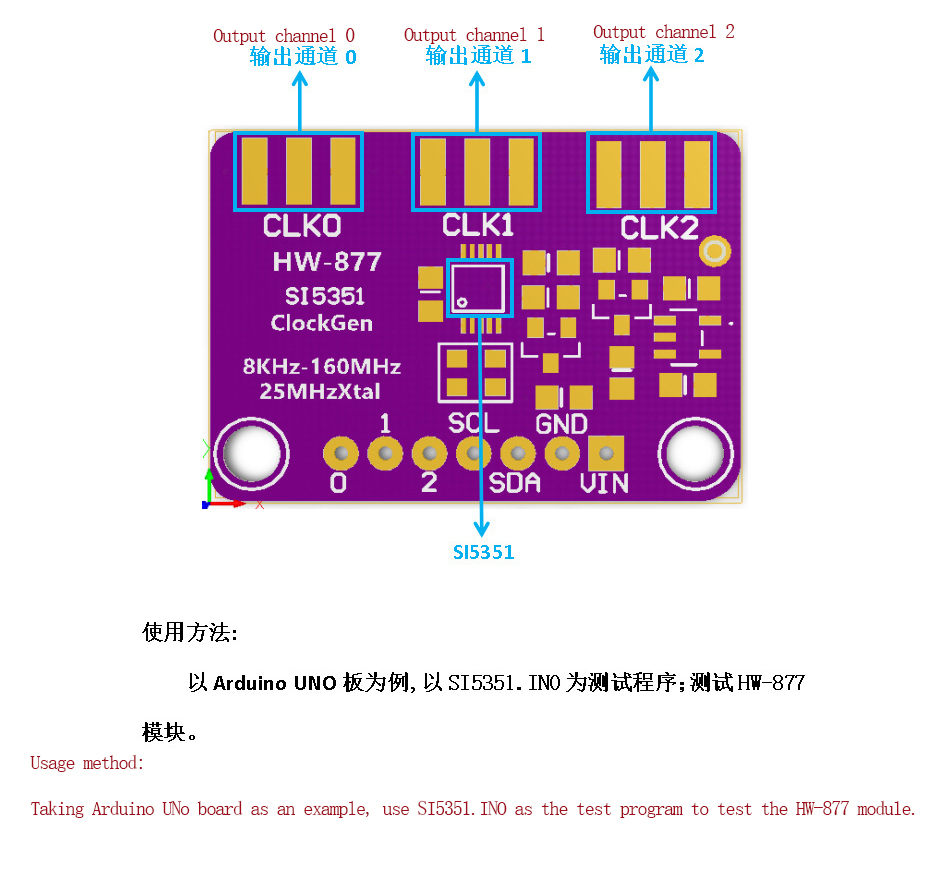

Pin function

(1)SDA: Data pins

(2)SCL: Clock pin

(3)VIN:VCC

(4)G: Grounding

(5) Pin 0: Clock signal output channel 0

(6) Pin 1: Clock signal output channel 1

(7) Pin 2: Clock signal output channel 2

Product Features

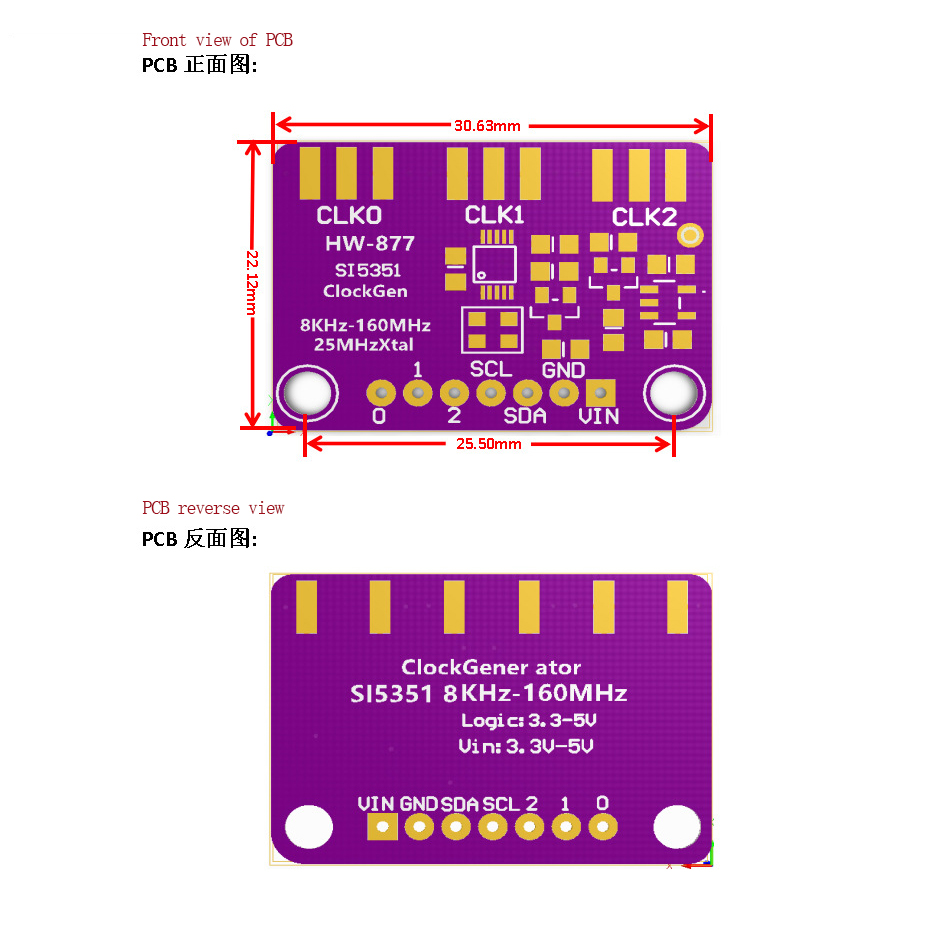

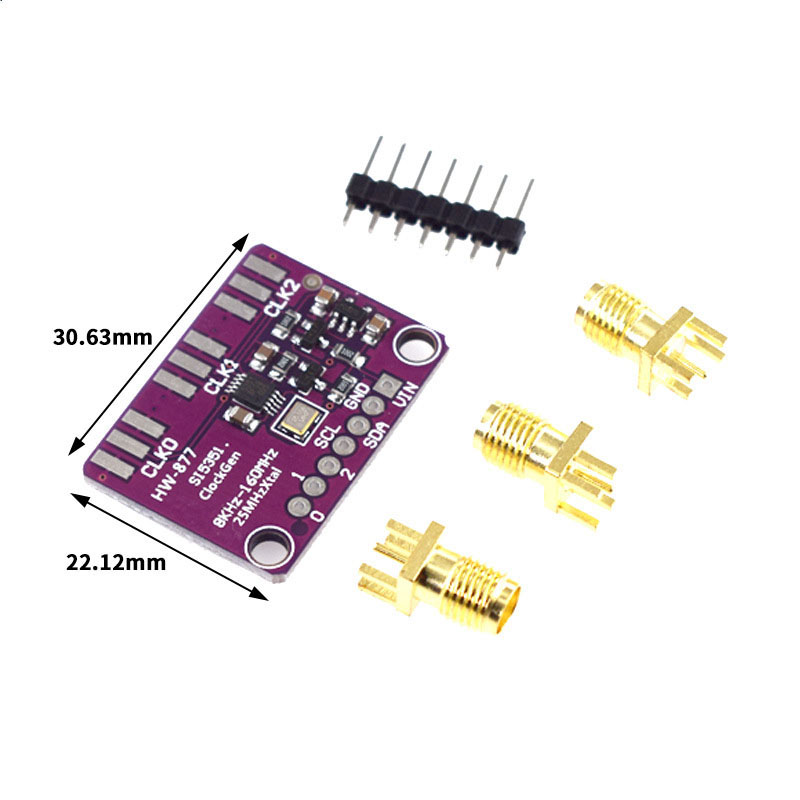

Product Size

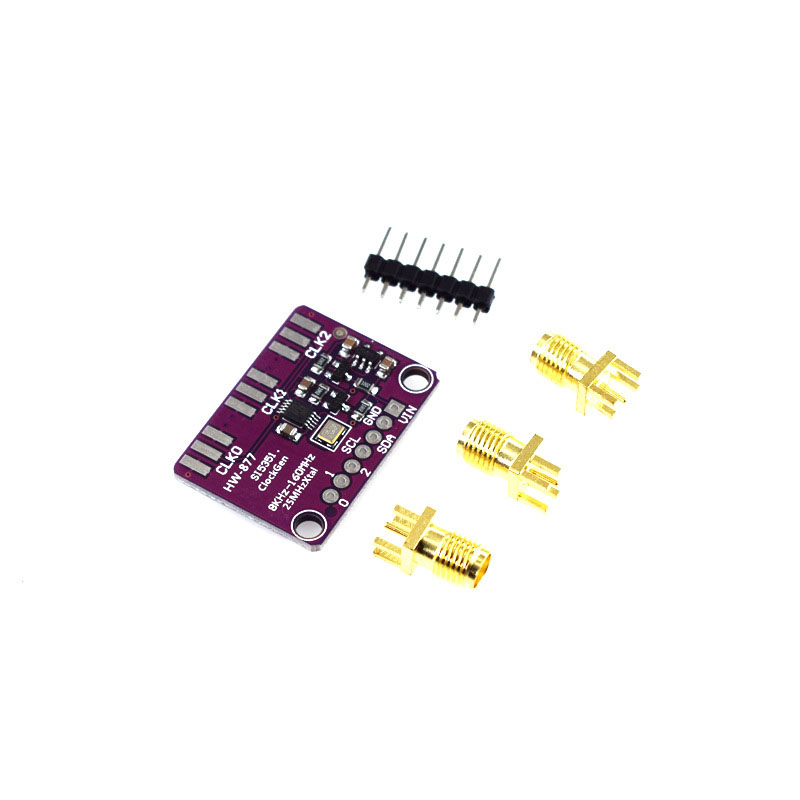

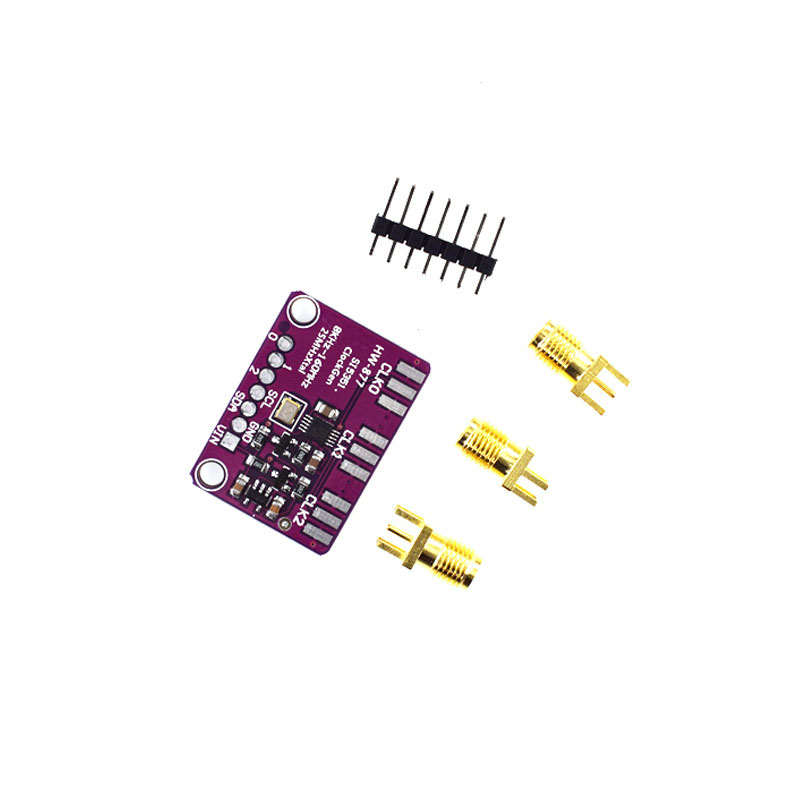

Product Show
