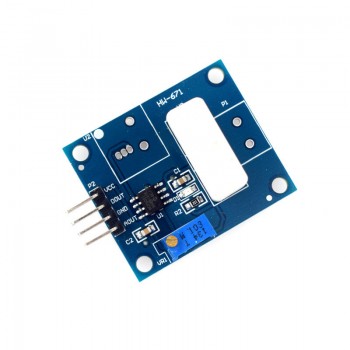

WCS1800 Hall current sensor detects 35A short circuit/overcurrent protection module

Module Parameter

Input voltage: DC5V

Working voltage: ≤ 5MA

Detection range: AC:25ADC:+35A

-A:2.5V~0.3V

Output method: Analog signal:+ A:2.5V~4.7V

Level signal: High level (H): 5V

Low level (L): 0. V

Working temperature:- 10~60°C

Working humidity: 0~100% RH

Storage temperature:- 20~65°C

Storage humidity: 0~100% RH

Convert the sampled current into an analog voltage signal output, which can be connected to an ADC; TTL level signal output, can be connected to microcontroller I/O

Brief Introduction

The WCS1800 current sensor has two main functions. The first function is to output an analog signal that can be used for A/D conversion; The second function is to output a switch signal, and the overcurrent value can be pre-set. When the actual current value is greater than the preset current value, the switch signal goes from low to high and is indicated by an LED. Easy to use.
