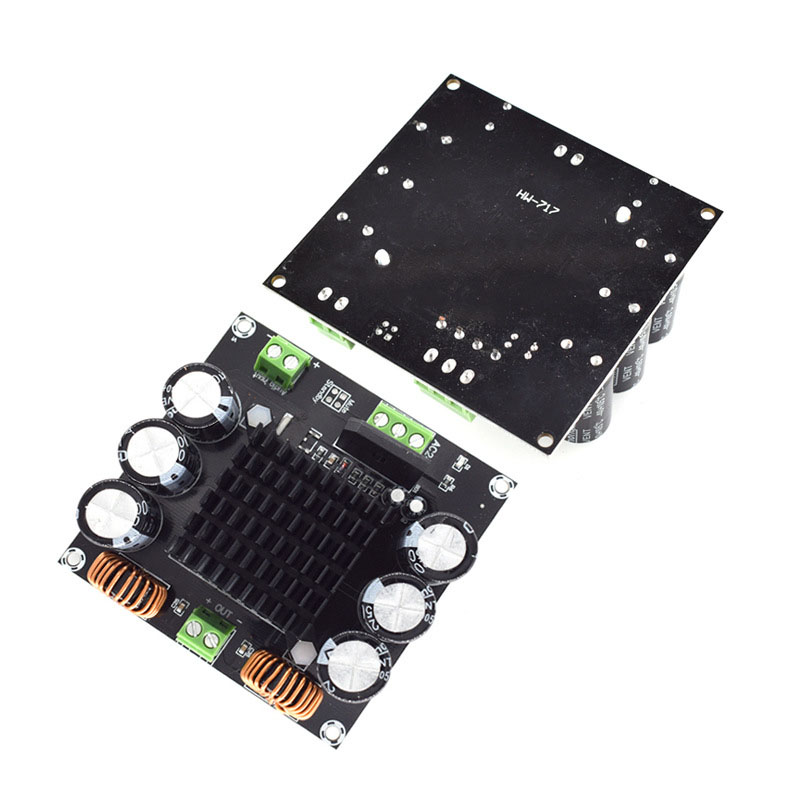

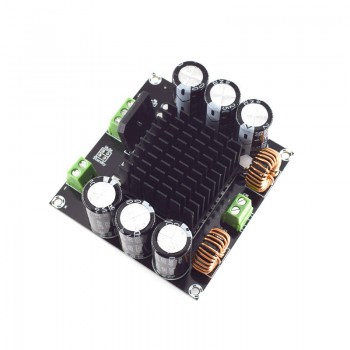

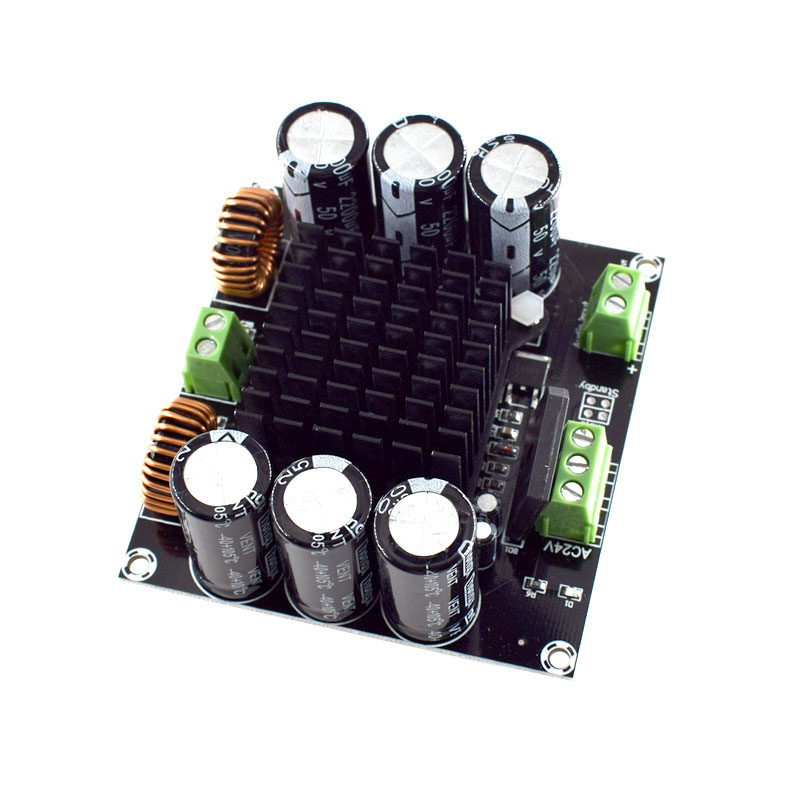

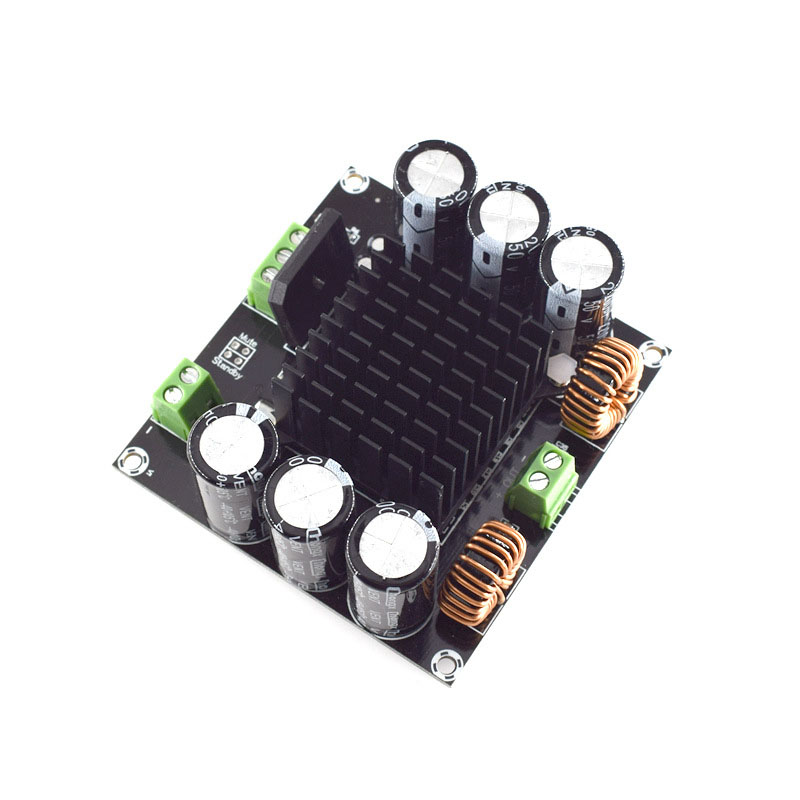

High power monaural digital amplifier board TDA8954TH core BTL mode fever level 420W
Manufacturer
Manufacturer Product Number
TDA8954TH
Description
High power monaural digital amplifier board TDA8954TH
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Module Parameter
Input voltage: 12V-28V (recommended to use 24V dual ring voltage)
Core chip: TDA8954TH
Output power: 420W
Number of channels: Mono
Output impedance: Recommended 4 Ω (supports 2 Ω -8 Ω)

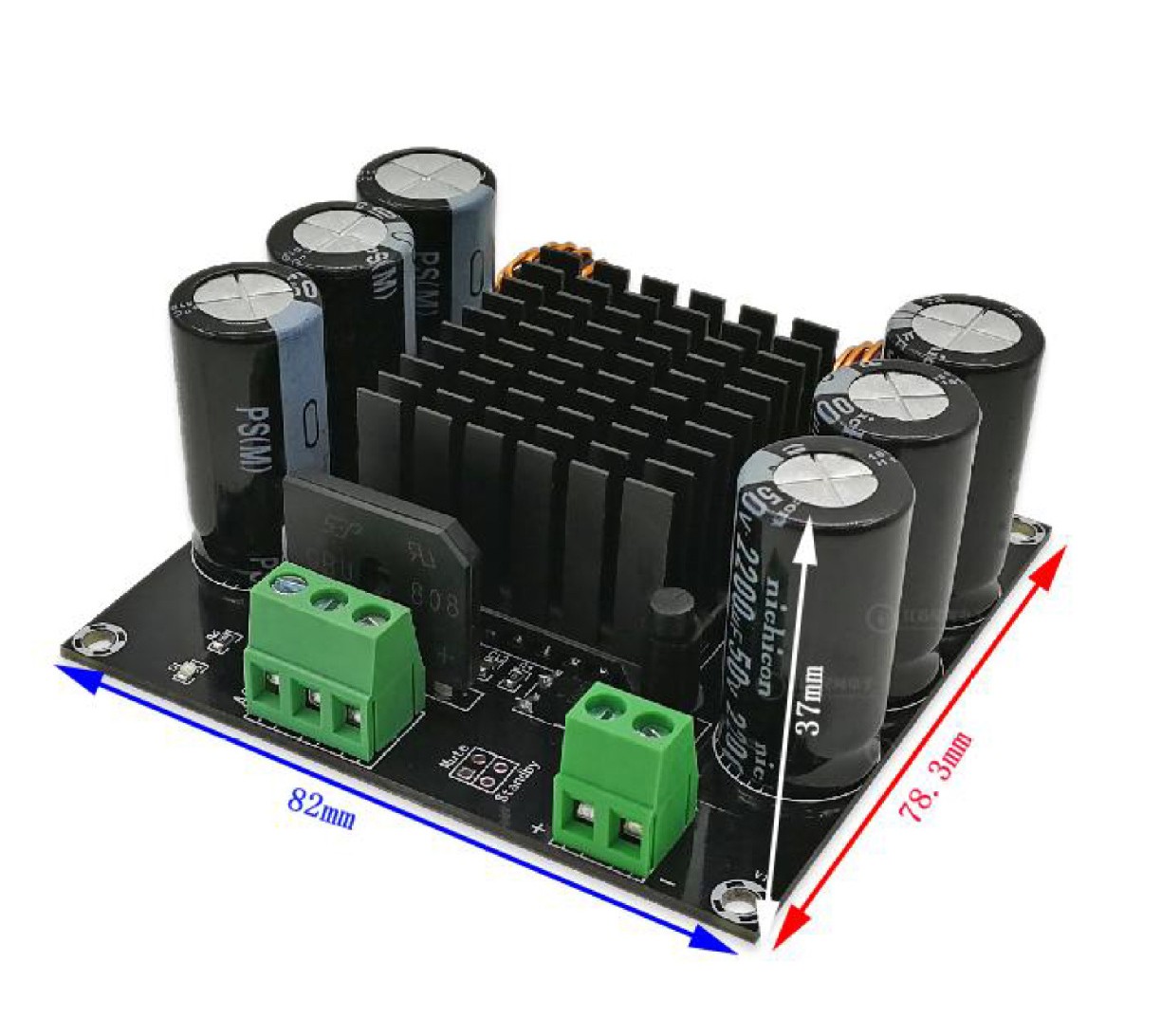

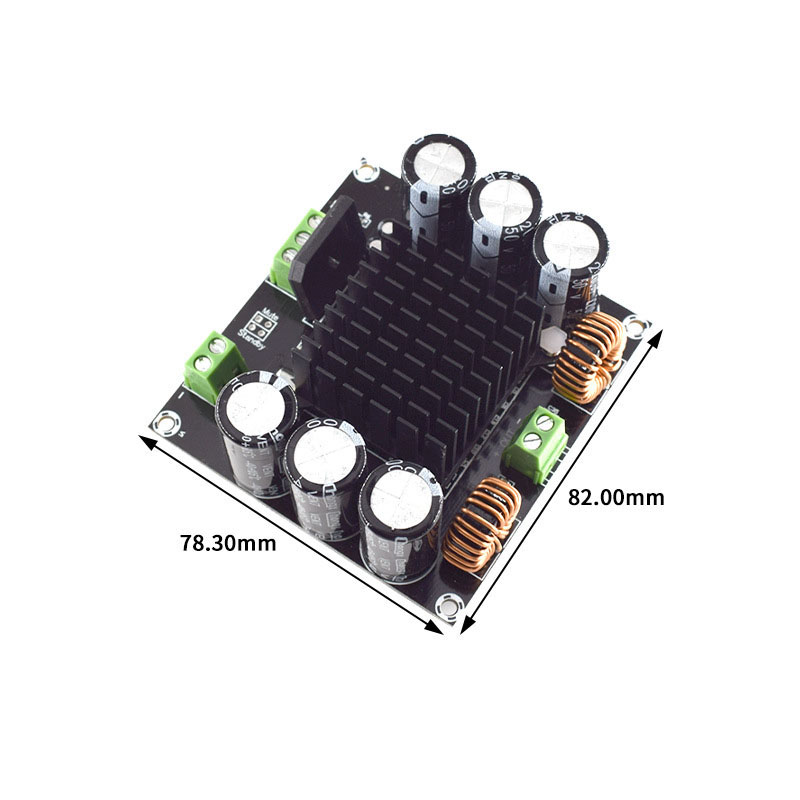

Appearance size 82MM * 78.3MM * 37MM
The net weight of the product is about 121G
Product features:
420w mono high power
New TDA8954TH Core
Large magnetic ring inductor, wrapped with copper core wire
1.6mm double-layer high-density fiberglass circuit board
2 * 3 array 2200uF large capacity electrolytic capacitor, providing continuous power support for the later stage
Product Instructions:

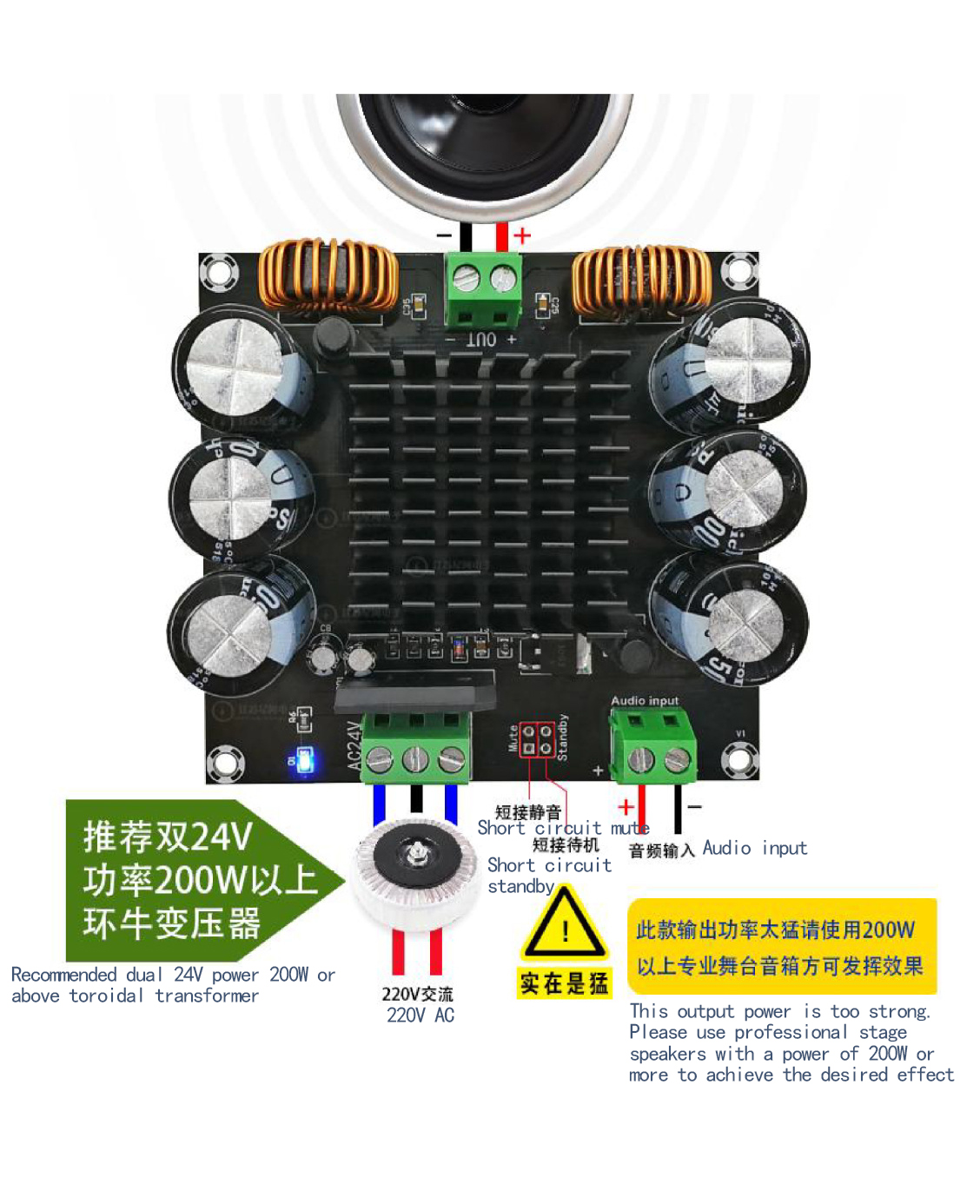

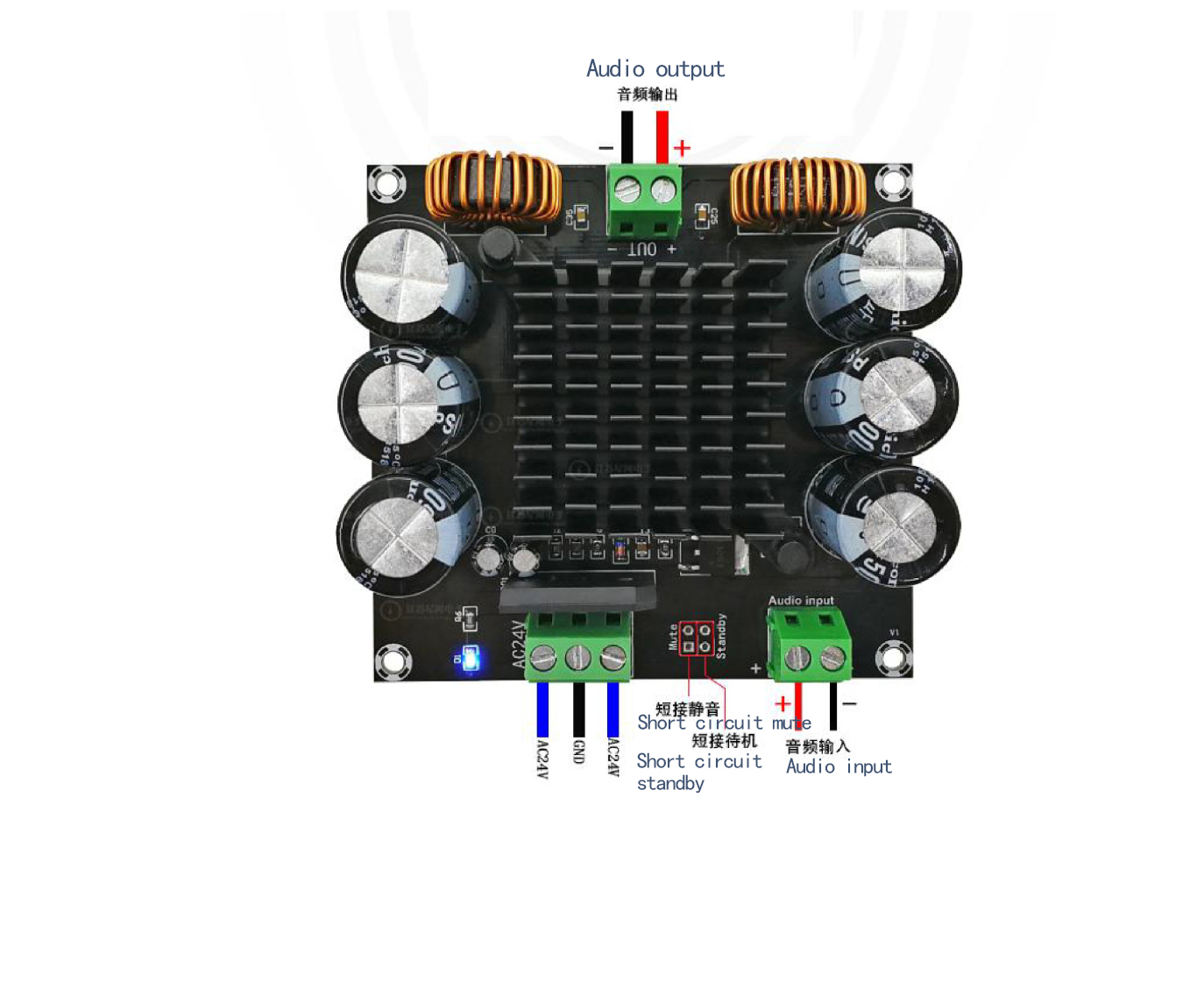

The power supply uses dual 24V AC power, and it is recommended to use a 24V 200W or higher toroidal transformer. The impedance of the external speaker for audio output is between 20-80. The specific connection method is shown in the figure:

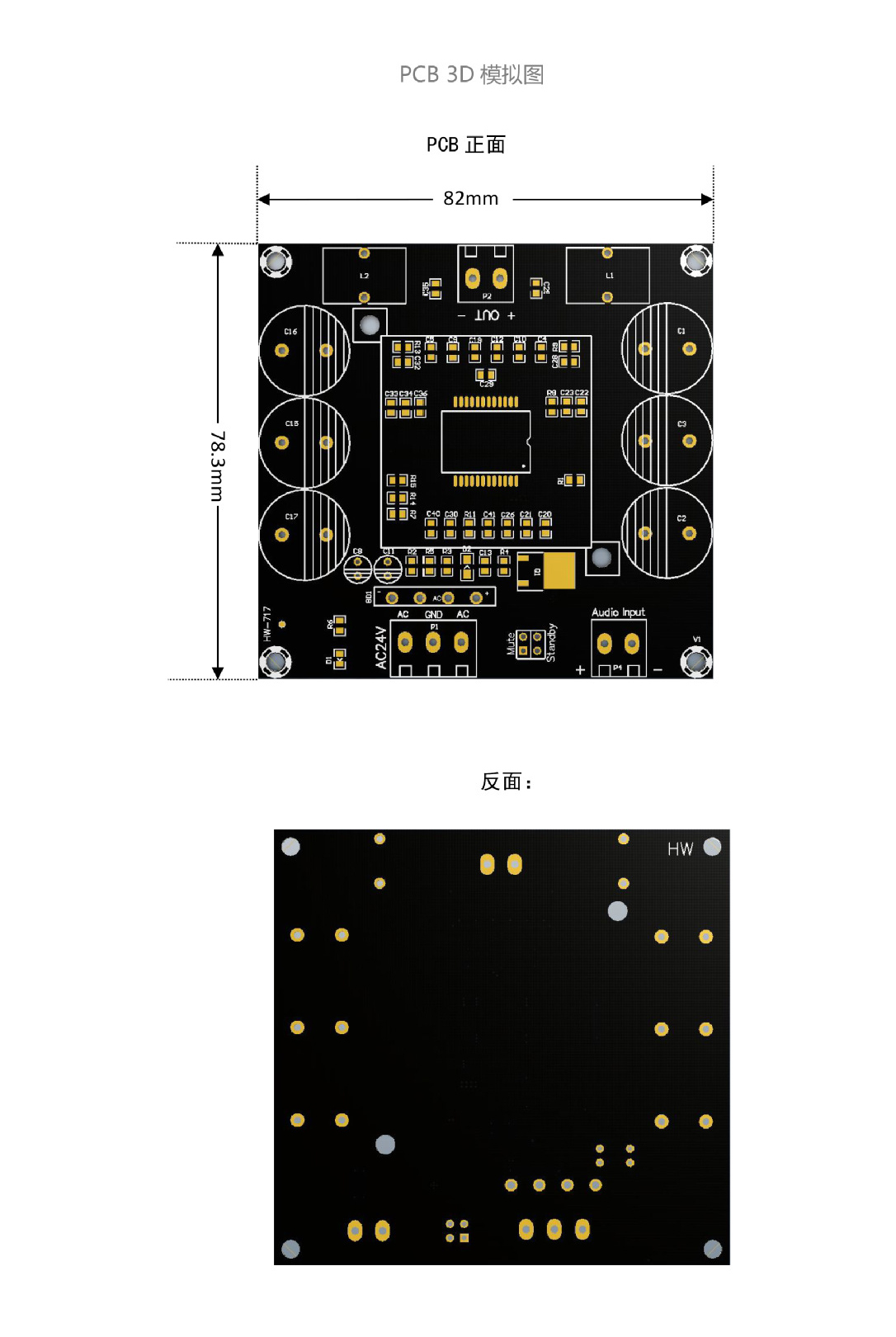

Product Size
Product Show
