temperature and humidity sensor module high-precision humidity sensor probe DHT11 AHT10 upgraded version AHT20 I2C
Manufacturer
Manufacturer Product Number
AHT20 I2C
Description
AHT20 Temperature and Humidity Sensor Module
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
Product model: AHT20
Power supply voltage: 2.0-5.5V DC
Measurement range (humidity): 0~100%RH
Measurement range (temperature): -40~+85℃
Humidity accuracy: ±2%RH (25C)
Temperature accuracy: ±0.3℃
Resolution: Temperature: 0.01C Humidity: 0.024%RH
Output signal: 12C signal

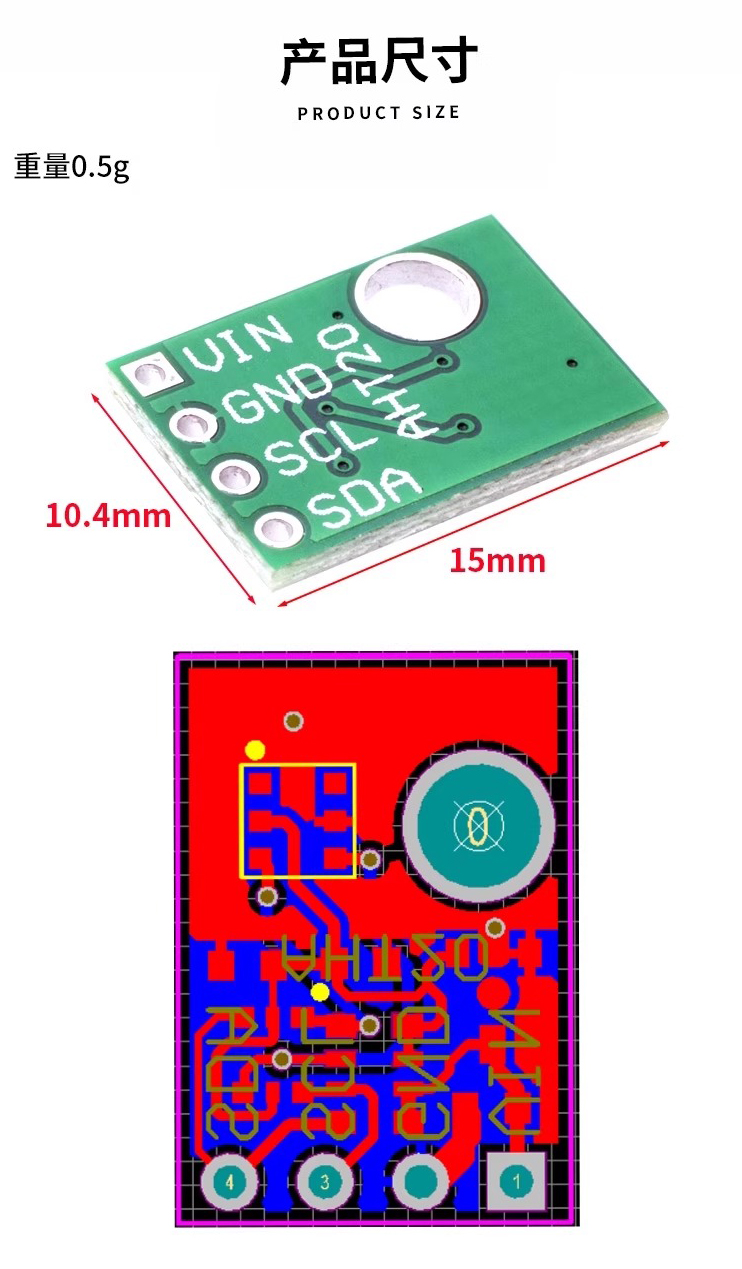

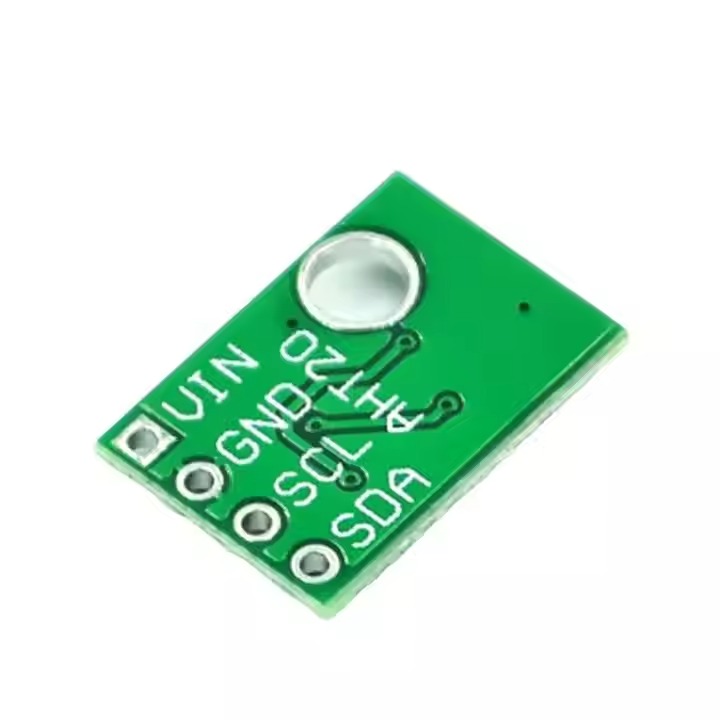

Pin definition
1 VIN: power supply voltage
2 GND: power ground
3 SCL: serial clock, bidirectional
4 SDA: serial data, bidirectional

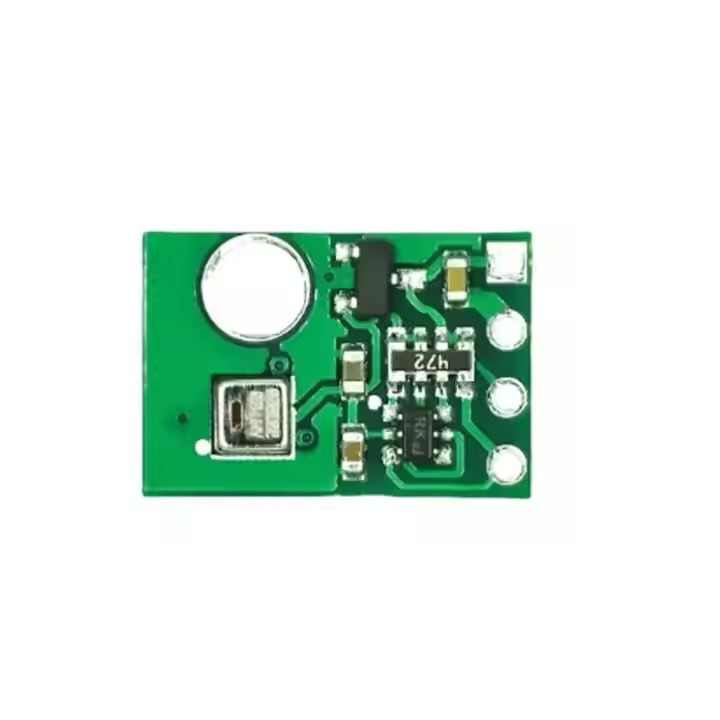

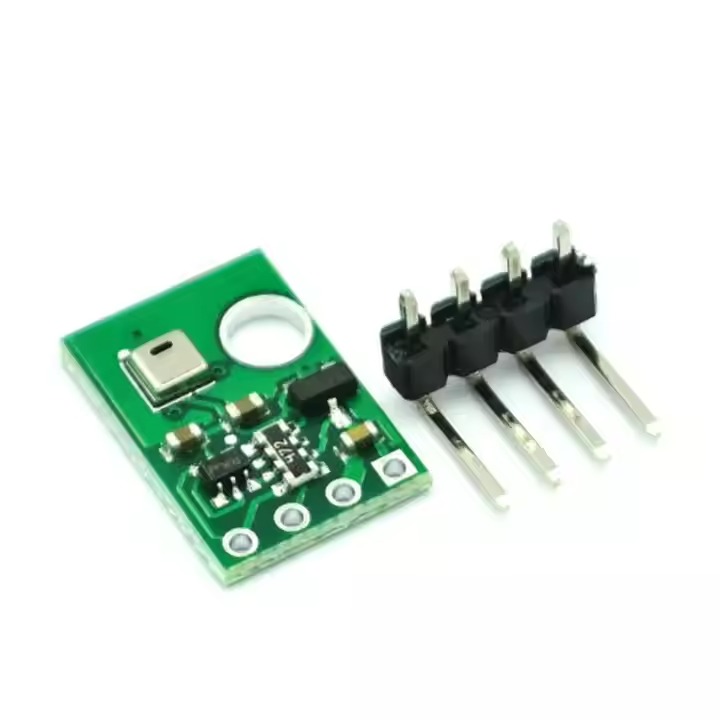

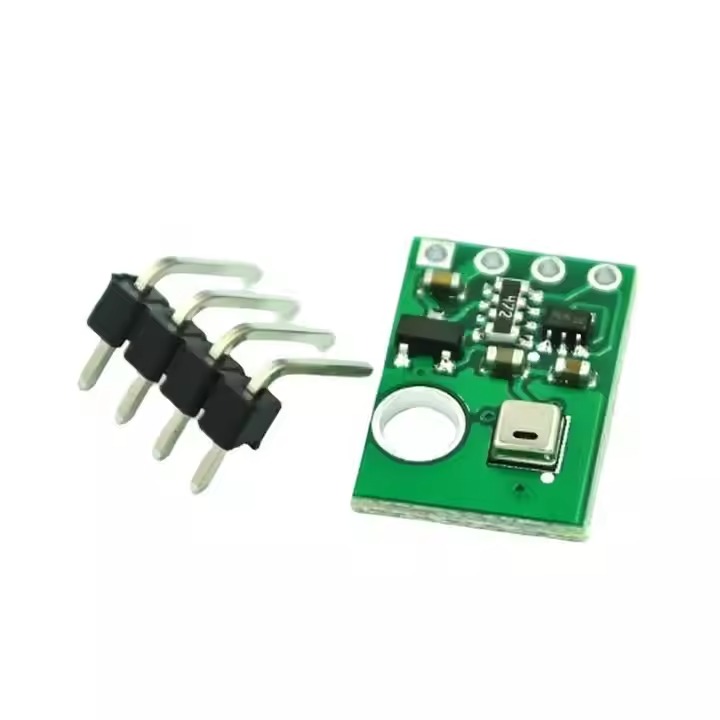

Product Photos
