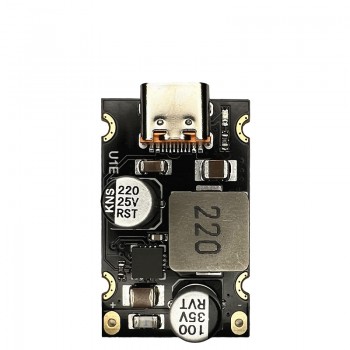

PD65W fast charging module Type-C interface PD QCSCP PPS fast charging full protocol charger module

Product Features

Support PD3.1 (PPS), QC3.0, SCP

Equipped with protection functions, including input overvoltage and undervoltage protection, input overcurrent protection, output overcurrent and short circuit protection, and overall over temperature protection

Maximum output 20V 3.25A

Input 8~30V (can only reduce voltage)

The DC model is divided into two types: 5521 and 5525. 5521 has an outer diameter of 5.5mm and an inner diameter of 2.1mm; 5525: Outer diameter 5.5mm, inner diameter 2.5mm.

Product Parameters:

Input voltage: DC 8~30V

Output voltage: When connected to a TYPE-C compatible power receiving device, it automatically adjusts between 3.3V and 21V (the input voltage should be higher than the output voltage, and to trigger 20V fast charging, the input voltage should be higher than 20V)

Output power: Maximum 65W (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Maximum output: 20V3.25A

Conversion efficiency: 92~97

Output voltage ripple:< 200mV

No load current:< 3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent and short circuit protection

Whole machine over temperature protection

Supported charging protocols: PD3.1(PPS)、OC3.0、SCP

Product Descriptions

Standard model: 32x20x10mm (excluding the 1mm protrusion of the C-port female seat)

With DC seat: 44x20x10mm (excluding 1mm protruding from the C-port female seat)

Supported charging protocols:

BC1.2, Apple Protocol

Qualcomm OC2.0 and OC3.0

Huawei Fast Charging Protocol FCP and SCP

Samsung Fast Charge Protocol AFC

MTK PE+1.1 and MTK PE+2.0

PD2.0/PD3.1 (PPS) output protocol

Product application: Fast charging output for various power supply transformations

Product Instructions

When using a 20-24V power adapter as input, it is recommended to first power on the power supply before connecting to this module. Otherwise, there may be a power matching error in the module due to slow power on, resulting in the inability to output 65W.

The DC model is divided into two types: 5521 and 5525

5521: Outer diameter 5.5mm, inner diameter 2.1mm;

5525: Outer diameter 5.5mm, inner diameter 2.5mm

The length of the DC model has increased by 12mm compared to the standard model, reaching 44mm. Both the Type-C female seat and the DC seat protrude from the board edge by about 1mm. The 5521 model is also compatible with the 5525 plug with tuning fork spring pieces

Product temperature rise and output ripple:

Test conditions: Input voltage of 24V, ambient temperature of 24 ° C, load of a laptop computer supporting PD65W (with approximately 50 battery capacity), computer pressure test to ensure full power supply of 65W.
