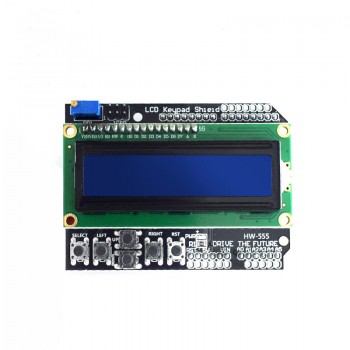

LCD1602 Character LCD Yellow Green Screen Input/Output Expansion Board LCD Keypad Shield
Manufacturer
Manufacturer Product Number
LCD1602
Description
LCD1602 Input/Output Expansion Board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Introduction
The LCD KEYPAD SHIELD uses an ARDUINO expansion board with a 2-line 16 character LCD screen for input and output. It has contrast adjustment and backlight, 6 momentary buttons from left to right, SELECT, LEFT, UP, DOWN, RIGHT, and RESETPINS. Unused IO ports are extended for backup, fully utilizing the IO ports.
Occupying digital port: PIN4(DB4),5(DB5),6(DB6),7(DB7),8(RS),9(E), 10 (backlight control), analog key port A0.
Product Parameters
1. Display capacity: 2 * 16 characters
2. Working voltage: DC 4.5-5.5V
Pin allocation
| 引脚 Pin |
描述 Describe |
| 模拟脚 0 Simulated foot 0 |
按钮(选择、上、右、下、左、复位) Buttons (Select, Up, Right, Down, Left, Reset) |
| 数字脚 4 Number Pin 4 |
DB4 |
| 数字脚 5 Number Pin 5 |
DB5 |
| 数字脚 6 Number Pin 6 |
DB6 |
| 数字脚 7 Number Pin 7 |
DB7 |
| 数字脚 8 Number Pin 8 |
RS(数据或信号显示选择) RS (Data or Signal Display Selection) |
| 数字脚 9 Number Pin 9 |
使能(开始数据的读/写) Enable (start reading/writing data) |
| 数字脚 10 Number Pin 10 |
背光控制 Backlight control |
Product Functions
Product Size
Product Show
