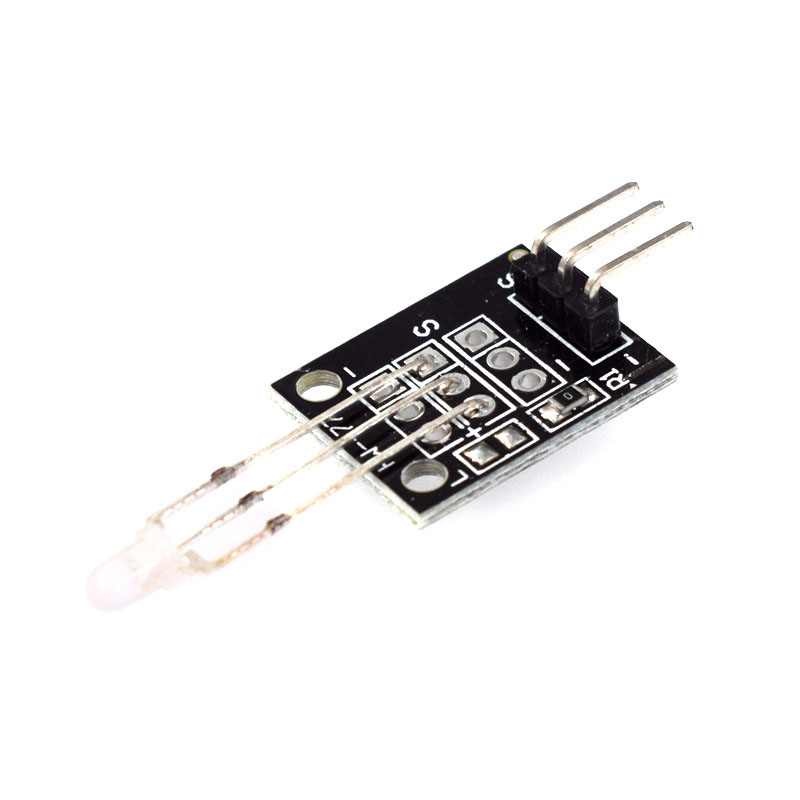

Dual color LED common cathode module 3MM KY-029 module
Manufacturer
Manufacturer Product Number
KY-029
Description
Dual color LED common cathode module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
Voltage used: DC2.0-2.5V
Current usage: 10MA
Luminous angle: 150 °
Wavelength (G+R): 571+644NM
Luminous intensity: 20-40 (G); 40-80(R)MCD
Product Introduction
This product is a 3mm diameter common cathode red green dual color LED module. According to the functional diagram, connecting the positive and negative poles of the power supply to the pins of the module can emit corresponding bright light (the positive pole connected to the R pin emits red light; the positive pole connected to the G pin emits green light).

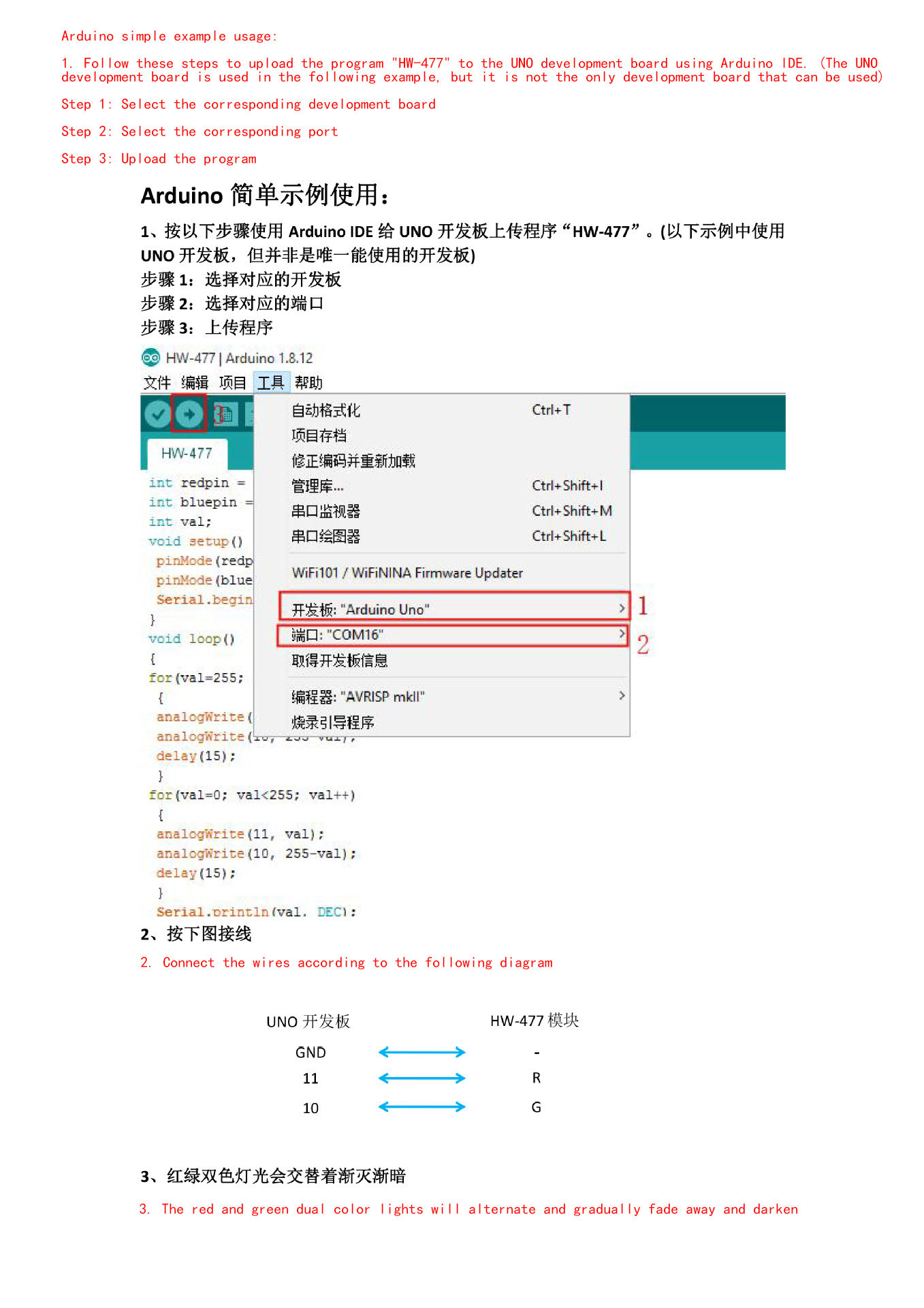

Users can control the module by writing programs to control the microcontroller, such as controlling the on/off interval of lights, which color of light is on, and combining the time interval and light color according to a regular pattern to create different lighting effects.

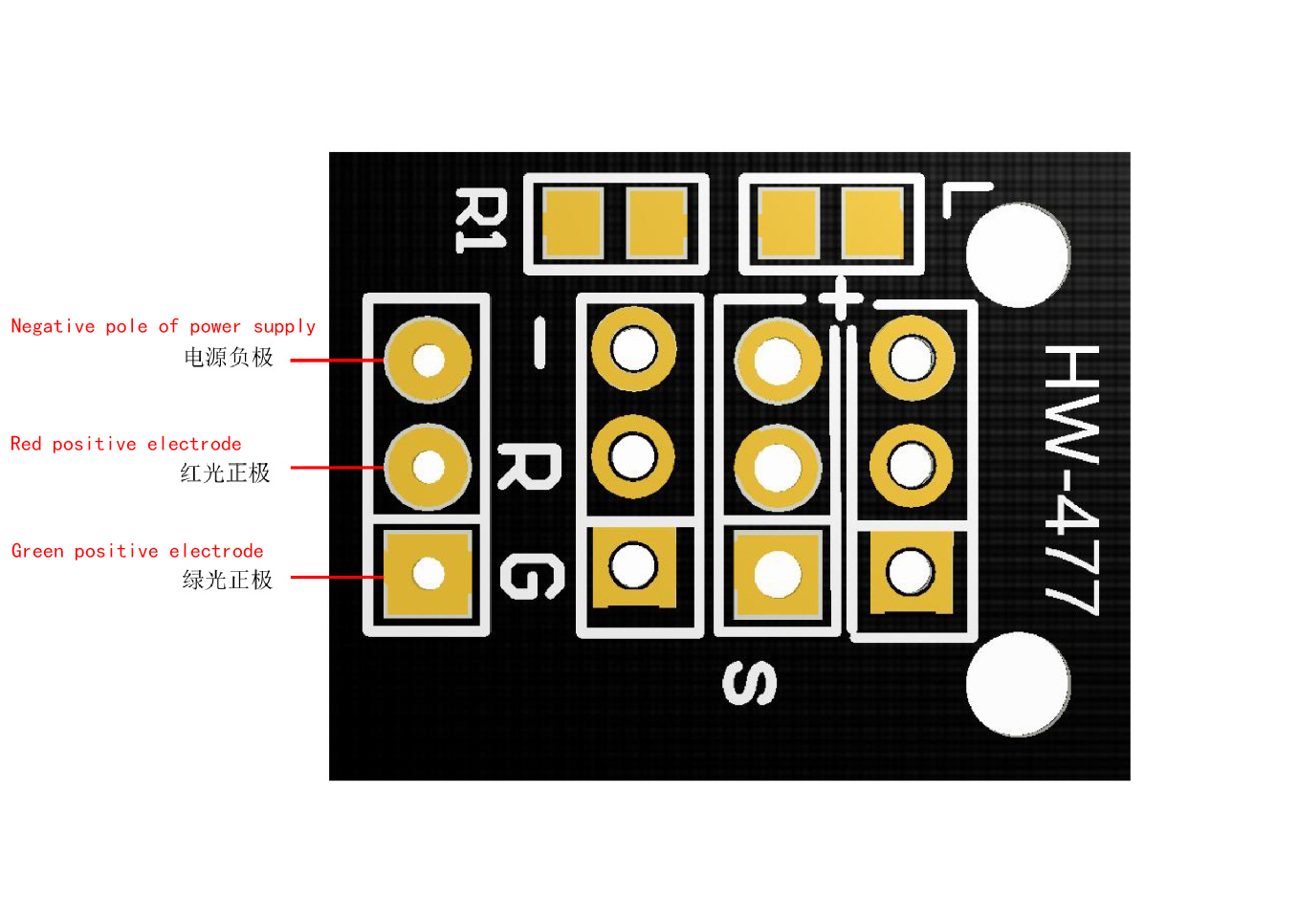

Product Functions

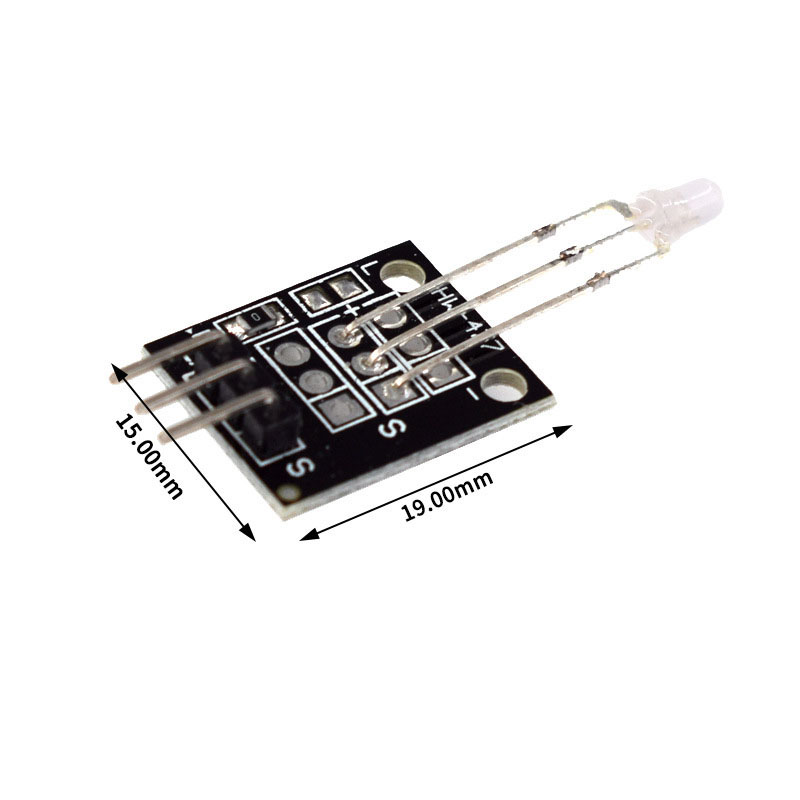

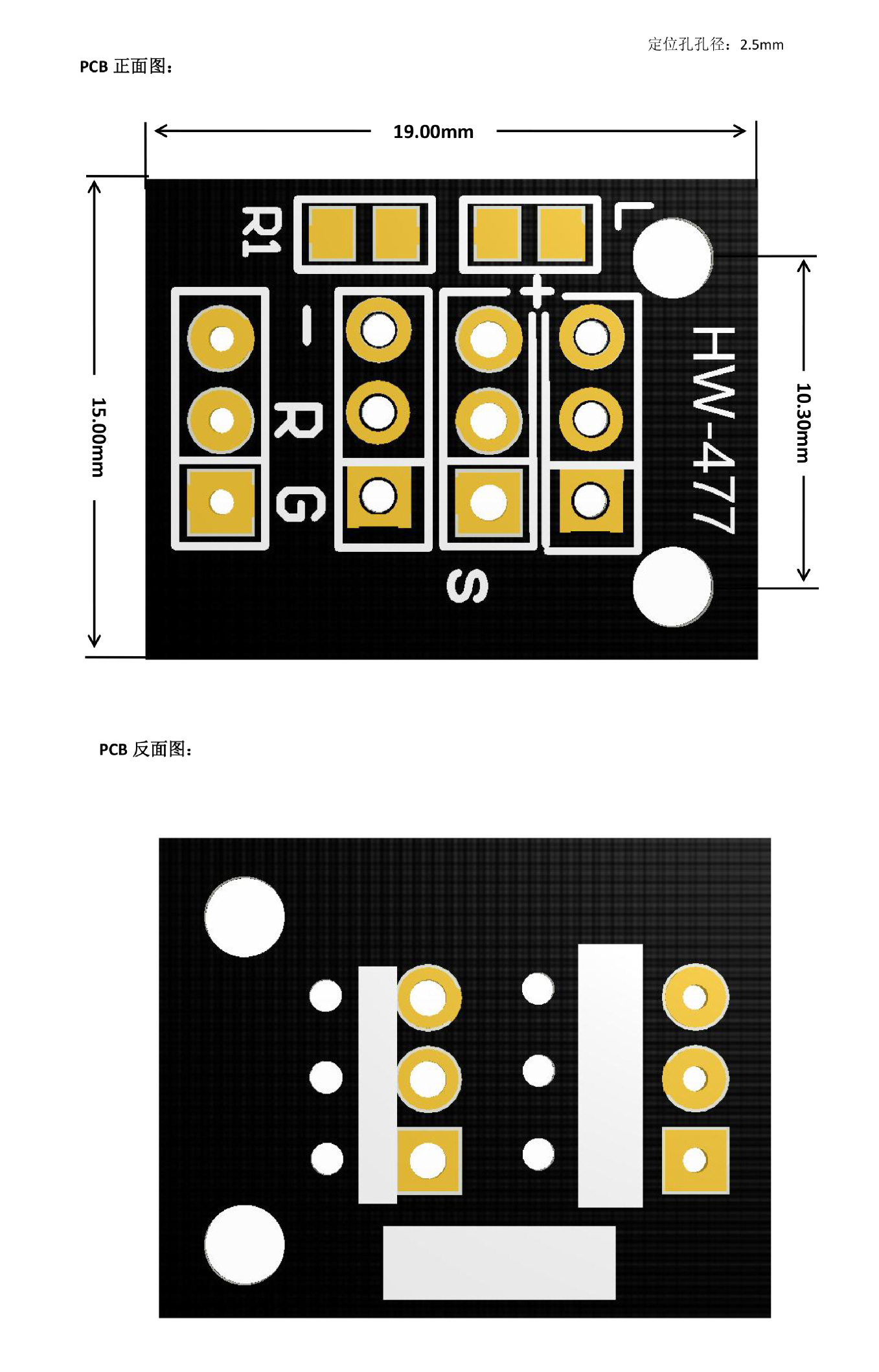

Product Size

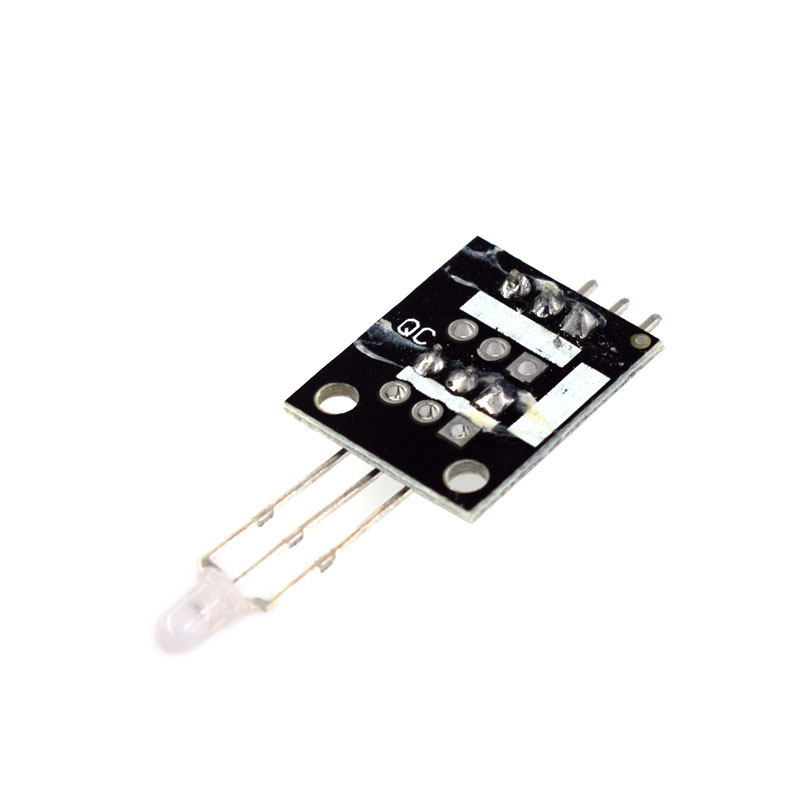

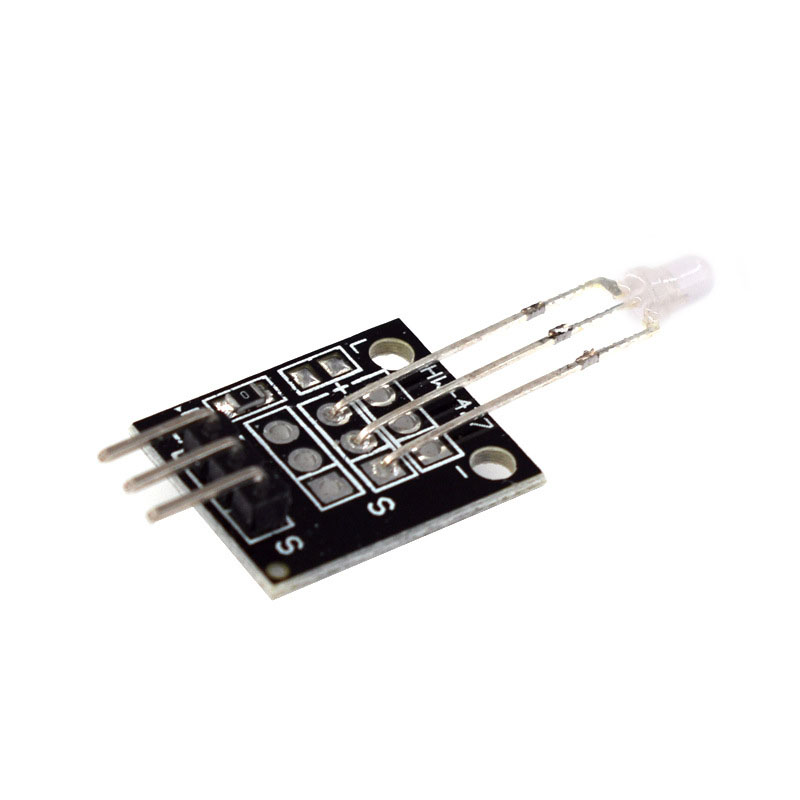

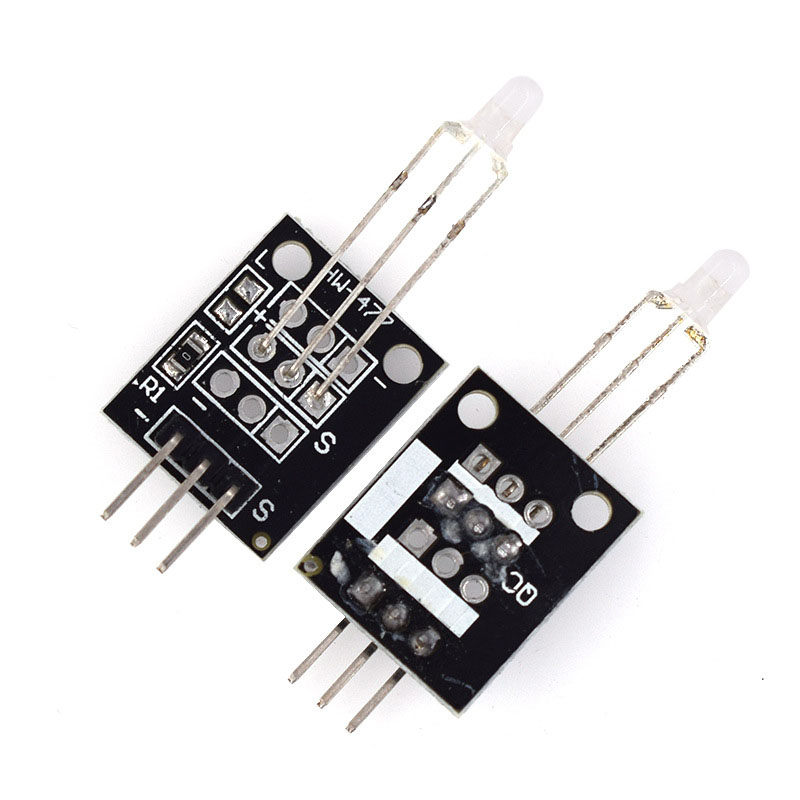

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
