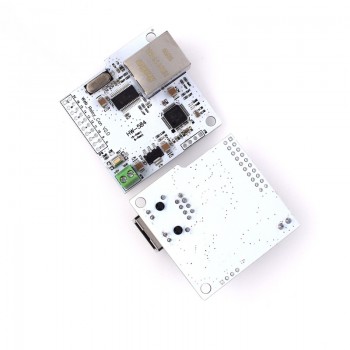

16 channel W5100 network control switch 5V network relay module IoT

​Product Description

The 16 channel network module is a network relay control module based on a 32-bit system. Through this module, you can control the maintenance appliance module through the Internet or the router's intranet, so as to achieve the purpose of remote control of electrical switches and centralized power management. This product can be set and controlled directly through the front browser. Please refer to the instructions for use.

Due to the absence of relays in this product, a 16 channel 12V relay HW-532 module is used for push storage.

Product Parameters

External power supply voltage: 5.5V DC2A MAX

Maximum power with load: 5W

Relay load capacity: 250VAC10A (2500W AC) or 30VDC10A (300W)

The actual power used should be within 70% of the nominal value of the relay to avoid affecting its service life

Maximum lifespan of relay: 1 million cycles

Working temperature:- 30~85°C

Relays can directly control various devices and loads:

There are 8 normally open and 8 normally closed contacts;

The blue KF301 terminal is more convenient for connecting control wires,

Module size: 138M * 56MM * 18.5MM (length * width * height), net weight: 150G

There are 2 fixed bolt holes with a diameter of 3.1mm
