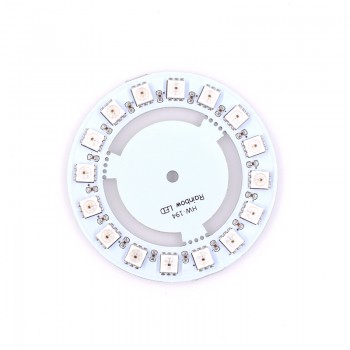

16 bit circular 5050RGB full-color LED module flow light microcontroller accessory (E2B4)

Product Parameter

Model: 16 bit circular 5050 full-color LED module

Size: 60mm diameter

Chip: WS2811 (built-in in LED)

Color: Three primary colors (red, green, blue)

Number of LED chips: 16 RGB chips

Product size: 33 * 60MM

LED： 5050 Package RGB Full Color High Brightness

Voltage: 5V

Port: Number

5050 high brightness LED, built-in control chip, only 1 IO port is needed to control multiple LEDs

The chip has a built-in shaping circuit, which prevents signal distortion from accumulating and ensures stable display

256 level brightness adjustment for three primary colors, 160000 true color display effect, scanning frequency not less than 400Hz/S

Serial serial interface, capable of receiving and decoding data through a single signal line

When the refresh rate is 30 frames per second, the number of consecutive points in low-speed cascading mode should not be less than 512

The maximum data transmission and reception speed can reach 800Kbps

High brightness LED with consistent light color and brightness

There are connection interfaces at both ends, which can be directly connected

Product  Shipping List

One 1.8-inch 5050 full-color LED module (finished product, tested, packaged in an electrostatic bag)

Product Introduction

The product integrates 16 5050 RGB light beads, and the on/off of each bead can be controlled separately. RGB three primary colors can be configured arbitrarily

Product Functions

It is suitable for various platforms such as 51/AVR/ARM/Arduino. By programming the microcontroller and using it to control the RGB light lighting mode and emission color of the module.

Here is an Arduino program that controls the module to emit light.

#include <Adafruit_NeoPixel.h>

#ifdef_AVR_

#include <avr/power.h>

#en dif

#define PlN 6
