Nano V3.0 ATMEGA328P CH340G Improved Electronic Building Blocks Interactive Media Welding

Product usage method

1. Download the Arduino IDE

Download link: http://. cc/en/Main/Software (copy and open)

2. Download USB chip driver

Download link: http://wch.cn/downloads.php?name=pro&proid=65

Download link for foreign customers: http://www.wch-ic.com/download/list.asp?id=126

3. Plug in the NANO development board, and the driver will automatically install

4. Select the NANO board in the die

5. Choose the COM port, which can be queried on my computer. Just now, the port in your Uno development board

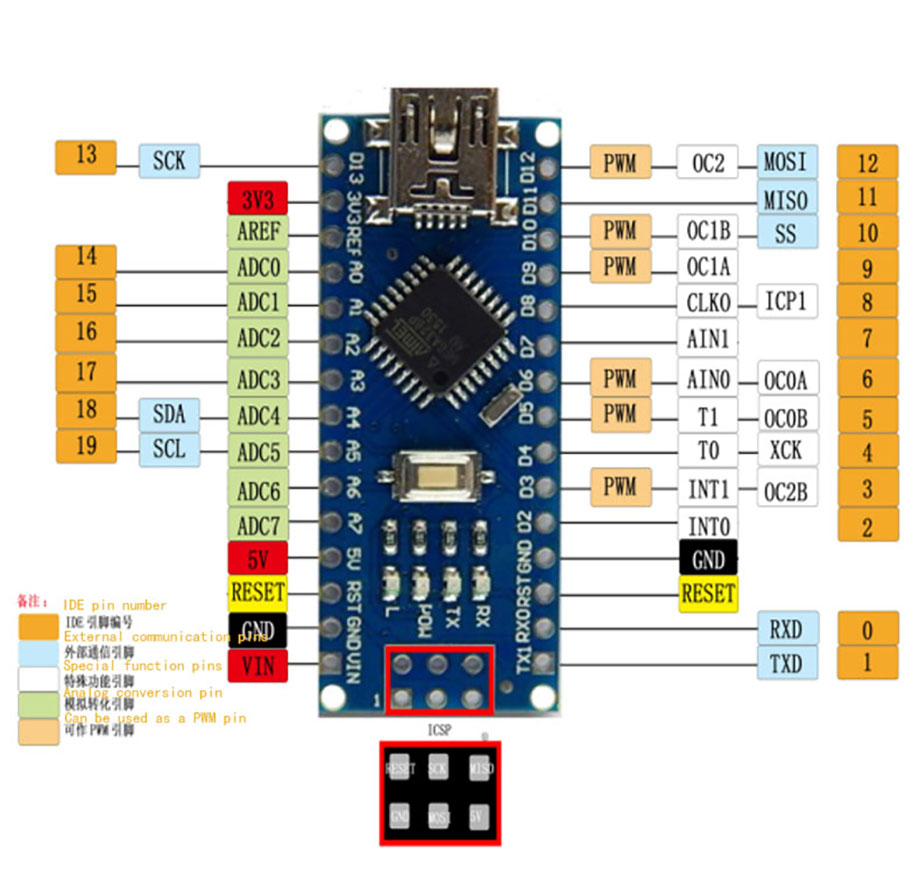

Product parameters

1.12 digital input/output ports D2-D13.

2.8 analog input ports A0-A7.

3.1 TTL level serial port transceiver port RX/TX.

4.6 PWM ports, D3,D5,D6,D9,D10,D11。

5. Adopting ATMELLATMEGA328P-AU microcontroller.

6. Supports USB download and power supply.

7. Supports external 3.3V-12V DC power supply.

8. Supports lithium battery and 9V battery power supply.

9. Support ISP downloads.

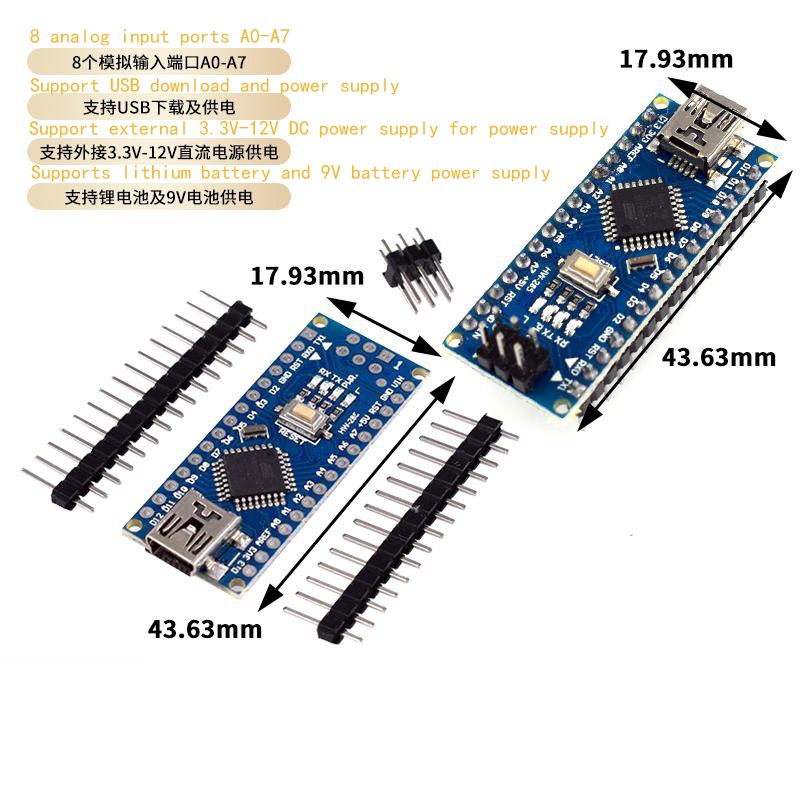

Product Size

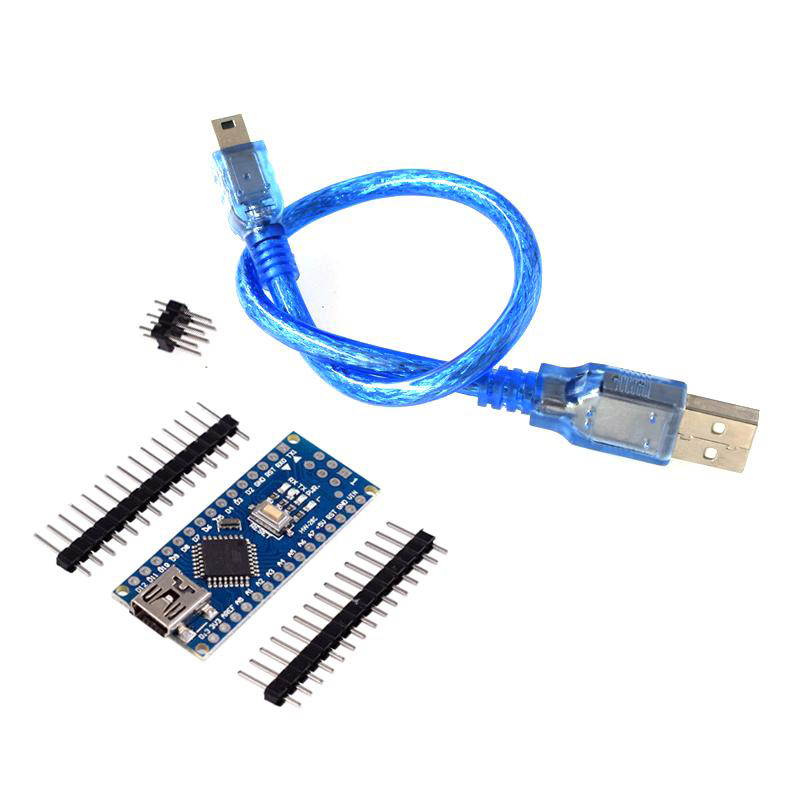

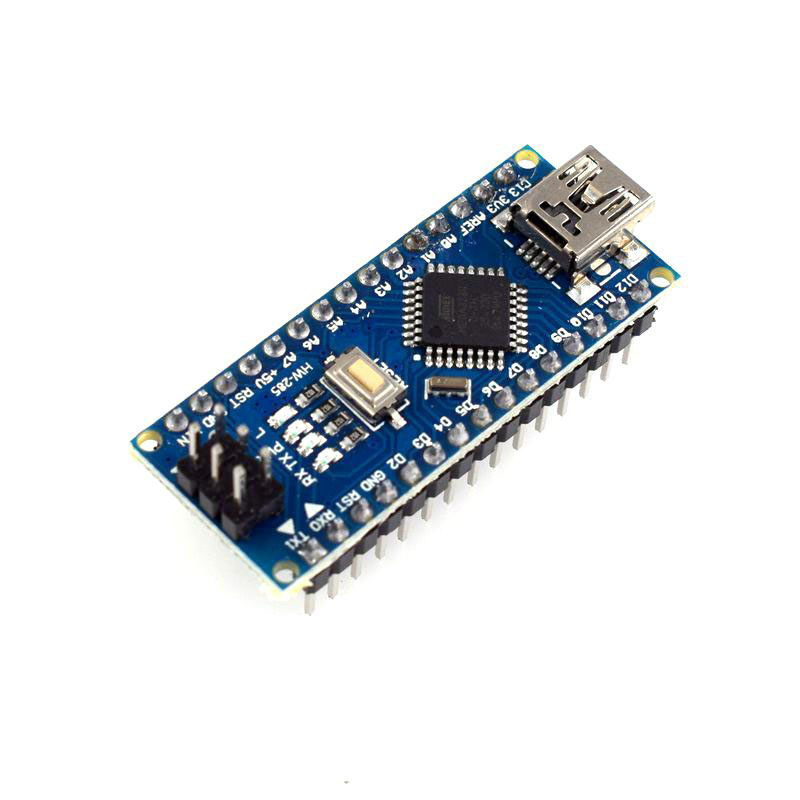

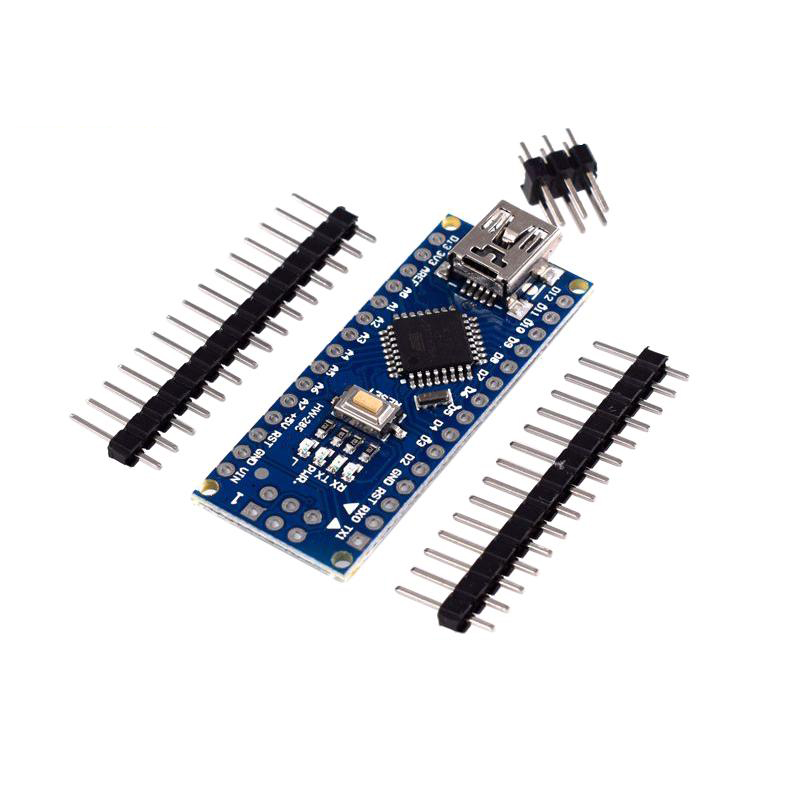

Product Show
