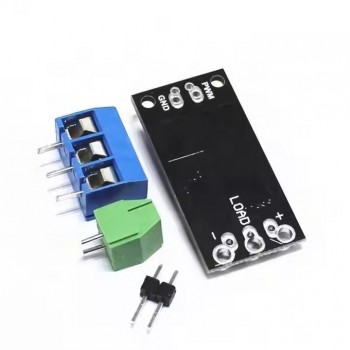

Isolated MOSFET MOS tube Field effect tube module replacement relay FR120N LR7843 AOD4184

Product Details

With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. Compatible with MCU and Arduino control board, 3V or 5V signal. High level start, low level stop, PWM speed regulation. Widely used to control the start and stop of the motor, solenoid valve and other tributary equipment. The signal input side can be welded to the terminal or pin itself, compatible breadboard. Output can be soldered to the terminal or direct wire.

Product Specifications

• Product Type: MOSFET

• Number of Channels: 1 Channel

• Transistor Polarity: N-Channel

• Vds - Drain-Source Breakdown Voltage: 100 V

• Id - Continuous Drain Current: 9.4 A

• Rds On - Drain-Source Resistance: 210 mOhms

• Vgs th - Gate-Source Threshold Voltage: 4 V

• Vgs - Gate-Source Voltage: 20 V

• Qg - Gate Charge: 25 nC

• Minimum Operating Temperature: - 55 C

• Maximum Operating Temperature: + 175 C

• Pd - Power Dissipation: 48 W

• Breadboard Friendly : Yes

• Transistor Type: N-Channel

• Max. Drain Current: 9.4A

• Max. VDS: 100V

Product Photos
