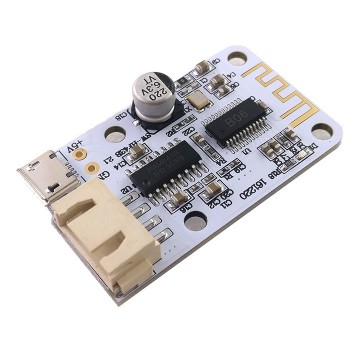

Mini Bluetooth Speaker Digital Amplifier Board USB Powered Bluetooth Receiver Digital Amplifier Module
Manufacturer
Manufacturer Product Number
M341
Description
Mini Bluetooth Speaker Digital Amplifier Board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
-
1. Audio input method: Bluetooth audio receiver
-
2. Power supply mode: MICROUSB 5V
-
3. Dual channel output power: 2 * 3W
-
4. Drive horn impedance: 4-8 Ω
-
5. Output interface: 2.54MM needle pitch 4-pin holder
Product Functions
1. Wiring: First, connect the speakers or speakers that need to be connected to the left and right channels to the module with the wires
2. When the module is powered on, the blue status indicator light flashes rapidly, and a voice message can be heard saying "me Bluetooth device is ready to pair", indicating that Bluetooth is waiting for pairing
3. Turn on your phone's Bluetooth, search for the name "Bluetooth" and connect it. When you hear the voice message "The Bluetooth device is corected successfully", it means the Bluetooth connection is successful. At this time, the blue status indicator light stops flashing and stays on
When playing music, the blue status indicator light flashes slowly
Product Size
Product Show
