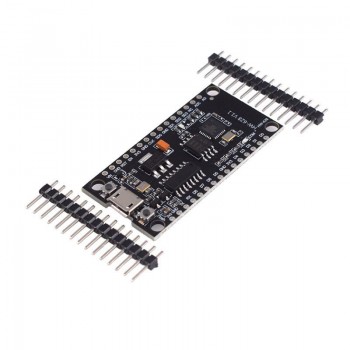

The new CH340G NodeMCU is compatible with the old ESP8266 32M IoT

Manufacturer

Original

Manufacturer Product Number

M354

Description

CH340G NodeMCU is compatible with the old ESP8266 32M Development Board

Package Condition

Bulk

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Parameters

Based on ESP8266 WIFI chip

Compatible with ARDUINO programming using ARDUINOIDE

ESP burning tool can be used for burning

11 * 1/O pin

1 * ADC pin

1 * RST button

1 * FLASH button

Product Functions

引脚 Pin	说明 Explain	IC内部引脚 Internal pins of IC
D0		GPIO16
D1		GPI05
D2		GPI04
D3		GPI00
D4		GPI02
D5		GP1O14
D6		GPI012
D7		GPI013
D8		GPIO15
A0	ADC
ADC	RESERVED
SD3		GPI010
SD2		GPI09
SD1		MOSI
SD0		MISO
NC		CS0
CLK		SCLK
EN	使能端口高电平有效 Enable port high level to be effective	EN
RST	复位 Reset	RST
RX	串口接收 Serial port reception	RXD
TX	串口发送 Serial port sending	TXD
3.3V	3.3v供电外部电源输出电流建议在 500mA 以上 The recommended output current for external power supply with 3.3V power supply is above 500mA	VCC
GND	接地 Grounding
VIN	5V

详情-05

详情-06

详情-07

详情-03

Product Size

详情-08

Product Show

Payment&Transportation

详情8.1

Official Certificate&Certificate

详情页3.1

Multiple product supply

详情5.1

Company office environment

详情6.1

Warehouse Real Shot

Standard packaging
