GY-521 MPU-6050 module three-axis acceleration gyroscope 6DOF module with code schematic

Product Introduction

Name: MPU-6050 module (three-axis gyroscope+three-axis acceleration)

Using chips: MPU-6050

Power supply: 3-5V (internal low voltage differential stabilization)

Communication method: Standard IIC communication protocol

The chip is equipped with a 16 bit AD converter for 16 bit data output

Gyroscope range: ± 250, 500, 1000, 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

Adopting gold-plated PCB and machine soldering process to ensure quality

Pin spacing 2.54mm

Product Descriptions

The MPU-6000 is the world's first integrated 6-axis motion processing component. Compared to multi-component solutions, it eliminates the problem of inter axis differences when combining gyroscopes and accelerators, reducing a significant amount of packaging space. The MPU-6000 integrates a 3-axis gyroscope, 3-axis accelerator, and includes a Digital Motion Processor (DMP) hardware acceleration engine that can be connected to accelerators, magnetic sensors, or other sensors from other brands through a second I2C port. The main I2C port outputs complete 9-axis fusion algorithm technology in the form of a single data stream to the application end

InvenSense's motion processing database can handle complex motion sensing data, reducing the workload of motion processing operations on the operating system and providing an architectural API for application development.

The angular velocity sensing range of MPU-6000 is ± 250, ± 500, ± 1000, and ± 2000 °/sec (dps), which can accurately track fast and slow movements. In addition, the user programmable accelerator sensing range is ± 2g, ± 4g ± 8g, and ± 16g. Product transmission can be achieved through I2C up to 400kHz or SPI up to 20MHz.

The MPU-6000 can operate at different voltages, with VDD power supply voltages of 2.5V ± 5 percent, 3.0V ± 5 percent, or 3.3V ± 5 percent, and logic interface VVDIO power supply of 1.8V ± 5 percent. The packaging size of MPU-6000 is 4x4x0.9mm (QFN), which is a revolutionary size in the industry. Other features include built-in temperature sensors and oscillators with only ± 1% variation in the operating environment.

Product Applications

Motion sensing game

Augmented Reality

Electronic Image Stabilization (EIS)

Optical Image Stabilization (OIS)

Pedestrian navigator

Zero touch gesture user interface

Shortcut for posture

authentication

Product Market

smartphone

Tablet device equipment

Handheld gaming products

Wofang?

3D Remote Control

Portable navigation device

Product Characteristic

Output fusion calculation data of 6-axis or 9-axis rotation matrices, quaternions, and Euler angle formats in digital format.

A 3-axis angular velocity sensor (gyroscope) with a sensitivity of 131 LSBs/°/sec and a full cell sensing range of ± 250, ± 500, ± 1000, and ± 2000 °/sec.

A 3-axis accelerator that is programmable and has a control range of ± 2g, ± 4g, ± 8g, and ± 16g.

Remove the sensitivity between the accelerator and gyroscope axes, reduce the impact of settings and sensor drift.

The Digital Motion Processing (DMP) engine can reduce the load of complex fusion calculation data, sensor synchronization, posture sensing, and more.

The motion processing database supports built-in operation time deviation and magnetic sensor calibration calculation technology for Android, Linux, and Windows, eliminating the need for customers to perform additional calibration.

Temperature sensor with digital output

Sync pin with digital input supports video electronic image stabilization technology and GPS

Programmable interrupts support gesture recognition, pan, zoom in/out, scroll, rapid descent interrupts, high-G interrupts, zero motion sensing, touch sensing, and shake sensing functions.

The VDD supply voltage is 2.5V ± 5 percent, 3.0V ± 5 percent, 3.3V ± 5 percent; VDDIO is 1.8V ± 5 percent

Operating current of gyroscope: 5mA, standby current of gyroscope: 5 μ A; Accelerator operating current: 350 μ A,

Accelerator power-saving mode current: 20μA@10Hz

Up to 400kHz fast mode I2C, or up to 20MHz SPI serial host interface

The built-in frequency generator has a frequency variation of only ± 1 percent across all temperature ranges.

User personally tests

10000 g collision tolerance

The smallest and thinnest packaging tailored for portable products (4x4x0.9mm QFN)

Compliant with RoHS and environmental standards

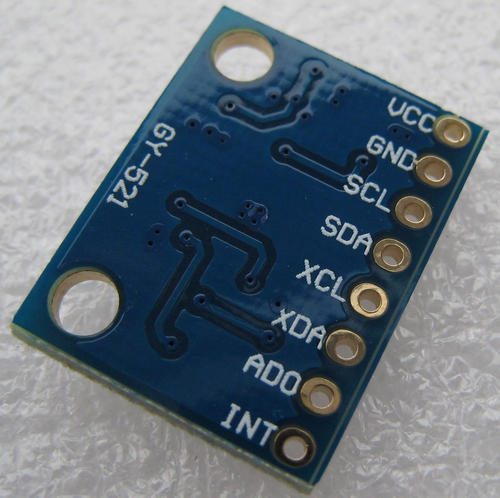

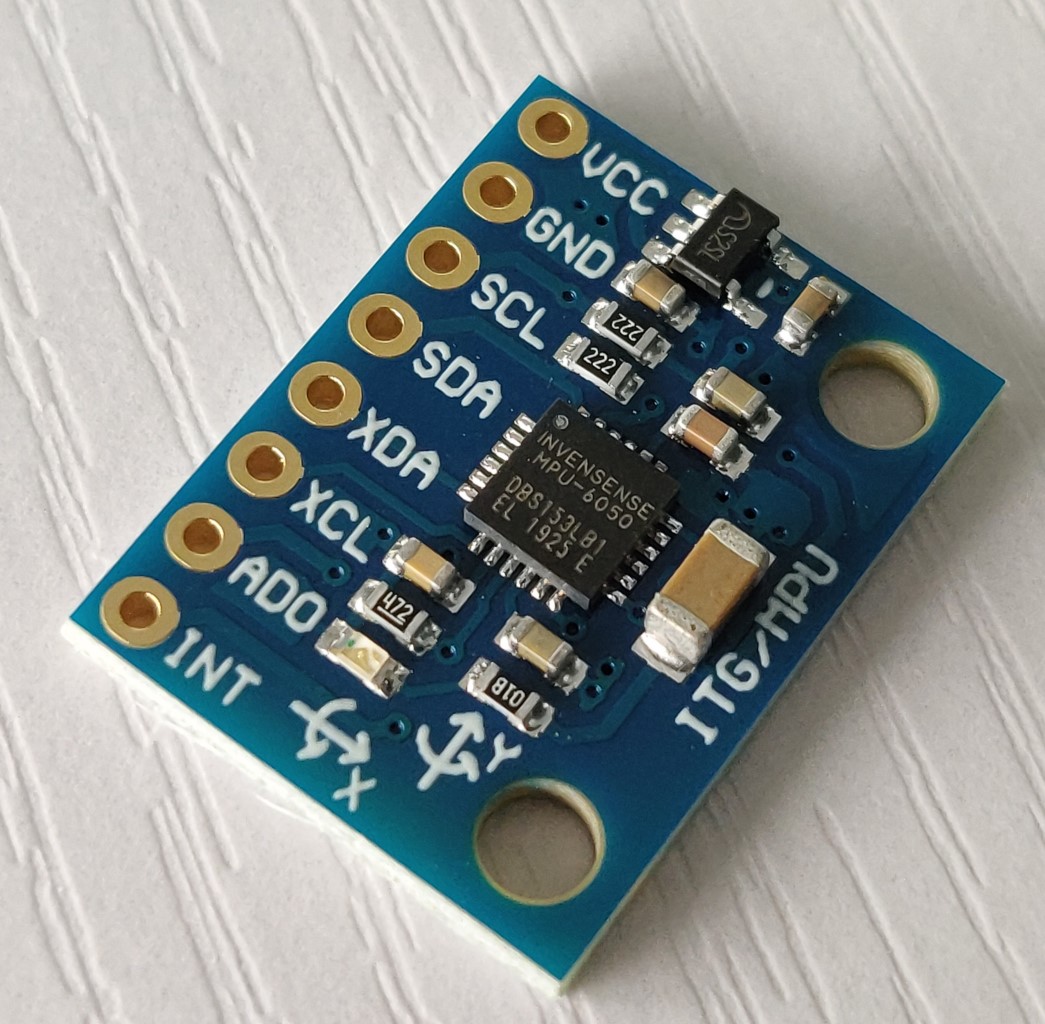

Product Show
