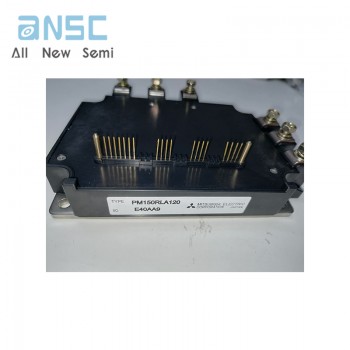

Professional supply Integrated circuit IC PM150RLA120 INTELLIGENT POWER MODULES FLAT-BASE TYPE INSULATED PACKAGE

Product Features

a) Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1µm fine rule process.

For example, typical Vce(sat)=1.9V @Tj=125°C

b) I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.

c) Current rating of brake part increased.

50% for the current rating of inverter part.

 •3φ 150A, 1200V Current-sense IGBT type inverter

 • 75A, 1200V Current-sense regenerative brake IGBT

 • Monolithic gate drive & protection logic

 • Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices)

 • Acoustic noise-less 30kW class inverter application

 • UL Recognized Yellow Card No.E80276(N)

Product Applications

General purpose inverter, servo drives and other motor controls
