Original stock sale E75-2G4M10S 20dBm JN5169 ZigBee module 2.4GHz Wireless Networking Smart Home IoT Module
Manufacturer Product Number
E75-2G4M10S
Description
E75-2G4M10S low-power, high-performance ZigBee module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The E75 series ZigBee module is a low-power, high-performance ZigBee module developed based on the NXP JN516x chip. It provides a complete application integration solution based on the IEEE802.15.4 standard ISM (2.4-2.5GHz) frequency band. Supports protocols such as Fast ZigBee, ZNET, JenNet IP, ZigBee PRO, RF4CE, etc., and can be quickly applied to industrial control, industrial data collection, agricultural control, mining personnel positioning, smart homes, smart remote controllers, and other occasions.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E75-2G4M10S | |
| Working frequency | 2405~2480 MHz | ISM band |
| Transmitting power | 10 dBm | - |
| Receiving sensitivity | -96 dBm | - |
| Test distance | 500m | Clear and open area, antenna gain: 5 dBi, antenna height: 2.5m |
| IC | JN5169/QFN40 | - |
| FLASH | 512 KB | - |
| RAM | 32 KB | - |
| Core | 32bit RISC CPU | - |

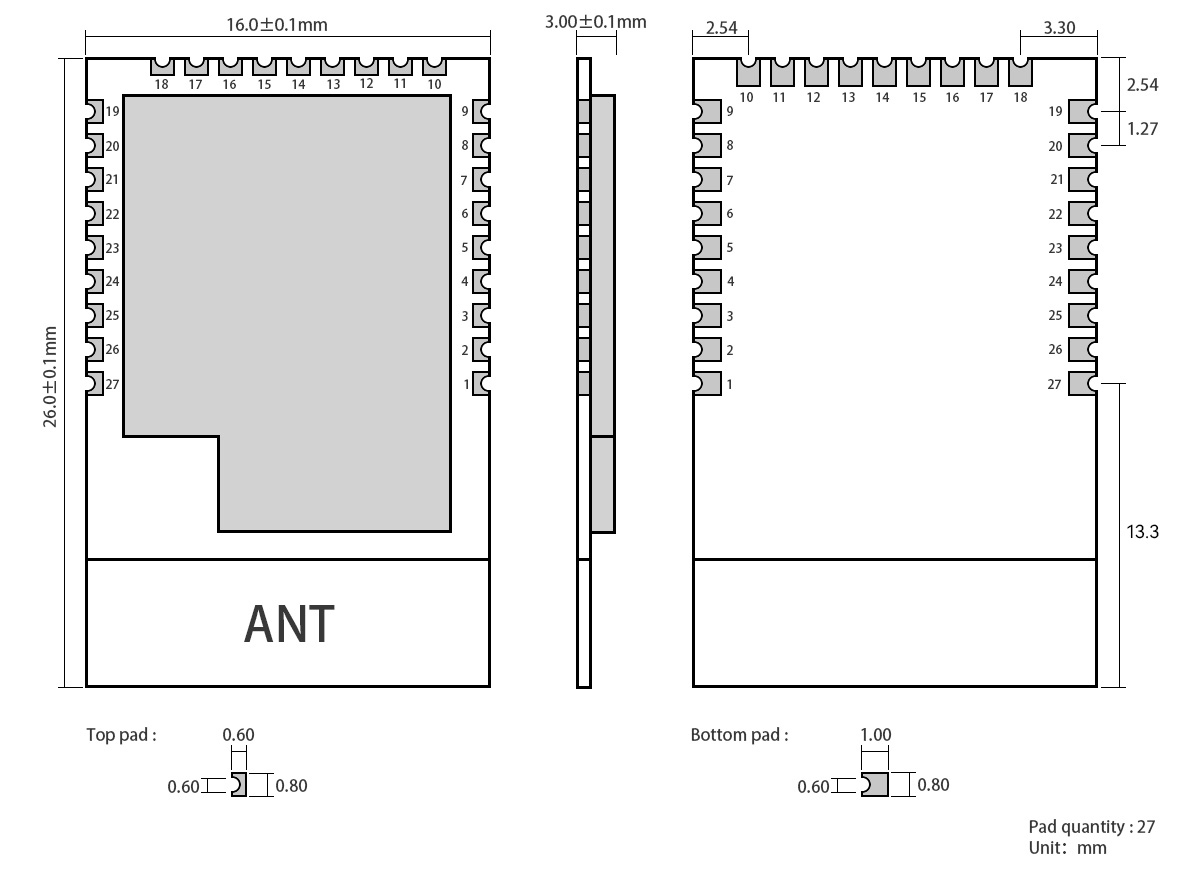

| Size | 16 * 26 mm | - |
| Antenna type | PCB / IPEX | 50Ω Impedance |
| Protocol | Zigbee (Recommended) | ZNET, JenNet-IP, ZigBee-PRO, RF4CE |
| Package | SMD | - |

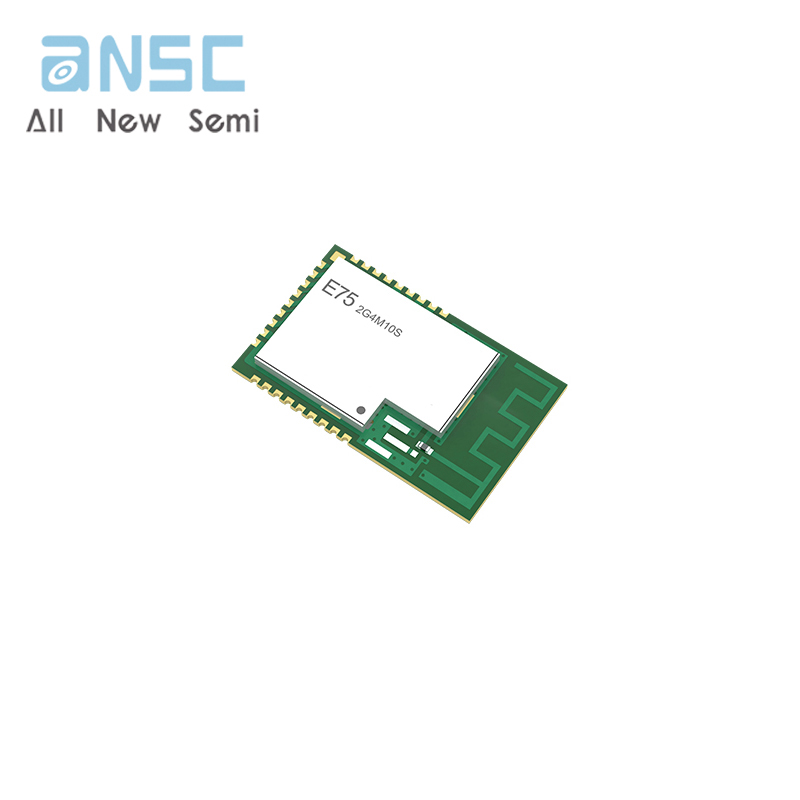

Actual product photos
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
