Hot selling one-stop electronic component E22-230T30D SX1262 lora module

Manufacturer Product Number
E22-230T30D
Description

E22-230T30D is a new generation of LoRa wireless module.

Package Condition
Bulk
Datasheet

Product Descriptions

E22-230T30D is a new generation LoRa wireless module, based on SEMTECH SX1262 RF chip wireless serial module (UART), with a variety of transmission methods, working in the (220.125 ~ 236.125MHz) frequency band (default 230.125MHz), LoRa

spread spectrum technology, TTL level output, compatible with 3.3V and 5V IO port voltage.

​E22-230T30D adopts the new generation LoRa spread spectrum technology, compared with the traditional SX1276 solution, SX1262 solution has longer transmission distance, faster speed, lower power consumption and smaller size; it supports wake-

on-air, wireless configuration, carrier listening, automatic relay, communication key and other functions, supports sub-packet length setting, and can provide custom development services.



Product Applications

• Home security alarms and remote keyless entry;

• Smart home as well as industrial sensors, etc;

• Wireless alarm security systems;

• Building automation solutions;

• Wireless industrial grade remote controls;

• Healthcare products;

• Advanced Meter Reading Architecture (AMI);

• Automotive Industry Applications.

Product Features

• Develops new LoRa spread spectrum modulation technology based on SX1262, which brings longer communication distance and stronger anti-interference capability;

• Supports auto-relay networking, multi-level relay for ultra-long distance communication and multiple networks running simultaneously in the same area;

• Supports user-set communication key, and it cannot be read, which greatly improves the confidentiality of user data;

• Supports LBT function to listen to the channel environment noise before sending, which can greatly improve the communication success rate of the module in harsh environment;

• Supports RSSI signal strength indication function for evaluating signal quality, improving communication network and ranging;

• Supports wireless parameter configuration, sending command packets over the air to remotely configure or read wireless module parameters;

• Supports over-the-air wake-up, i.e., ultra-low power consumption function, for battery-powered application solutions;

• Supports fixed-point transmission, broadcast transmission, and channel monitoring;

• Supports deep hibernation, the power consumption of the whole unit in this mode is about 2uA;

• Supports 230MHz power band, with better penetration and bypass capability than 433MHz;

• Module built-in PA+LNA, communication distance up to 10km under ideal conditions;

• Parameters are saved at power-down, and the module will work according to the set parameters after re-powering;

• Efficient watchdog design, once the abnormality occurs, the module will restart in automatically and can continue to work according to the previous parameter settings;

• Supports data transfer rates from 2.4k to 15.6kbps;

• Supports 3.3 to 5.5V power supply, and any power supply greater than 5V can ensure the best performance;

• Industrial standard design, supporting long time use at -40 to +85℃;

• Dual antenna optional (IPEX/stamp hole), easy for users to secondary development, easy to integrate。

Specifications

Attribute Attribute value Notes
ANSM-Part# ANSM-E22-230T30D
Distance for reference 10kM Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m,air data rate: 2.4kbps
TX length 240 Byte Can be configured via command as 32/64/128/240 bytes per packet to transmit
Buffer 1000 Byte -
Modulation LoRa -
Communication interface UART TTL level
Package DIP -
Size 24*43mm -
Antenna SMA-K 50 ohm impedance
Working frequency band (MHz) 220.125-236.125 Support ISM frequency band
Transmission power (dBm) 30
Working voltage (V) 2.5-5.5 5.0V can guarantee output power
Receiving sensitivity (dBm) -147 Air speed 0.3 kbps

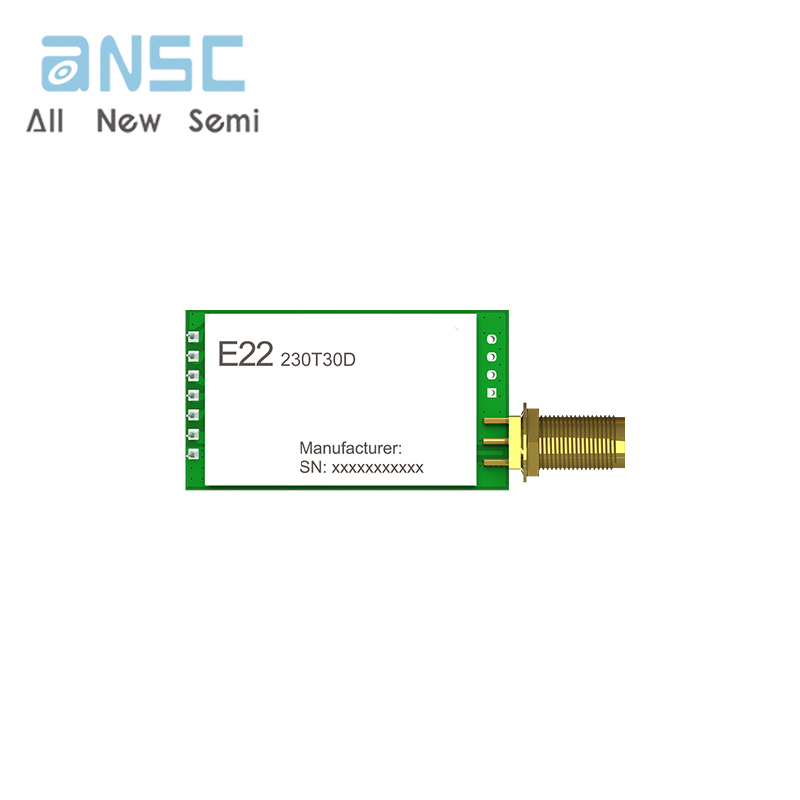

Actual product photos
