Hot-selling and scarce SIT1602AC-13-33S-25.000000 Low Power, Standard Frequency Oscillator QFN spot stock
Manufacturer Product Number
SIT1602AC-13-33S-25.000000
Description
SIT1602AC-13-33S-25.000000 Low Power, Standard Frequency Oscillator QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
51 standard frequencies between 3.75 MHz and 77.76 MHz
100 PERCENT pin-to-pin drop-in replacement to quartz-based XO
Excellent total frequency stability as low as ±20 PPM
Low power consumption of 3.6 mA typical
Standby mode for longer battery life
Fast startup time of 5 ms
LVCMOS/HCMOS compatible output
Industry-standard packages: 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm
Pb-free, RoHS and REACH compliant
Product Applications
Ideal for DSC, DVC, DVR, IP CAM, Tablets, e-Books, SSD,GPON, EPON, etc
Ideal for high-speed serial protocols such as: USB, SATA, SAS, Firewire, 100M / 1G / 10G Ethernet, etc.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SIT1602AC-13-33S-25.000000 |
| Category | Crystals, Oscillators, Resonators |
| Oscillators | |
| Mfr | - |
| Series | SiT1602 |
| Packaging | Strip |
| Part Status | Active |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 25 MHz |
| Function | Standby (Power Down) |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Operating Temperature | -20°C ~ 70°C |
| Current - Supply (Max) | 4.5mA |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-PQFN (2.5x2) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |

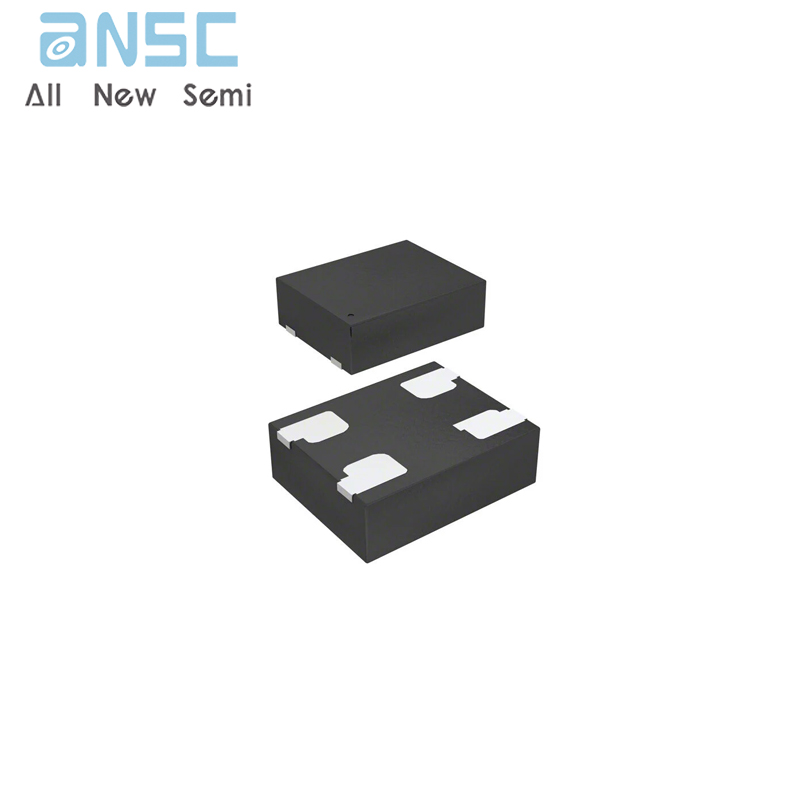

Product Photos
For more product information, please download the PDF
Other Products In The same category:
SIT1602AC-13-33S-25.000000 Low Power, Standard Frequency Oscillator QFN spot stock
141In stock:
Can ship immediately
