Spot sales of CC2590RGVR 2.4-GHz RF Front End, 14-dBm output power QFN

Product Descriptions

CC2590 is a cost-effective and high performance RF Front End for low-power and low-voltage 2.4-GHz wireless applications.

CC2590 is a range extender for all existing and future 2.4-GHz low-power RF transceivers, transmitters and System-on-Chip products from Texas Instruments.

CC2590 increases the link budget by providing a power amplifier for increased output power, and an LNA with low noise figure for improved receiver sensitivity.

CC2590 provides a small size, high output power RF design with its 4x4-mm QFN-16 package.

CC2590 contains PA, LNA, switches, RF-matching,and balun for simple design of high performance wireless applications.

Product Features

• Seamless Interface to 2.4-GHz Low Power RF Devices from Texas Instruments

• Up to +14-dBm (25mW) Output Power

• 6-dB Typical Improved Sensitivity on CC24xx and CC2500, CC2510, and CC2511

• Few External Components

- Integrated Switches

- Integrated Matching Network

- Integrated Balun

- Integrated Inductors

- Integrated PA

- Integrated LNA

• Digital Control of LNA Gain by HGM Pin

• 100-nA in Power Down (EN = PAEN = 0)

• Low Transmit Current Consumption

- 22-mA at 3-V for +12-dBm, PAE = 23%

• Low Receive Current Consumption

- 3.4-mA for High Gain Mode

- 1.8-mA for Low Gain Mode

• 4.6-dB LNA Noise Figure, including T/R Switch and external antenna match

• RoHS Compliant 4×4-mm QFN-16 Package

• 2.0-V to 3.6-V Operation

Product Applications

• All 2.4-GHz ISM Band Systems

• Wireless Sensor Networks

• Wireless Industrial Systems

• IEEE 802.15.4 and ZigBee Systems

• Wireless Consumer Systems

• Wireless Audio Systems

Product Specifications

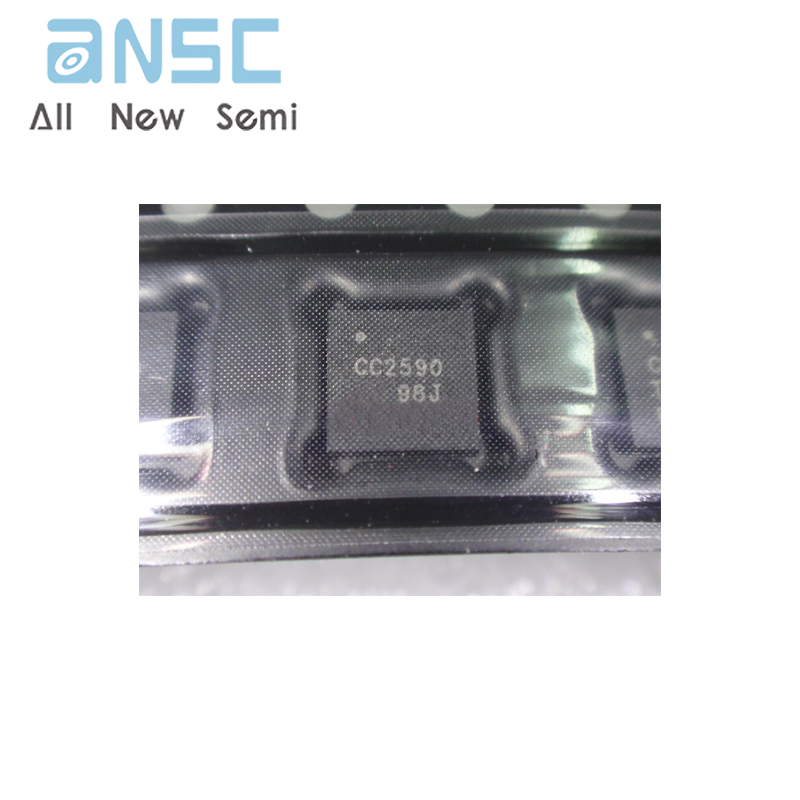

Product photos

​

For more product information, please download the PDF
