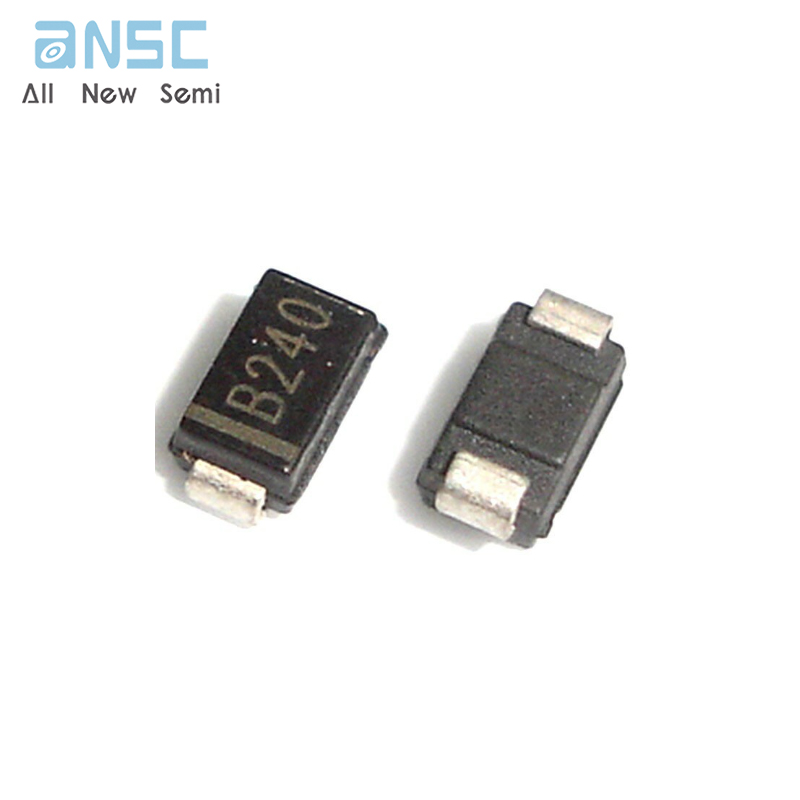

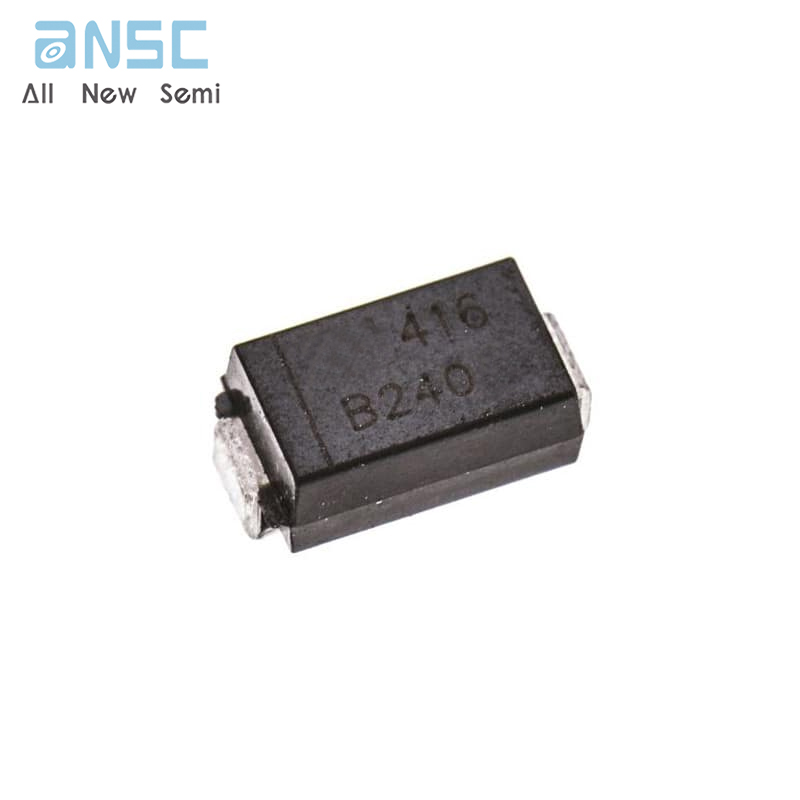

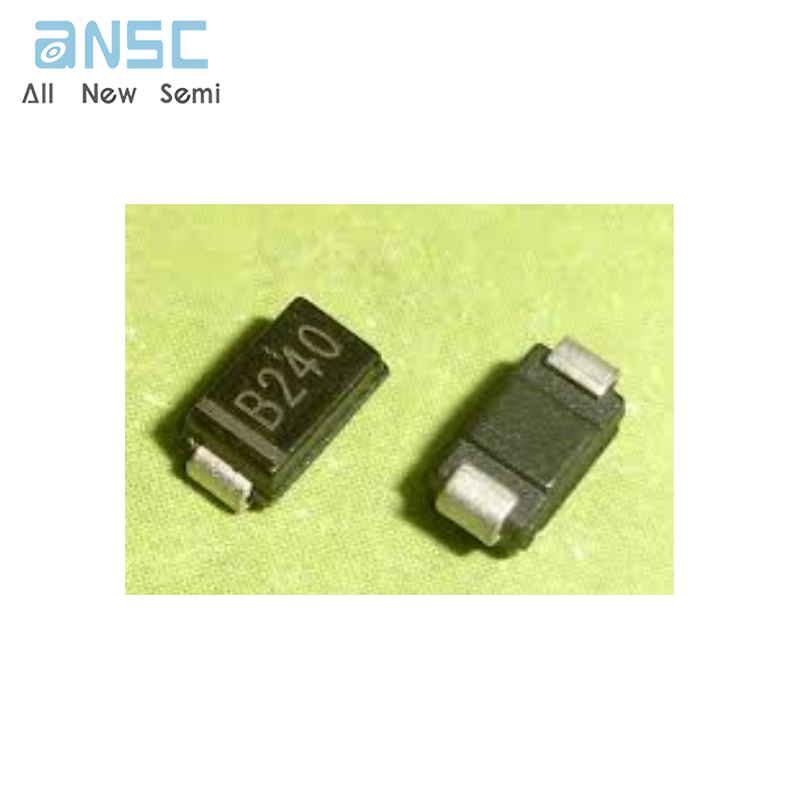

Hot-selling and scarce B240-13-F 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER DO-214A spot stock

Manufacturer Product Number

B240-13-F

Description

B240-13-F 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER DO-214A spot stock

Package Condition

TaPe & Reel

Datasheet

B240-13-F

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product DaTa

 Case: SMA/SMB

 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020

 Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208

 Polarity: Cathode Band or Cathode Notch

 Weight: SMA 0.064 grams (Approximate) SMB 0.093 grams (Approximate)

Product Features

 Guard Ring Die Construction for Transient Protection

 Ideally Suited for Automated Assembly

 Low Power Loss, High Efficiency

 Surge Overload Rating to 50A Peak

 For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application

 High Temperature Soldering: 260°C/10 Second at Terminal

 Lead-Free Finish; RoHS Compliant

 Halogen and Antimony Free. “Green” Device

 Qualified to AEC-Q101 Standards for High Reliability

Product Specification

Attribute	Attribute value
ANSM-Part#	ANSM-B240-13-F
Category	Discrete Semiconductor Products
	Diodes
	Rectifiers
	Single Diodes
Mfr	-
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Part Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	500 mV @ 2 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 µA @ 40 V
Capacitance @ Vr, F	200pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 150°C
Base Product Number	B240
