Hot-selling and scarce NC7SZ00M5 TinyLogic UHS 2-Input NAND Gate SOT-153 spot stock
Manufacturer Product Number
NC7SZ00M5
Description
NC7SZ00M5 TinyLogic UHS 2-Input NAND Gate SOT-153 spot stock
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The NC7SZ00 is a single 2-Input NAND Gate from Fairchild’s Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.8V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
Product Features
■ Space saving SOT23 or SC70 5-lead package
■ Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC
■ High Output Drive; ±24 mA at 3V VCC
■ Broad VCC Operating Range; 1.8V–5.5V
■ Matches the performance of LCX when operated at 3.3V VCC
■ Power down high impedance inputs/output
■ Overvoltage tolerant inputs facilitate 5V to 3V translation
■ Patented noise/EMI reduction circuitry implemented
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-NC7SZ00M5 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 7SZ |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 32mA, 32mA |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 7SZ00 |

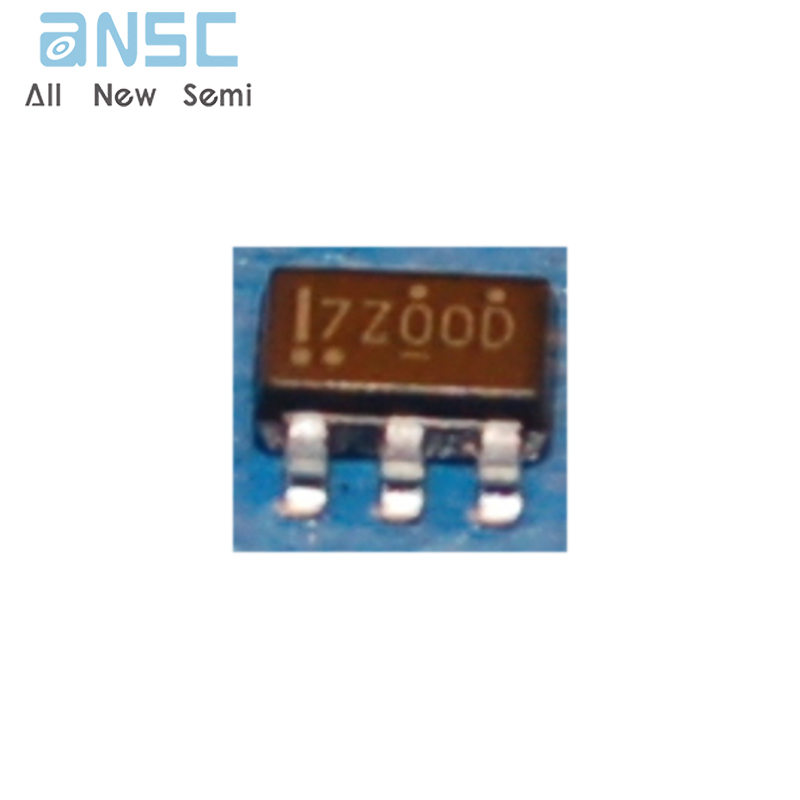

Product Photos
