Spot sales of TVP5147M1IPFPR 11-Bit Digital Video Decoder With Macrovision YPbPr Inputs, and 5-Line Comb Filter 80-HTQFP

Product Descriptions

The TVP5147M1 device is a high-quality, single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147M1 decoder supports the analog-to-digital (A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-video into component YCbCr. This decoder includes two 11-bit 30-MSPS A/D converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of ten video input terminals can be configured to a combination of YPbPr, CVBS, or S-video video inputs.

Composite or S-video signals are sampled at 2× the ITU-R BT.601 clock frequency, line-locked alignment, and are then decimated to the 1× pixel rate. CVBS decoding uses five-line adaptive comb filtering for both the luma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. A chroma trap filter is also available. On CVBS and S-video inputs, the user can control video characteristics such as contrast, brightness, saturation, and hue via an I 2C host port interface. Furthermore, luma peaking (sharpness) with programmable gain is included, as well as a patented chroma transient improvement (CTI) circuit.

The following output formats can be selected: 20-bit 4:2:2 YCbCr or 10-bit 4:2:2 YCbCr.

The TVP5147M1 decoder generates synchronization, blanking, field, active video window, horizontal and vertical syncs, clock, genlock (for downstream video encoder synchronization), host CPU interrupt and programmable logic I/O signals, in addition to digital video outputs.

Product Features

• Two 30-MSPS 11-bit A/D channels with programmable gain control

• Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) CVBS, and S-video

• Supports analog component YPbPr video format with embedded sync

• Ten analog video input terminals for multisource connection

• Supports analog video output

• User-programmable video output formats

– 10-bit ITU-R BT.656 4:2:2 YCbCr with embedded syncs

– 10-bit 4:2:2 YCbCr with separate syncs

– 20-bit 4:2:2 YCbCr with separate syncs

– 2x sampled raw VBI data in active video during a vertical blanking period

– Sliced VBI data during a vertical blanking period or active video period (full field mode)

• HSYNC/VSYNC outputs with programmable position, polarity, width, and field ID (FID) output

• Composite and S-video processing

– Adaptive 2-D 5-line adaptive comb filter for composite video inputs; chroma-trap available

– Automatic video standard detection (NTSC/PAL/SECAM) and switching

– Luma-peaking with programmable gain

– Patented chroma transient improvement (CTI)

– Patented architecture for locking to weak,noisy, or unstable signals

– Single 14.31818-MHz reference crystal for all standards

Product Applications

• DLP™ projectors

• Digital TV

• LCD TV/monitors

• DVD recorders

• PVR

• PC video cards

• Video capture/video editing

• Video conferencing

• Automotive

• Industrial

Product Specification

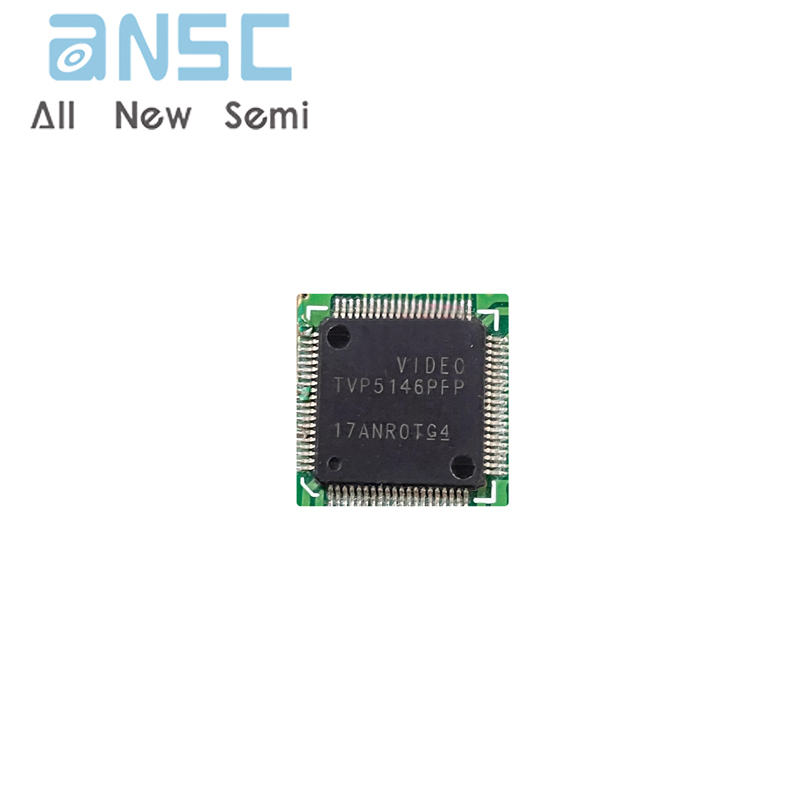

Product Photos

For more product information, please download the PDF
