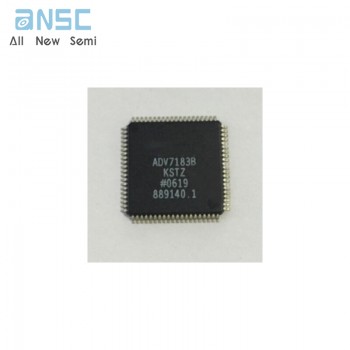

Hot-selling and scarce ADV7183BKSTZ Multiformat SDTV Video Decoder LQFP80 spot stock
Manufacturer Product Number
ADV7183BKSTZ
Description
ADV7183BKSTZ Multiformat SDTV Video Decoder LQFP80 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADV7183B integrated video decoder automatically detectsand converts a standard analog baseband television signalcompatible with worldwide standards NTSC, PAL, and SECAMinto 4:2:2 component video data-compatible with 16-/8-bitCCIR601/CCIR656
The advanced and highly flexible digital output interfaceenables performance video decoding and conversion in linelocked clock-based systems. This makes the device ideallysuited for a broad range of applications with diverse analogvideo characteristics, including tape-based sources, broadcastsources, security/surveillance cameras, and professionalsystems .
The 10-bit accurate A/D conversion provides professionalquality video performance and is unmatched . This allows true8-bit resolution in the 8-bit output mode.
Product Features
Multiformat video decoder supports NTSC-(J, M, 4.43),
PAL-(B/D/G/H/I/M/N), SECAM
Integrates three 54 MHz, 10-bit ADCs
Clocked from a single 27 MHz crystal
Line-locked clock-compatible (LLC)
Adaptive Digital Line Length Tracking (ADLLT™), signal
processing, and enhanced FIFO management give mini
TBC functionality
5-line adaptive comb filters
Proprietary architecture for locking to weak, noisy, and
unstable video sources such as VCRs and tuners
Subcarrier frequency lock and status information output
Integrated AGC with adaptive peak white mode
Macrovision® copy protection detection
Chroma transient improvement (CTI)
Digital noise reduction (DNR)
Multiple programmable analog input formats
Composite video (CVBS)
S-Video (Y/C)
YPrPb component (VESA, MII, SMPTE, and BetaCam)
12 analog video input channels
Automatic NTSC/PAL/SECAM identification
Digital output formats (8-bit or 16-bit)
ITU-R BT.656 YCrCb 4:2:2 output + HS,VS, and FIELD
Product Applications
DVD recorders
Video projectors
HDD-based PVRs/DVDRs
LCD TVs
Set-top boxes
Security systems
Digital televisions
AVR receivers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADV7183BKSTZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Encoders, Decoders, Converters | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Obsolete |
| Type | Video Decoder |
| Applications | Projectors, Recorders, Security |
| Voltage - Supply, Analog | 3.15V ~ 3.45V |
| Voltage - Supply, Digital | 1.65V ~ 2V |
| Mounting Type | Surface Mount |
| Package / Case | 80-LQFP |
| Supplier Device Package | 80-LQFP (14x14) |
| Base Product Number | ADV7183 |

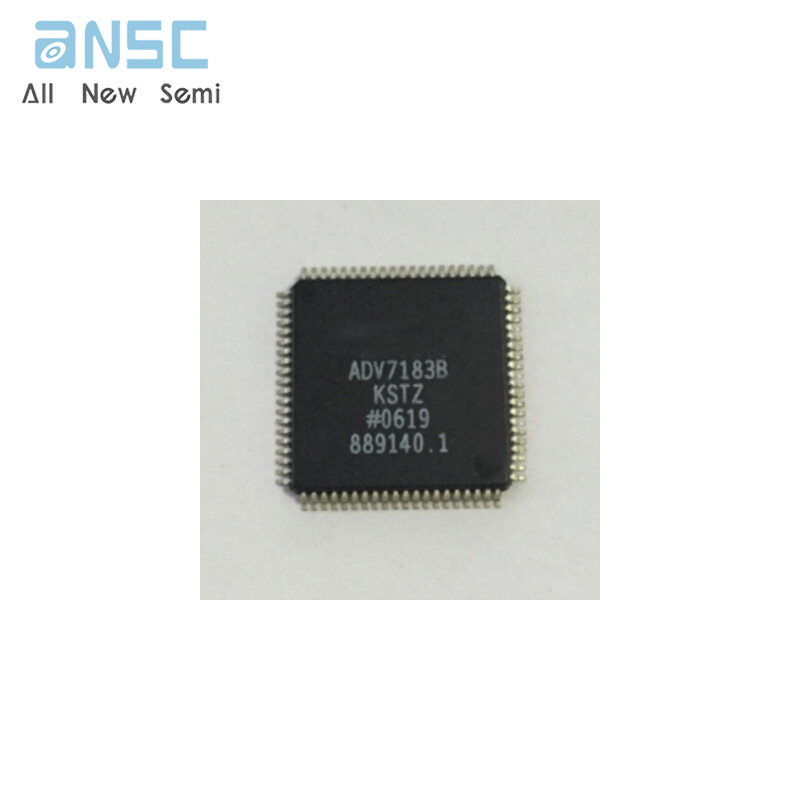

Product Photos
For more product information, please download the PDF
