Hot-selling and scarce DS9637ACN Dual Differential Line Receiver DIP8 spot stock
Manufacturer Product Number
DS9637ACN
Description
DS9637ACN Dual Differential Line Receiver DIP8 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The DS9637A is a Schottky dual differential line receiver which has been specifically designed to satisfy the requirements of EIA Standards RS-422 and RS-423. In addition, the DS9637A satisfies the requirements of MIL-STD 188-114 and is compatible with the International Standard CCITT recommendations. The DS9637A is suitable for use as a line receiver in digital data systems, using either single ended or differential, unipolar or bipolar transmission. It requires a single 5V power supply and has Schottky TTL compatible outputs. The DS9637A has an operational input common mode range of ±7V either differentially or to ground.
Product Features
• Dual Channel
• Single 5V Supply
• Satisfies EIA Standards RS-422 and RS423
• Built-in ±35 mV Hysteresis
• High Input Common Mode Voltage Range
• High Input impedance
• TTL Compatible Outputs
• Schottky Technology
• Extended Temperature Range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS9637ACN |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Receiver |
| Protocol | RS232, RS423 |
| Number of Drivers/Receivers | 0/2 |
| Receiver Hysteresis | 70 mV |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-MDIP |
| Base Product Number | DS9637 |

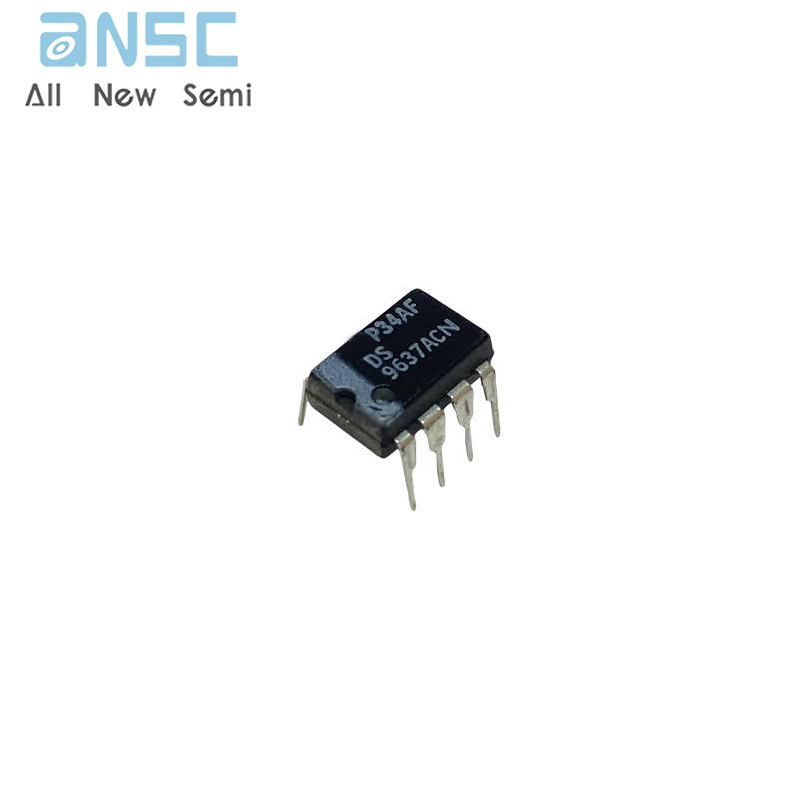

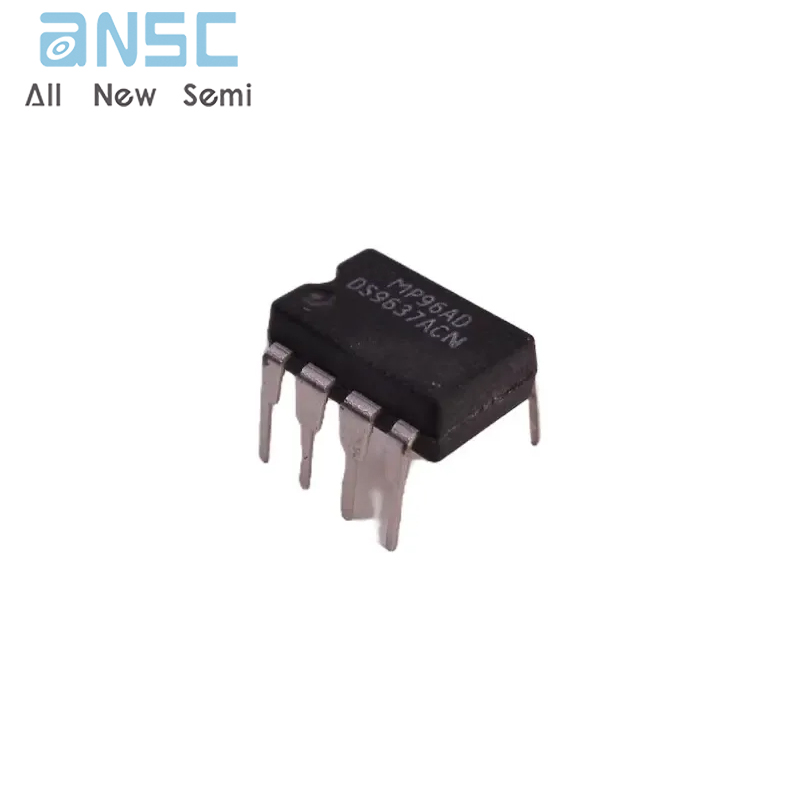

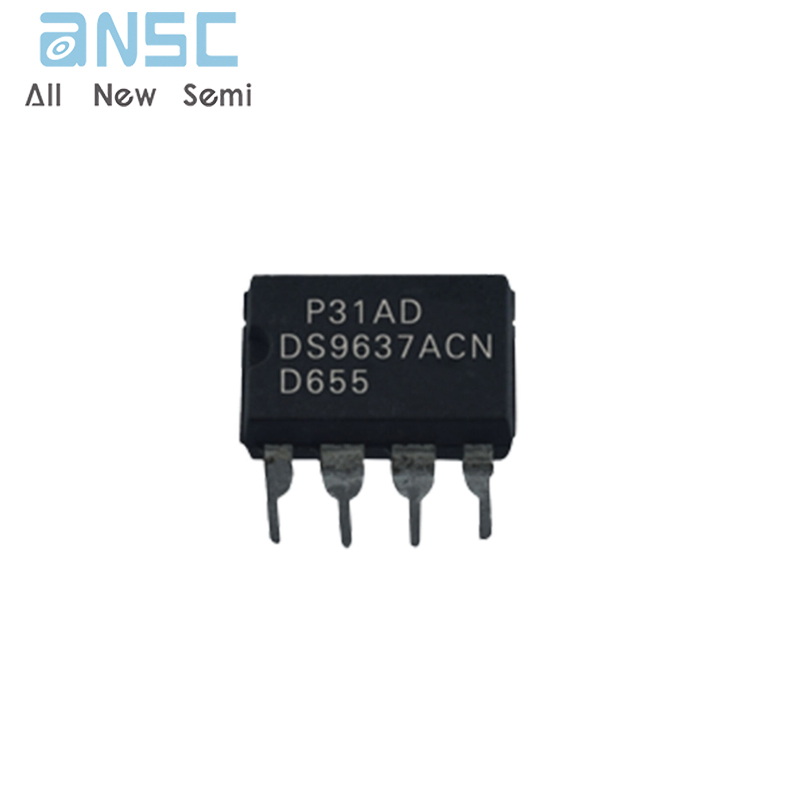

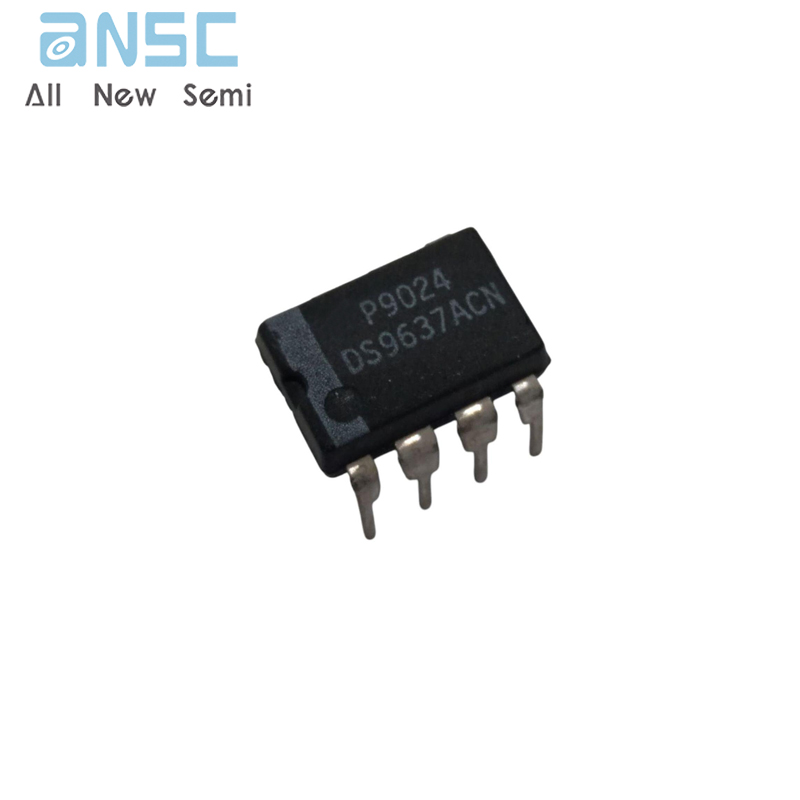

Product Photos
