Hot-selling and scarce MAX4951CTP+ SATA I/SATA II Bidirectional Re-Driver QFN spot stock

Product Descriptions

The MAX4951 dual-channel buffer is designed to re-drive serial-ATA (SATA) I and SATA II signals and is functional up to 6.0Gbps for next-generation data rates. The MAX4951 can be placed near an eSATA connector to overcome board losses and produce an eSATA-compatible signal level.

The MAX4951 preserves signal integrity at the receiver by reestablishing full output le​vels, and can reduce the total system jitter (TJ) by squaring up the signal. This device features channel-independent digital boost controls to drive SATA outputs over longer trace lengths, or to meet eSATA specifications. SATA Out-Of-Band (OOB) signaling is supported using high-speed amplitude detection on the inputs, and squelch on the corresponding outputs. Inputs and outputs are all internally 50Ω terminated and must be AC-coupled to the SATA controller IC and SATA device.

The MAX4951 operates from a single +3.3V (typ) supply and is available in a small, 4mm x 4mm, TQFN package with flow-through traces for ease of layout. This device is specified over the 0°C to +70°C operating temperature range.

Product Features

♦ Single +3.3V (typ) Supply Operation

♦ Supports SATA I (1.5Gbps) and SATA II (3.0Gbps)

♦ Supports up to 6.0Gbps for Next-Generation Applications

♦ Meets SATA I, SATA II Input-/Output-Return Loss Mask

♦ Supports eSATA Levels

♦ Supports SATA Out-of-Band (OOB) Signaling

♦ Internal Input/Output 50Ω Termination Resistors

♦ In-Line Signal Traces for Flow-Through Layout

♦ Space-Saving, 4mm x 4mm, TQFN Package

Product Applications

Servers

Desktop Computers

Notebook Computers

Docking Stations

Data Storage/Workstations

Product Specification

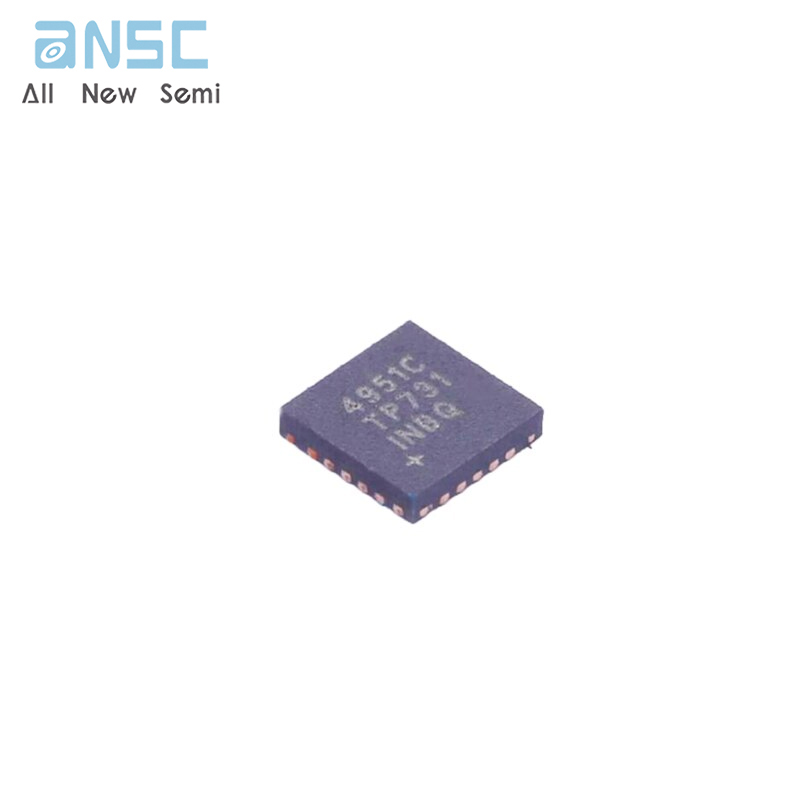

Product Photos

For more product information, please download the PDF
