Hot-selling and scarce PC410L High Speed 10Mb/s, High CMR Mini-flat Package ∗OPIC Photocoupler SOP5 spot stock

Product Descriptions

PC410L0NIP0F Series contains a LED optically cou-pled to an OPIC chip.

It is packaged in a 5 pin mini-flat.

Input-output isolation voltage(rms) is 3.75 kV.

High speed response(TYP. 10 Mb/s) and CMR is  MIN. 10 kV/µs.

Product Features

1. 5 pin Mini-flat package

2. Double transfer mold package

(Ideal for Flow Soldering)

3. High noise immunity due to high instantaneous com mon mode rejection voltage (CMH : MIN.10 kV/µs, CML : MIN. −10 kV/µs)

4. High speed response

(tPHL : TYP. 48 ns, tPLH : TYP. 50 ns)

5. High isolation voltage between input and output

(Viso(rms) : 3.75 kV)

6. RoHS directive compliant

Product Applications

1. Programmable controllers

2. Inverter

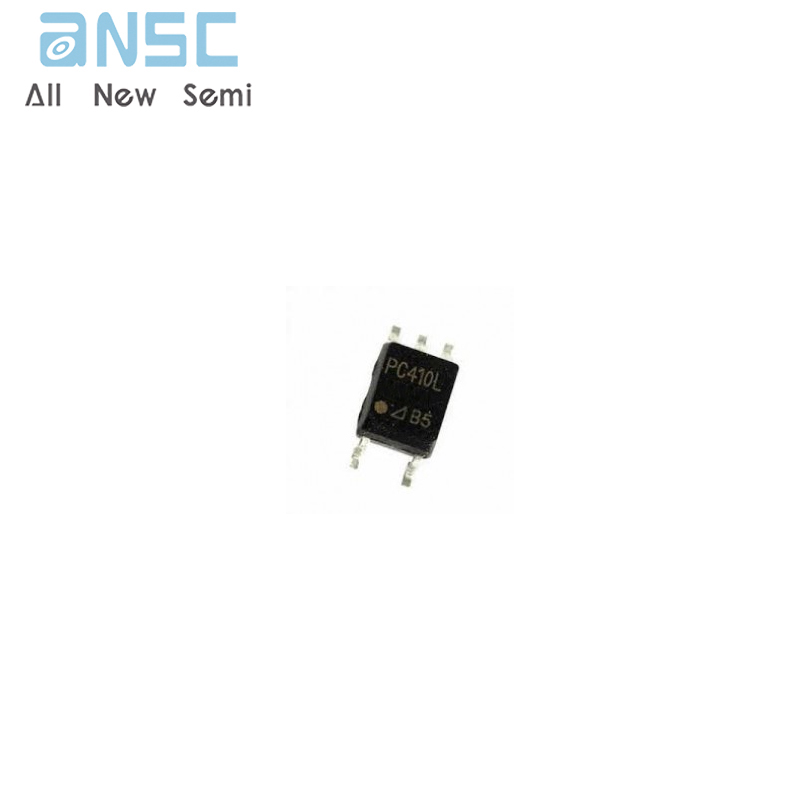

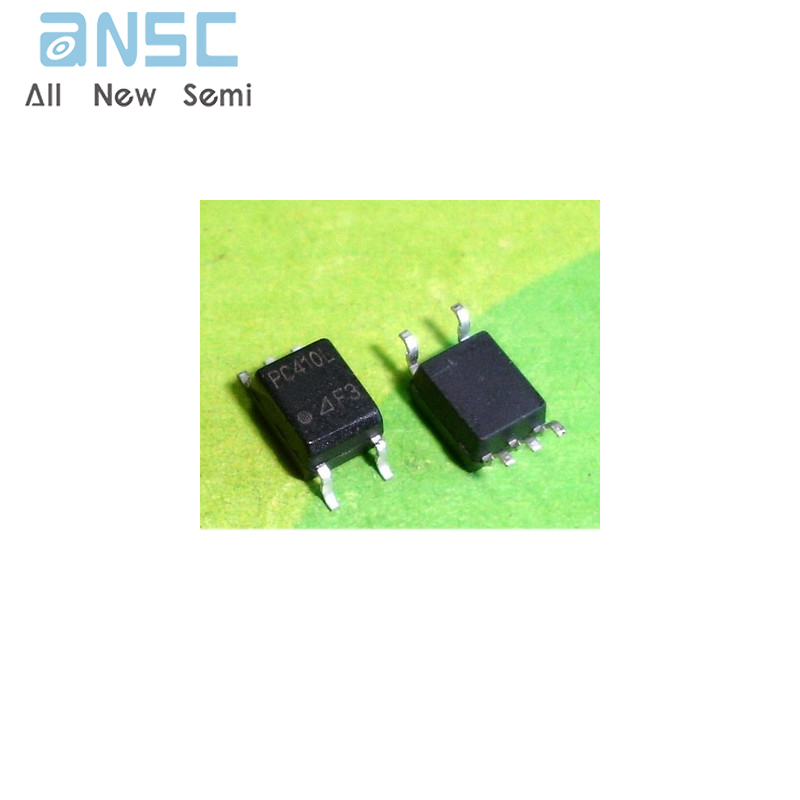

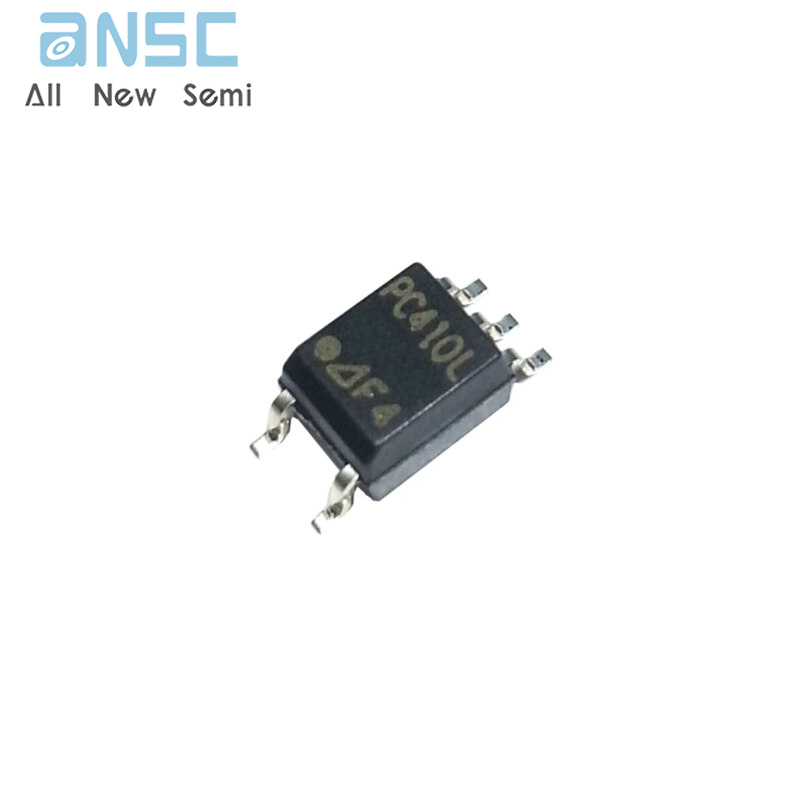

Product Photos

For more product information, please download the PDF
