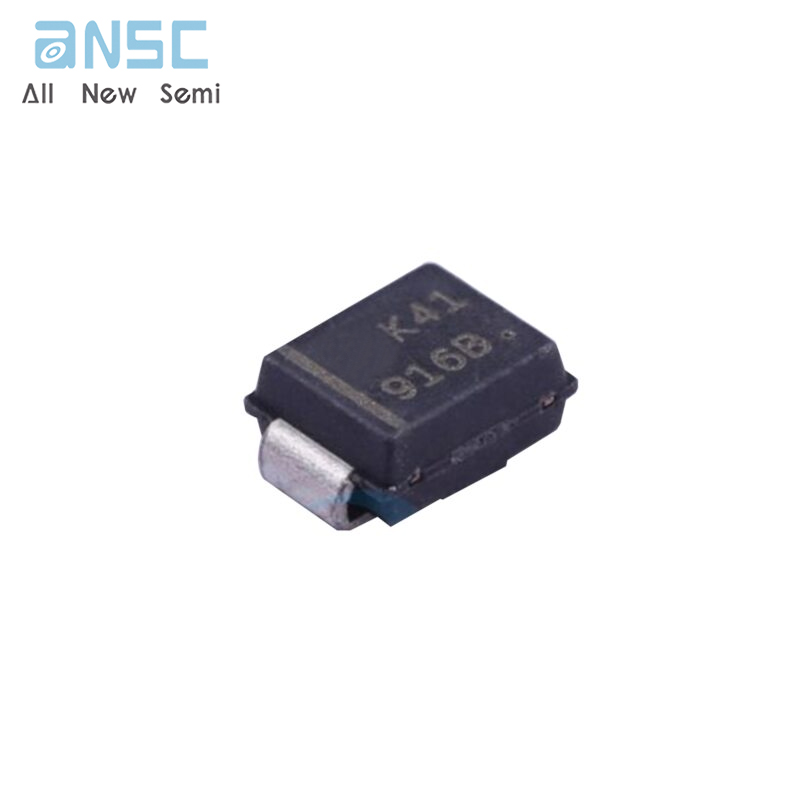

Hot-selling and scarce 1SMB5916BT3G 3 Watt Plastic Surface Mount Zener Voltage Regulators DO-214A spot stock
Manufacturer Product Number
1SMB5916BT3G
Description
1SMB5916BT3G 3 Watt Plastic Surface Mount Zener Voltage Regulators DO-214A spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This complete new line of 3 Watt Zener diodes offers the following advantages.
Product Features
• Zener Voltage Range − 3.3 V to 200 V
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Flat Handling Surface for Accurate Placement
• Package Design for Top Side or Bottom Circuit Board Mounting
• Pb−Free Packages are Available
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-1SMB5916BT3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 4.3 V |
| Tolerance | ±5% |
| Power - Max | 3 W |
| Impedance (Max) (Zzt) | 6 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | 1SMB5916 |
Product Photos
For more product information, please download the PDF
