Hot-selling and scarce 74HC4066D Quad single-pole single-throw analog switch SOP14 spot stock
Manufacturer Product Number
74HC4066D
Description

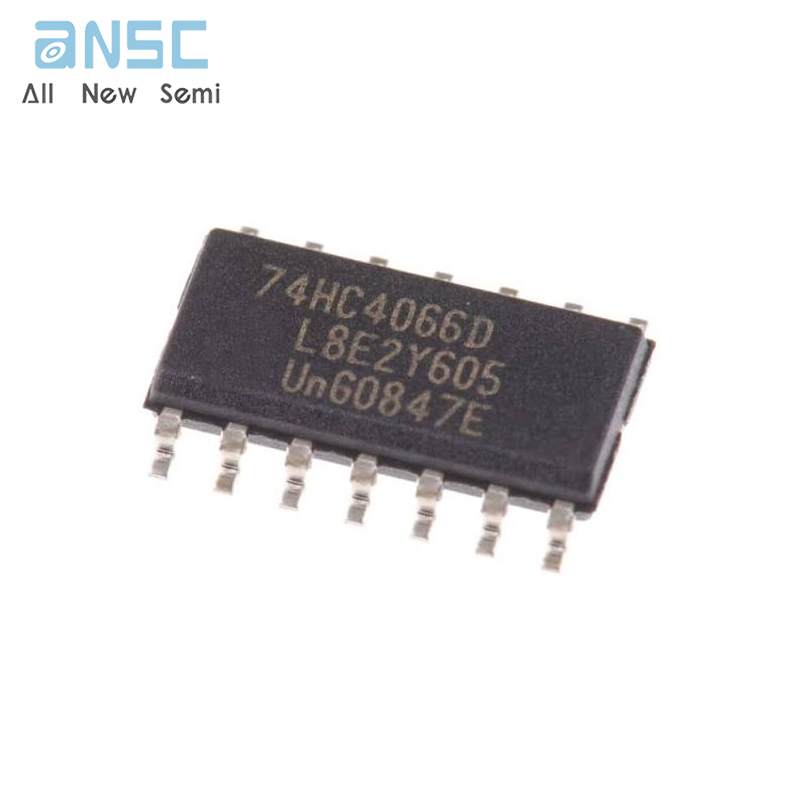

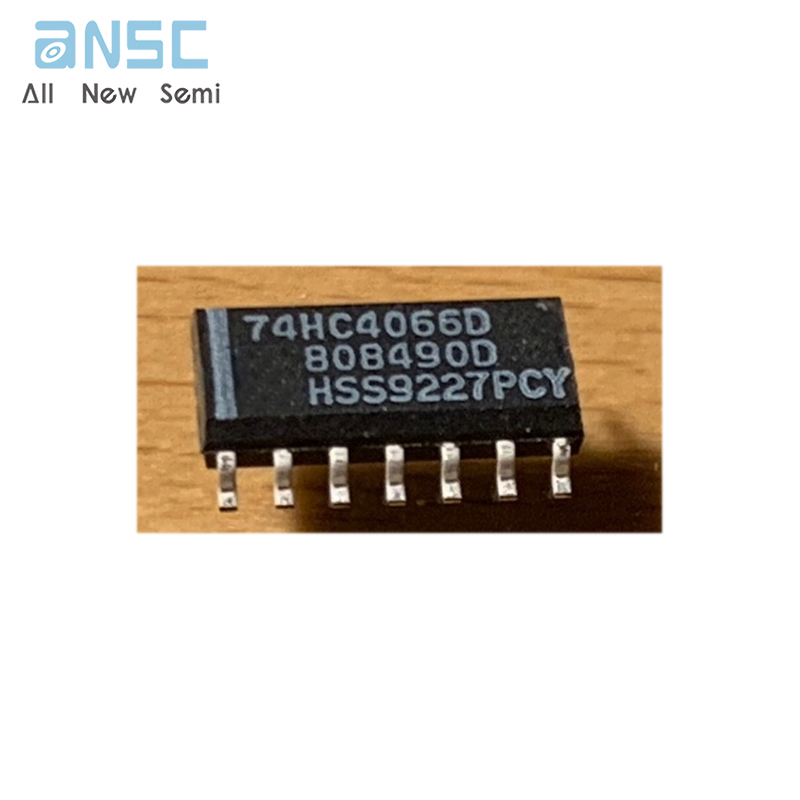

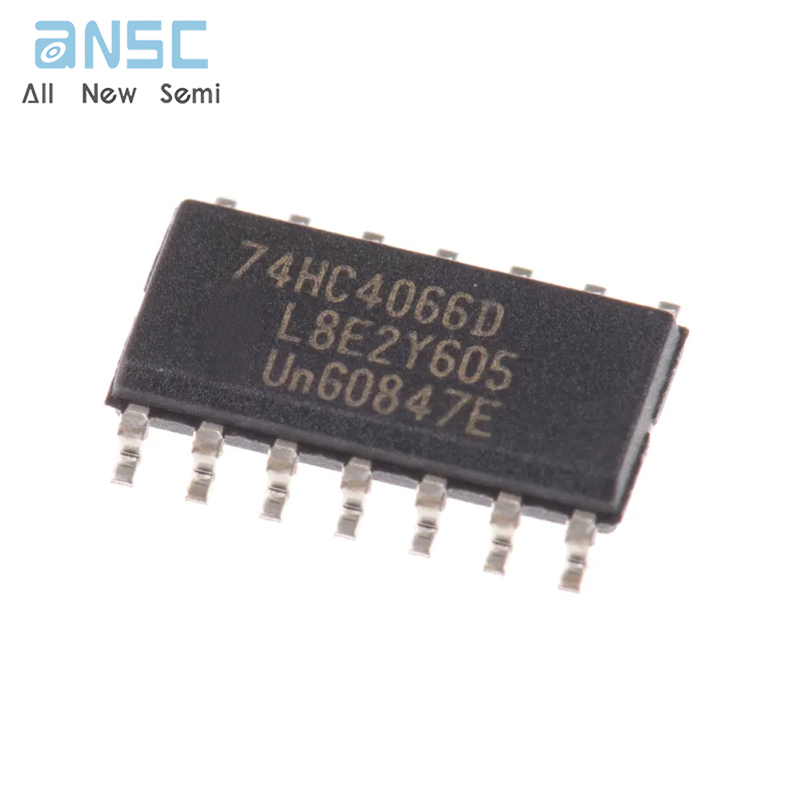

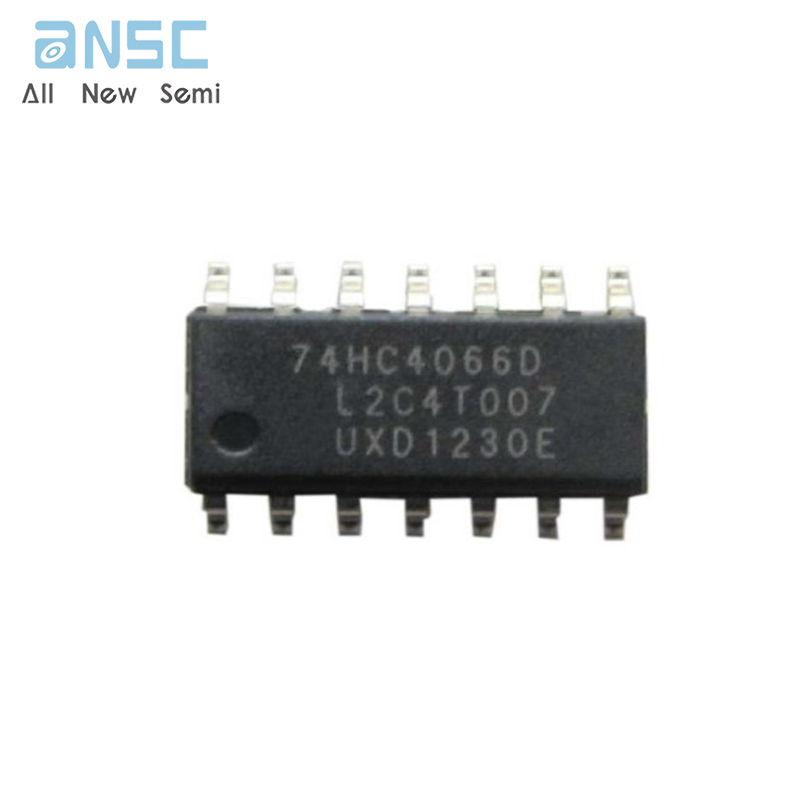

74HC4066D Quad single-pole single-throw analog switch SOP14 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
.
The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Product Features
• Input levels nE inputs:
• For 74HC4066: CMOS level
• For 74HCT4066: TTL level
• Low ON resistance:
• 50 Ω (typical) at VCC = 4.5 V
• 45 Ω (typical) at VCC = 6.0 V
• 35 Ω (typical) at VCC = 9.0 V
• Specified in compliance with JEDEC standard no. 7A
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V
• Multiple package options
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74HC4066D |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 80Ohm |
| Channel-to-Channel Matching(ΔRon) | 5Ohm (Typ) |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Switch Time (Ton, Toff) (Max) | 12ns, 12ns |
| -3db Bandwidth | 200MHz |
| Channel Capacitance (CS(off), CD(off)) | 3pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | 74HC4066 |
