Hot-selling and scarce ADG1408YRUZ 4 Ω RON 4-/8-Channel ±15 V/+12 V/±5 V iCMOS Multiplexers TSSOP16 spot stock
Manufacturer Product Number
ADG1408YRUZ
Description
ADG1408YRUZ 4 Ω RON 4-/8-Channel ±15 V/+12 V/±5 V iCMOS Multiplexers TSSOP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADG1408/ADG1409 are monolithic iCMOS®analog multiplexers comprising eight single channels and four differential channels, respectively. The ADG1408 switches one of eight inputs to a common output, as determined by the 3-bit binary address lines, A0, A1, and A2 . The ADG1409 switches one of four differential inputs to a common differential output, as determined by the 2-bit binary address lines, A0 and A1 . An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off.
The industrial CMOS (iCMOS)modular manufacturing process combines high voltage complementary metal-oxide semiconductor(CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption,and reduced package size.
The ultralow on resistance and on resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications where low distortion is critical. iCMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and batterypowered instruments.
Product Features
4.7 Ω maximum on resistance at 25°C
0.5 Ω on-resistance flatness
Up to 190 mA continuous current
Fully specified at ±15 V/+12 V/±5 V
3 V logic-compatible inputs
Rail-to-rail operation
Break-before-make switching action
16-lead TSSOP and 4 mm × 4 mm LFCSP
Product Applications
Relay replacement
Audio and video routing
Automatic test equipment
Data acquisition systems
Temperature measurement systems
Avionics
Battery-powered systems
Communication systems
Medical equipment
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADG1408YRUZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 120ns, 120ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | -50pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 80pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG1408 |

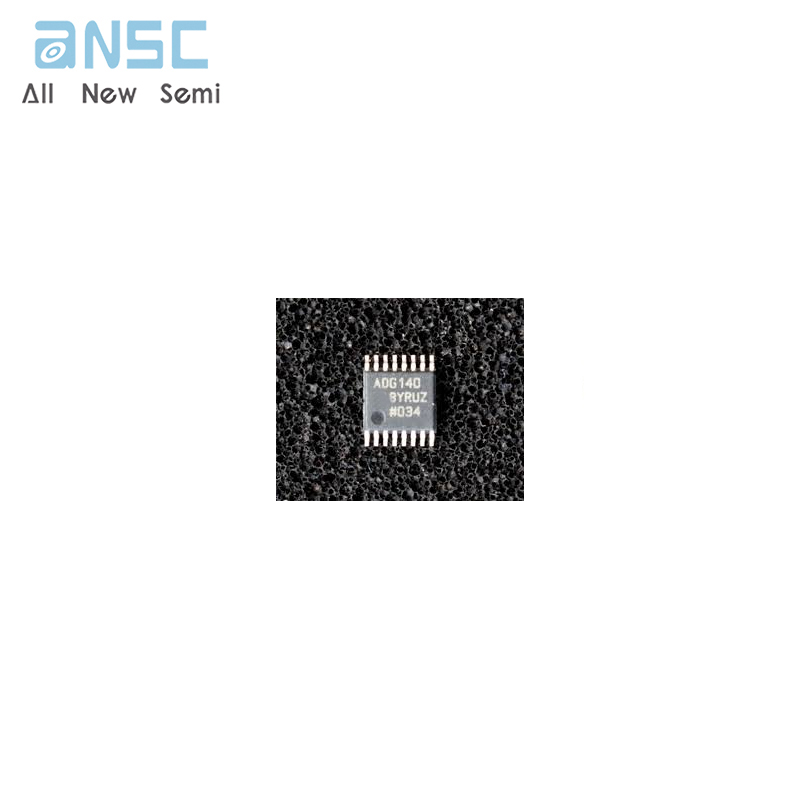

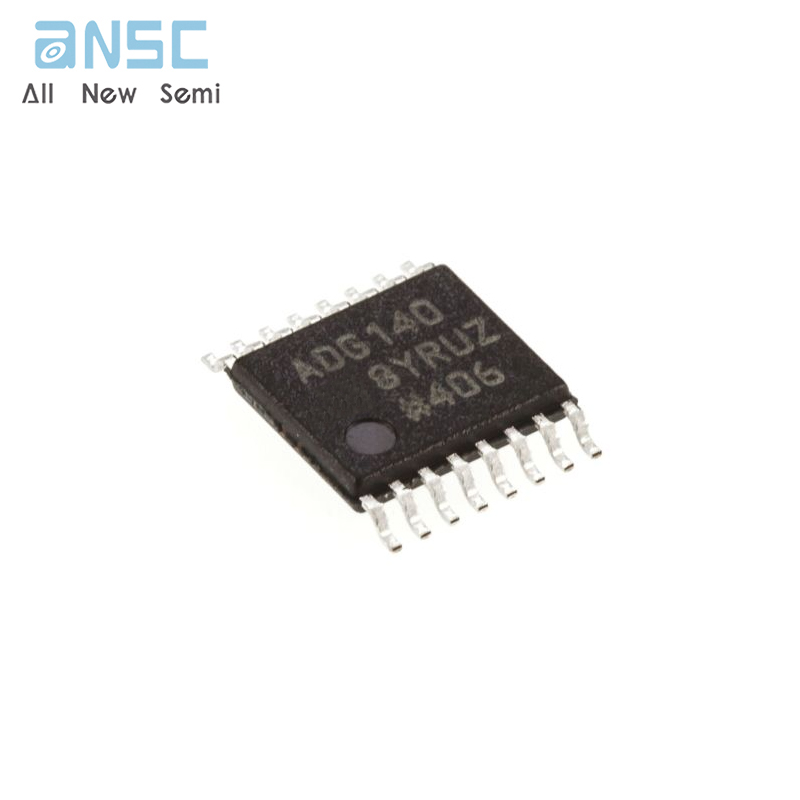

Product Photos
