STM32F071CBU6 32-bit MCU, up to 128 KB Flash, 12 timers, ADC, DAC & communication interfaces, 2.0 - 3.6 V QFN48

Product Features

• Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

• Memories

– 64 to 128 Kbytes of Flash memory

– 16 Kbytes of SRAM with HW parity

• CRC calculation unit

• Reset and power management

– Digital and I/O supply: VDD = 2.0 V to 3.6 V

– Analog supply: VDDA = VDD to 3.6 V

– Selected I/Os: VDDIO2 = 1.65 V to 3.6 V

– Power-on/Power down reset (POR/PDR)

– Programmable voltage detector (PVD)

– Low power modes: Sleep, Stop, Standby

– VBAT supply for RTC and backup registers

• Clock management

– 4 to 32 MHz crystal oscillator

– 32 kHz oscillator for RTC with calibration

– Internal 8 MHz RC with x6 PLL option

– Internal 40 kHz RC oscillator

– Internal 48 MHz oscillator with automatic trimming based on ext. synchronization

• Up to 87 fast I/Os

– All mappable on external interrupt vectors

– Up to 68 I/Os with 5V tolerant capability and 19 with independent supply VDDIO2

• Seven-channel DMA controller

• One 12-bit, 1.0 µs ADC (up to 16 channels)

– Conversion range: 0 to 3.6 V

– Separate analog supply: 2.4 V to 3.6 V

• One 12-bit D/A converter (with 2 channels)

• Two fast low-power analog comparators with programmable input and output

• Up to 24 capacitive sensing channels for touchkey, linear and rotary touch sensors

• Calendar RTC with alarm and periodic wakeup from Stop/Standby

• 12 timers

– One 16-bit advanced-control timer for six-channel PWM output

– One 32-bit and seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding or DAC control

– Independent and system watchdog timers

– SysTick timer

• Communication interfaces

– Two I2C interfaces supporting Fast Mode Plus (1 Mbit/s) with 20 mA current sink; one supporting SMBus/PMBus and wakeup

– Four USARTs supporting master synchronous SPI and modem control; two with ISO7816 interface, LIN, IrDA, auto baud rate detection and wakeup feature

– Two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames, and with I2S interface multiplexed

• HDMI CEC, wakeup on header reception

• Serial wire debug (SWD)

• 96-bit unique ID

• All packages ECOPACK®2

Product Specification

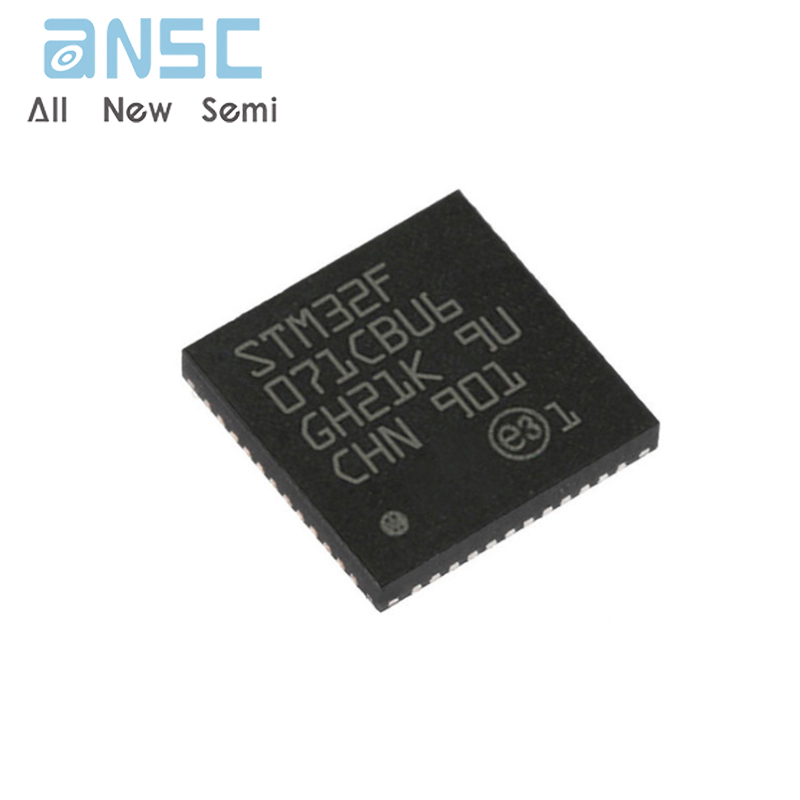

Product Photos

、
