MAX6120EUR Low-Cost, Micropower, Precision, 3-Terminal, 1.2V Voltage Reference SOT23 spot stock

Product Descriptions

The MAX6120 is the lowest-power 1.2V, precision, three-terminal voltage reference offered in a SOT23 package. Ideal for 3V battery-powered equipment where power conservation is critical, the MAX6120 is a low-power alternative to existing two-terminal shunt references. Unlike two-terminal references that throw away battery current and require an external series resistor, the MAX6120 has a 70µA maximum supply current (typically only 50µA) that is independent of the input voltage. This feature translates to maximum efficiency at all battery voltages.

The MAX6120 operates from a supply voltage as low as 2.4V, and initial accuracy is ±1% for the SOT23 package. Output voltage temperature coefficient is typically only 30ppm/°C, and is guaranteed to be less than 100ppm/°C in the SOT23 package. For a guaranteed output voltage temperature coefficient of less than 50ppm/°C, see the MAX6520 data sheet.

Product Features

♦ 3-Pin SOT23 Package

♦ Supply Current Independent of Input Voltage Over Temperature

♦ 50µA Supply Current

♦ 2.4V to 11V Input Voltage Range

♦ 30ppm/°C Typical Tempco (SOT23)

♦ ±1% Initial Accuracy (SOT23)

Product Applications

Battery-Powered Systems

Portable and Hand-Held Equipment

Data-Acquisition Systems

Instrumentation and Process Control

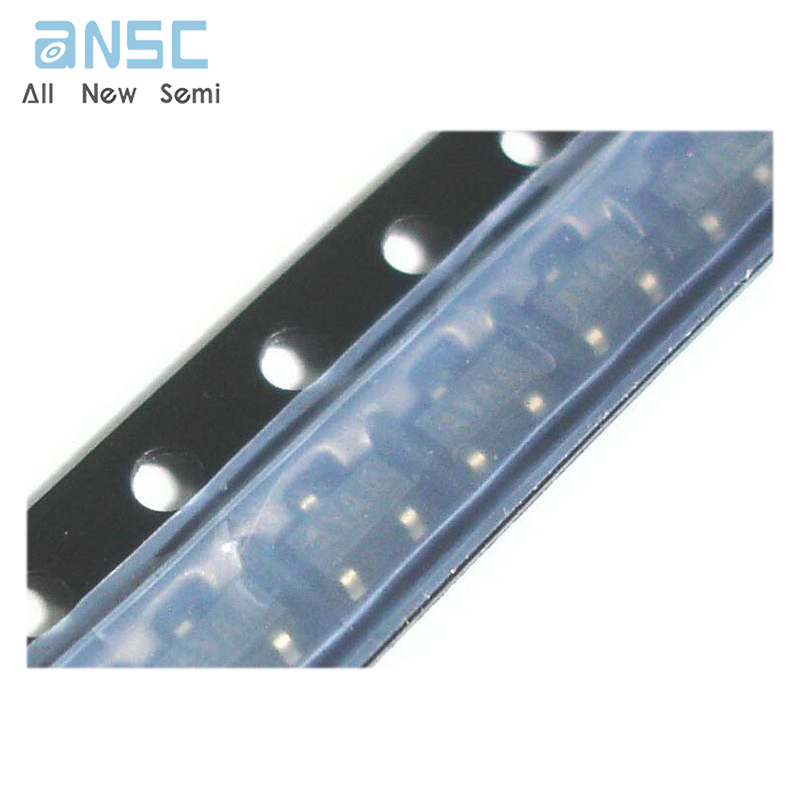

Product Photos

For more product information, please download the PDF
