Hot-selling and scarce LMZ13608TZE 8A SIMPLE SWITCHER® Power Module PFM11 spot stock

Product Descriptions

■  40W maximum total output power

■  Up to 8A output current

■  Input voltage range 6V to 36V

■  Output voltage range 0.8V to 6V

■  Efficiency up to 92%

Product Features

■  Integrated shielded inductor

■  Simple PCB layout

■  Fixed switching frequency (350 kHz)

■  Flexible startup sequencing using external soft-start, tracking and precision enable

■  Protection against inrush currents and faults such as input UVLO and output short circuit

■  – 40°C to 125°C junction temperature range

■  Single exposed pad and standard pinout for easy mounting and manufacturing

■  Fully enabled for Webench® Power Designer

■  Pin compatible with LMZ22010/08, LMZ12010/08, LMZ23610/08/06H, and LMZ13610/06H

Product Applications

■  Point of load conversions from 12V and 24V input rail

■  Time critical projects

■  Space constrained /high thermal requirement applications

■  Negative output voltage applications (See AN-2027)

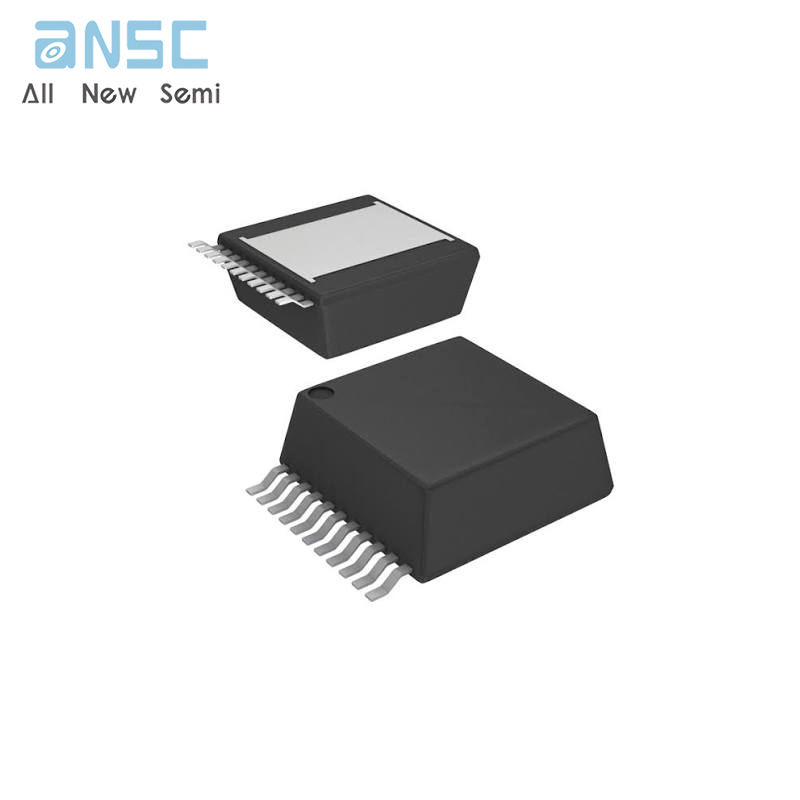

Product Photos

For more product information, please download the PDF
