Hot-selling and scarce MP2355DN-LF-Z 3A, 23V, 380KHz Step-Down Converter SOP-8
Manufacturer Product Number
MP2355DN-LF-Z
Description
MP2355DN-LF-Z 3A, 23V, 380KHz Step-Down Converter SOP-8
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP2355 is a step-down regulator with a built in internal Power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation.
Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. Adjustable soft-start reduces the stress on the input source at turn-on. In shutdown mode the regulator draws 20µA of supply current.
The MP2355 uses a minimum number of readily available external components to complete a 3A step-down DC to DC converter solution.
Product Features
• Programmable Soft-Start
• 100mΩ Internal Power MOSFET Switch
• Stable with Low ESR Output Ceramic Capacitors
• Up to 95 percent Efficiency
• 20µA Shutdown Mode
• 3A Output Current
• Wide 4.75V to 23V Operating Input Range
• Fixed 380KHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Under Voltage Lockout
Product Applications
• Distributed Power Systems
• Battery Chargers
• Pre-Regulator for Linear Regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2355DN-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 1.222V |
| Voltage - Output (Max) | 20.7V |
| Current - Output | 3A |
| Frequency - Switching | 380kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | MP2355 |

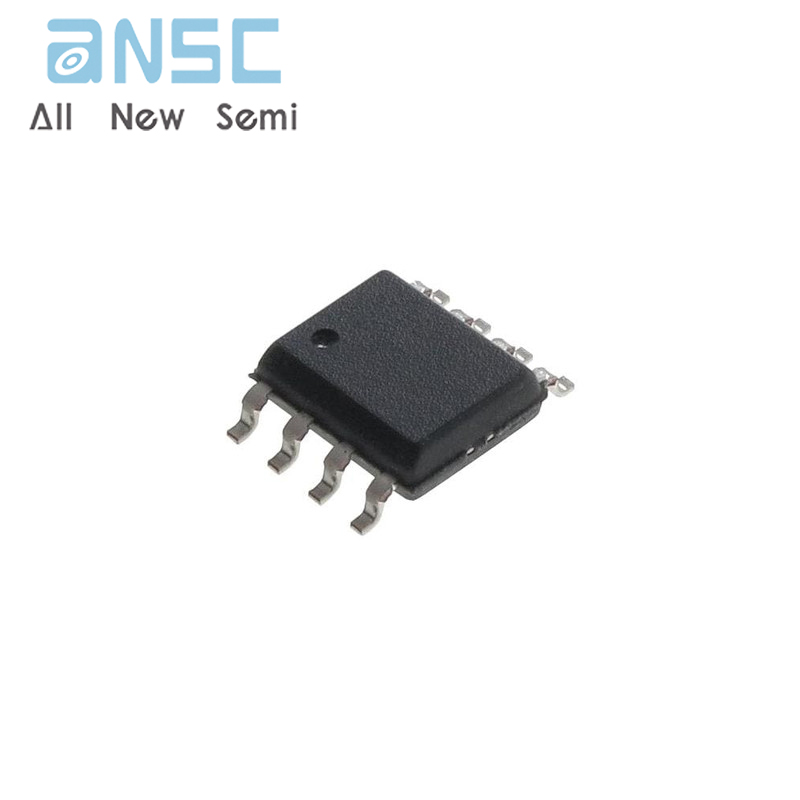

Product Photos
