Hot-selling and scarce LT3050EMSE-PBF 100mA,Low Noise Linear Regulator MSOP12 spot stock

Product Descriptions

The LT®3050 is a micro-power, low noise, low dropout  voltage (LDO) linear regulator. The device supplies 100mA  of output current with a dropout voltage of 340mV. A 10nF  bypass capacitor reduces output noise to 30μVRMS in a  10Hz to 100kHz bandwidth and soft-starts the reference.  The LT3050’s ±45V input voltage rating combined with its  precision current limit and diagnostic functions make the IC  an ideal choice for robust, high reliability applications.

A single resistor programs the LT3050’s current limit, accurate  to ±5% over a wide input voltage and temperature range.  A single resistor programs the LT3050’s minimum output  current monitor, useful for detecting open-circuit conditions.  The current monitor function sources a current equal to  1/100th of output current. A logic FAULT pin asserts low if  the LT3050 is in current limit, operating below its minimum  output current (open-circuit) or is in thermal shutdown.

The LT3050 optimizes stability and transient response  with low ESR ceramic capacitors, requiring a minimum  of 2.2μF. The LT3050 is available as an adjustable device  with an output voltage range down to the 0.6V reference.  The LT3050 is available in the thermally-enhanced 12-Lead  3mm × 2mm DFN and MSOP packages.

Product Features

n Output Current: 100mA

n Dropout Voltage: 340mV

n Input Voltage Range: 1.6V to 45V

n Programmable Precision Current Limit: ±5%

n Programmable Minimum IOUT Monitor

n Output Current Monitor: 1/100th of IOUT

n Fault Indicator: Current Limit, Minimum IOUT or Thermal Limit

n Low Noise: 30μVRMS (10Hz to 100kHz)

n Adjustable Output (VREF = VOUT(MIN) = 0.6V)

n Output Tolerance: ±2% Over Line, Load and Temperature

n Stable with Low ESR, Ceramic Output Capacitors (2.2μF minimum)

n Shutdown Current: <1μA

n Reverse-Battery, Reverse-Output and Reverse-Current Protection

n Thermal Limit Protection

n 12-Lead 3mm × 2mm DFN and MSOP Packages

Product Applications

n Protected Antenna Supplies

n Automotive Telematics

n Industrial Applications (Trucks, Forklifts, etc.)

n High Reliability Applications

Product Specification

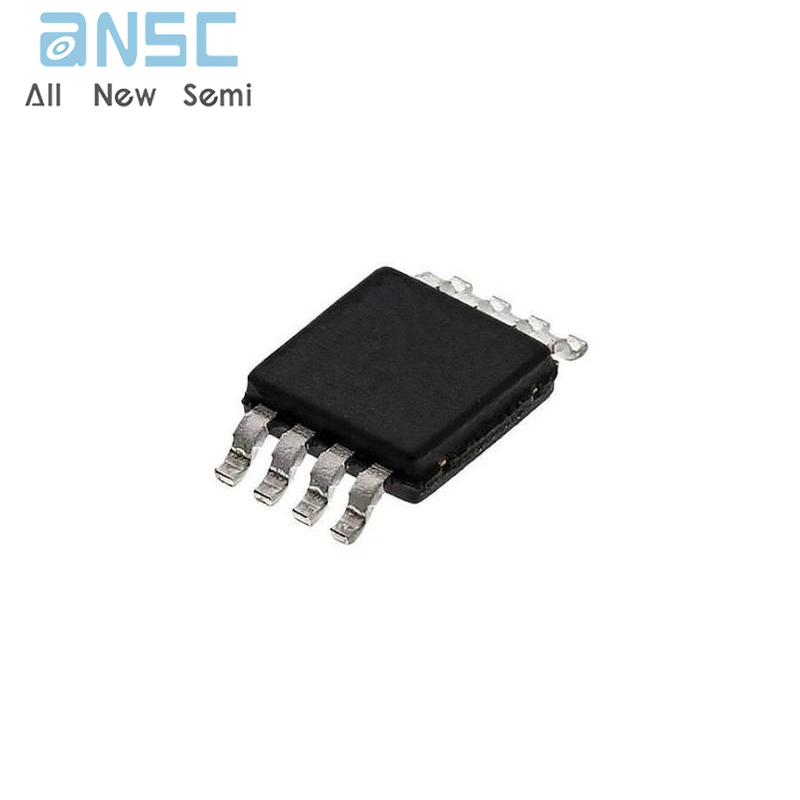

Product Photos

For more product information, please download the PDF
