MC74HCT174AD Hex D Flip-Flop with Common Clock and Reset with LSTTL Compatible Inputs SOP16 spot stock

Product Descriptions

The MC74HCT14A may be used as a level converter for interfacing TTL or NMOS outputs to high−speed CMOS inputs.

The HCT14A is useful to “square up” slow input rise and fall times. Due to the hysteresis voltage of the Schmitt trigger, the HCT14A finds applications in noisy environments.

Product Features

• Output Drive Capability: 10 LSTTL Loads

• TTL/NMOS−Compatible Input Levels

• Outputs Directly Interface to CMOS, NMOS, and TTL

• Operating Voltage Range: 4.5 to 5.5 V

• Low Input Current: 1.0  A

• In Compliance With the JEDEC Standard No. 7.0 A Requirements

• Chip Complexity: 72 FETs or 18 Equivalent Gates

• NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free and are RoHS Compliant

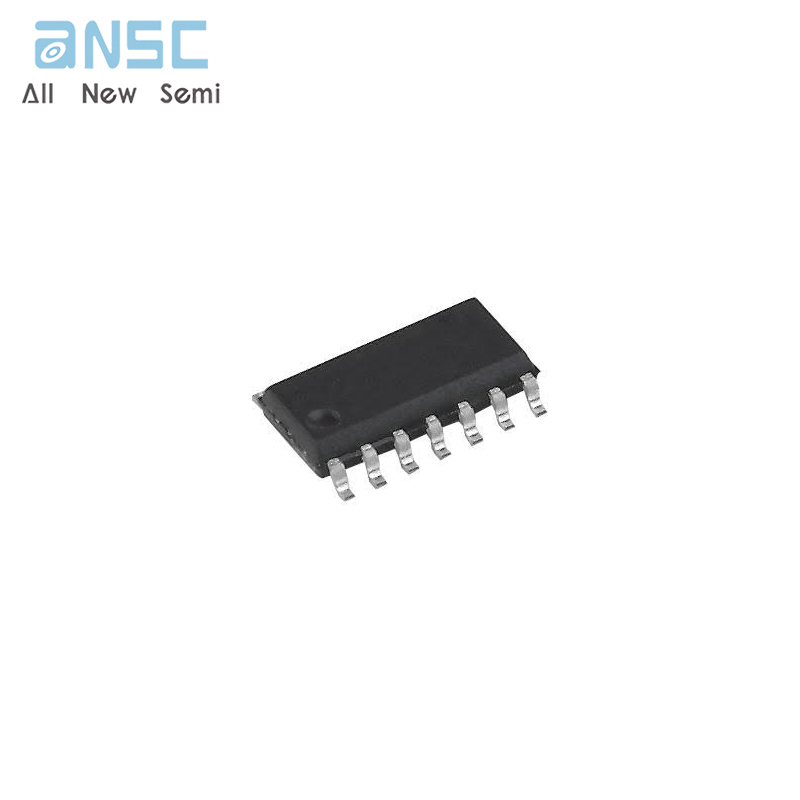

Product Photos

For more product information, please download the PDF
